Three Color Pad Printing Machines
Automatic Contact Lens Pad Printing Machine by 3-Color
- Features
- The automatic three-color contact lens pad printing machine features a robust configuration with triple independent pad units and individual HMI panels, ensuring maximum stability and operational flexibility for multi-color printing.
Description
Engineered for medical-grade production, this three-color contact lens pad printer integrates automated vacuum suction loading, smart cliche/pad lifecycle tracking, a particle-free electrostatic dusting device, and an industrial HEPA filter enclosure.
Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.
Three-color automatic contact lens pad printing machine features
- Exclusive patented ink-scraping system (Patent No. M311585)
Utilizes independent dual-axis ink-scraping, featuring a built-in spring mechanism to absorb cliche tolerances and adjustable cylinder air pressure.
- Triple-color independent parameter configuration
Allows precise printing cycles and advanced operational parameters to be set separately on each of the three pad printing units.
- 10.1-inch premium color TFT HMI touchscreen
Features an intuitive digital interface with a 65,536-color touch panel for streamlined multi-color control and instant on-screen malfunction messaging.
- Comprehensive I/O status display
Provides a full-system visual mapping of all inputs and outputs to facilitate rapid diagnostics and real-time tracking.

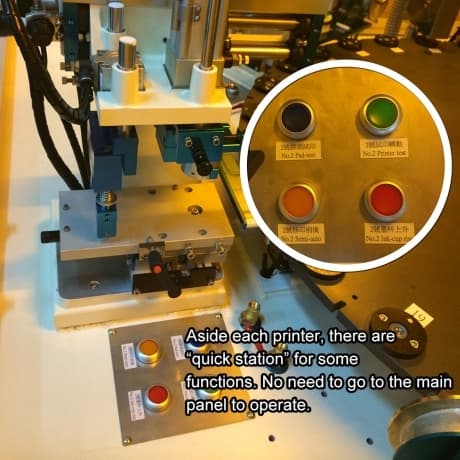

- Independent operation panel for each printing unit
Each of the three pad printers is equipped with its own dedicated control panel to maximize production flexibility and setup speed.

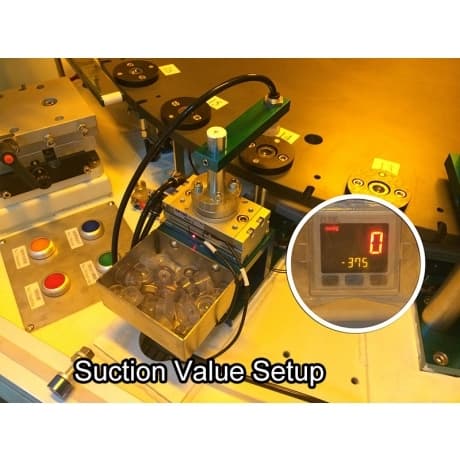

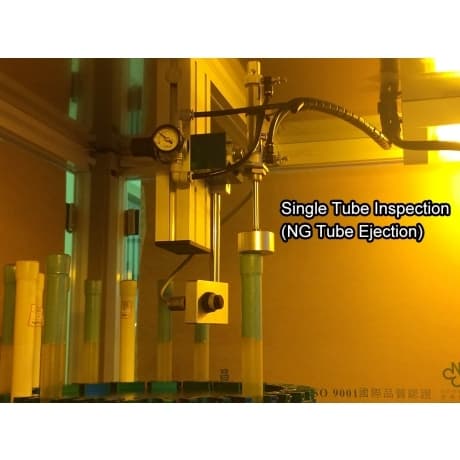

- High-capacity vacuum suction feeding and ejecting system
Integrates automated vacuum pickup and unloading mechanisms, pre-set to accommodate up to 20 product storage tubes simultaneously.

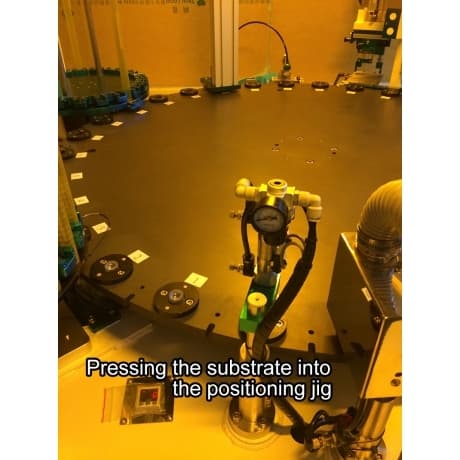

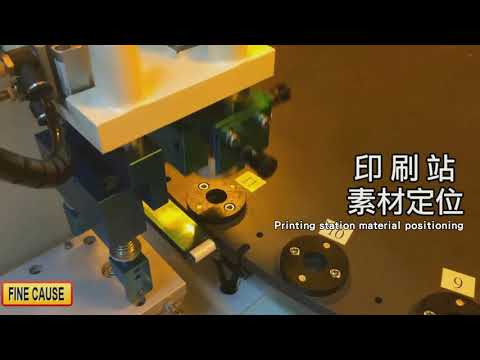

- Precision mechanical positioning and electrostatic dusting
Combines a specialized pressing/positioning device with an electrostatic dedusting module to ensure an ultra-clean, particle-free printing substrate.
- Programmable automated pad cleaning device
Features an automated tape-cleaning cycle that can be customized to deploy and clean the printing pads after a specified number of impressions.

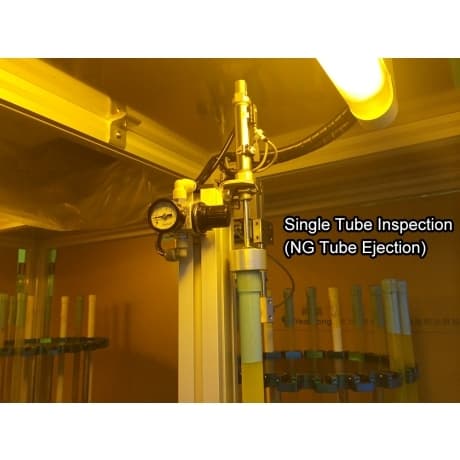

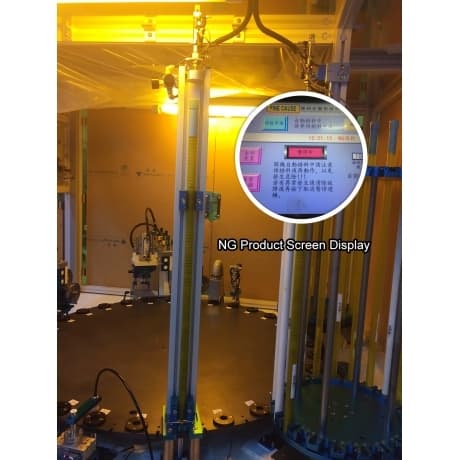

- Smart NG reject system with optional CCD vision integration
Includes an automated defective product rejection device, seamlessly compatible with optional CCD cameras for high-precision inline quality inspection.
- Electronic air pressure safety sensor
Monitors pneumatic stability in real time, automatically halting all machine operations if air pressure drops below the pre-set threshold.

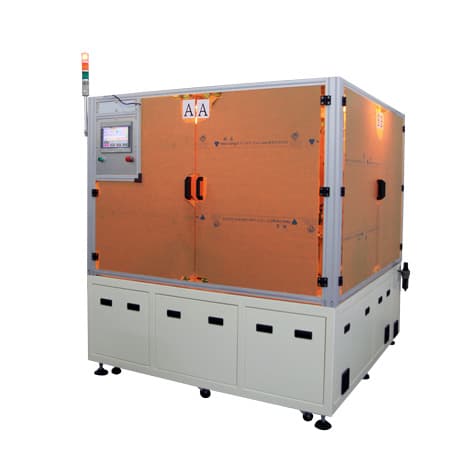

- Full dust-proof enclosure with premium 8mm acrylic panels
Enclosed within heavy-duty 8mm acrylic sheeting to prevent contamination and maintain a stable, clean-room style environment for medical-grade printing.
- Industrial-grade HEPA filtration system
Delivers superior air purity within the machine enclosure, certifying 99.99% filtration efficiency at 0.3 µm and 99.999% efficiency at 0.12 µm.
Specifications
| Model | FC-350E |
|---|---|
| Color | 3 |
| index Plate size(mm) | 800 |
| Cycles/min | 24 Pcs |
| Machine Size (cm) | L:200 W:200 H:250 |
| Weight | 1200KG |
| Pressure(kg/cm2 psi) | 4~6 |
| Power (A)Ampere | 10 |
| Voltage (V) | 220V |
| Max. Printing Area(mm) | 55 |
| Max. Height of Printed Object(mm) | 180mm |
| Height -Pad Stand to Steel Plate(mm) | 100 |
| Max. Steel Plate Size(mm) | L:200 W:90 H:10 |
