Two Color Pad Printer Machine
Automatic contact Lens pad printer
- Features
- The fully automatic two-color contact lens pad printing machine features a one-piece, L-shape cast iron body that ensures a robust structure and maximum stability.
Description
Driven by a genuine Japanese PLC programmable controller with a standardized control system, the pad printer allows precise lifecycle tracking for both printing pads and steel plates, automatically triggering a scrolling marquee alert once the pre-set count is reached.

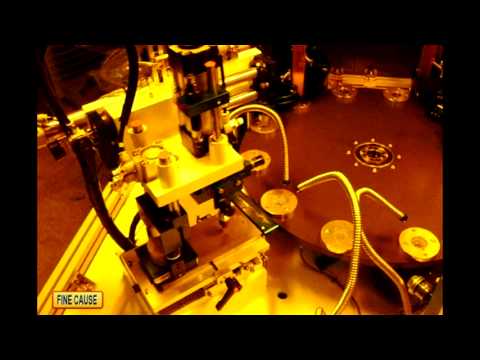

Automatic contact Lens pad printer-FC-210D
Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.
Automatic contact lens pad printing machine features
- Exclusive patented ink-scraping mechanism (Patent No. M311585)
Utilizes dual-axis independent scraping, with built-in springs to absorb steel plate tolerances and adjustable cylinder pressure.
- One-piece L-shape cast iron body
Provides a robust, heavy-duty structural foundation that ensures printing stability and effortless operation.
- Independent parameter configuration
Allows individual setting of printing cycles and operational parameters for each standalone unit.
- 10-inch premium color TFT touchscreen
Features an intuitive HMI supporting 3 built-in languages (Traditional Chinese, English, and Indonesian).
- Comprehensive I/O sensor mapping & malfunction marquee
Displays full input/output statuses with precise sensor location mapping. Real-time error alerts are broadcast via a scrolling marquee for rapid troubleshooting.
- Electronic pneumatic pressure sensor
Automatically triggers an alarm and halts operation if air pressure drops below the optimal safety threshold.
- Advanced PLC programmable controller (100% made in Japan)
Equipped with a standardized, industry-proven control system. Features a lifecycle counter for both pad and steel plate usage, automatically triggering alerts upon reaching pre-set thresholds.
- Full dust-proof enclosure & premium 8mm acrylic safety guard
Fully enclosed structure engineered to maintain a pristine, contaminant-free printing environment, covered by heavy-duty 8mm acrylic panels for optimal visibility and safety.
- Industrial HEPA filtration system
Achieves ultra-clean air filtration standards with 99.99% efficiency at 0.3 µm and 99.999% efficiency at 0.12 µm.
- Smart jig sorting system (Machine No.1 & No.2)
Configured for high-efficiency production lines, dedicated to printing odd-numbered jigs on Machine No. 1 and even-numbered jigs on Machine No. 2.
Specifications
| Model | FC-210D |
|---|---|
| Color | 2 |
| index Plate size(mm) | 800 |
| Cycles/min | 24 Pcs |
| Machine Size (cm) | L:120 W:120 H:249 |
| Weight | 800 Kgs |
| Pressure(kg/cm2 psi) | 4~6 |
| Power (A)Ampere | 10 |
| Voltage (V) | 220V |
| Max. Printing Area(mm) | 55 |
| Max. Height of Printed Object(mm) | 180mm |
| Height -Pad Stand to Steel Plate(mm) | 100 |
| Max. Steel Plate Size(mm) | L:200 W:90 H:10 |
