Laser Engraving Machine
Laser Engraving Machine (Contact Lens Laser Engraving Machine) Custom Laser Engravers
- Features
- Laser Engraving Machine uses a Japanese-made probe sensor for accurate height and depth measurement.
- With high-speed laser engraving lens imported from Germany, the steel plate engraving is fine.
Description
FineCause has a deeper understanding of the precise graphic laser engraving of contact lens steel plates; and then developed and designed this model specifically for the new trend of contact lenses.
Laser Engraving Machine for Contact Lens Cliche
Laser Engraving Machine (Contact Lens Laser Engraving Machine) Custom Laser Engravers
FineCause develops, designs, and manufactures this model that is specially for the new trend of the contact lenses.
-
Automate the optimal laser engraving height.
-
Mechanical depth measurement. Adopt probe sensors made in Japan to ensure the accurate measurement of height and depth.
-
With high-speed laser engraving lens imported from Germany, the steel plate engraving is fine.
-
XYZ 3 axis servo - XY axis: automatically move the steel plate to laser engraving position; Z axis: automatically set the height of laser engraving lens according to the thickness of the steel plate.
-

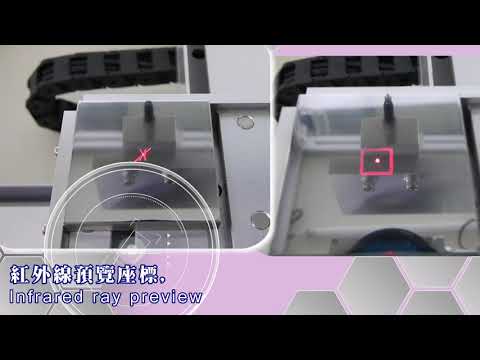

Preview coordinates by infrared.
■ Operation process:
-
Place the steel plate on the magnetic platform.
-
Set the laser engraving pattern position.
-
Automatically set the Z axis laser engraving height after measuring the thickness of the steel plate with one key.
-
Set the depth measurement position of the pattern after laser engraving.
-
Set the required depth of laser engraving.
-
Start laser engraving.
-
Laser engraving completes and depth measurement finishes.
Specifications
| Model | B001FAPL02-V1 |
|---|---|
| Laser Engraving Machine for Contact Lens Cliché | |
| Voltage | Single phase 220V/50~60Hz ※Need to add ground wire |
| Table size | 200*250 /mm |
| Maximum working position | 200*300 /mm |
| Maximum laser engraving area | 100*100 /mm |
| Maximum working height | 200 /mm |
| Machine size | 800*1100*1736 /mm |
| Laser lens | German ultra-high speed galvanometer scanner system |
| Cooling method | Air cooling |
| Ambient temperature | 10-40℃ |
| Laser wattage | 30W |
| Laser wavelength | 1064±5nm |
| Frequency adjustable range | 1-600KHz |
| Power adjustable range | 1-100% |
| Maximum pulse energy | 0.8mJ |
| Software | MarkingMate |
| Pulse width | 200ns |
| Spot diameter | 0.03mm |
| Beam quality | 1.5M² |
| Power consumption | < 2kw |
| Available format | DWG, DXF, AI, PLT, BMP, TIF, CMP, CAL, CLP, CUR, EPS, EMF, FPX, ICO, WMF, PSD, PNG, JPG, TGA, PCX, etc. |
