Two Color Pad Printer Machine
Contact Lens pad printing machine by two-color
- Features
- Two-color automatic contact lens pad printing machine with dual independent units, Panasonic PLC, and smart pad/cliche lifecycle alarms for precise production.
Description
Contact lens pad printer has de-taping device, set the printing q'ty, when reaching the number, the machine starts the de-taping function. auto alarm when q'ty reached.suction loading/suction ejecting - max. 20 product tubes.
Automatic Pad Printing Machine/2-Color Servo Ink Cup Pad Printer-SC-201M

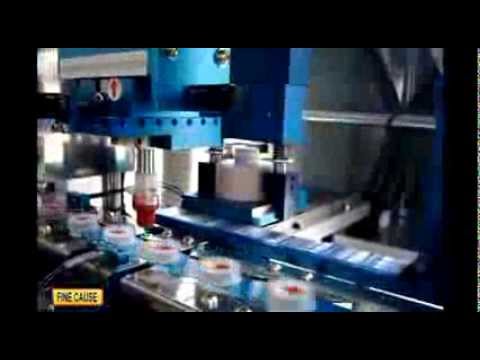

Contact Lens pad printing machine
Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.
Two-color automatic contact lens pad printing machine features
- Exclusive patented ink-scraping mechanism (Patent No. M311585)
Engineered with our proprietary design to ensure precise, consistent doctoring performance and long-lasting cliche life.
- Dual independent pad printing units
Consists of two individual pad printers, allowing operational parameters and configurations to be set independently for each unit.
- 10-inch premium color TFT HMI touchscreen
Features an intuitive digital interface with a 65,536-color touch panel for streamlined control and real-time malfunction alerts.
- Comprehensive I/O sensor status monitoring
Provides a full-status visual display of all inputs and outputs across the system for effortless diagnostics and tracking.
- Dual independent operating screens
Each printing unit is equipped with its own dedicated HMI screen to optimize operational flexibility on the production line.
- Advanced Panasonic PLC programmable controller
Utilizes a genuine Japanese control system with industry-proven, standardized programming for high-speed, reliable automation.
- Smart pad and cliche lifecycle alarms
Allows users to pre-set exact usage limits for both printing pads and cliches, automatically triggering an alarm once thresholds are reached.
- Vacuum suction loading and unloading system
Equipped with a high-efficiency vacuum suction pickup and ejection mechanism that accommodates up to 20 product tubes simultaneously.
- Precision mechanical clamping and electrostatic dedusting
Integrates an advanced pressing and positioning device alongside an electrostatic dusting module to ensure a pristine, particle-free printing surface.
- Automated pad cleaning (De-taping) cycle
Features a programmable tape-cleaning device that automatically activates after a pre-set number of printing cycles to keep the pads free of residue.
- Smart reject system with optional CCD vision inspection
Includes an automated NG (not-good) product ejecting device. Can be seamlessly integrated with an optional CCD camera system for advanced quality control inspection.
- Electronic pneumatic pressure sensor
Monitors air supply in real time, automatically halting the machine and alerting operators if system pressure drops below safety thresholds.
- Full dust-proof enclosure & premium 8mm acrylic guard
The entire machine is fully enclosed within heavy-duty 8mm acrylic panels to maintain a clean-room style environment while ensuring operator safety.
- Industrial HEPA filtration system
Delivers medical-grade air purity within the enclosure, achieving 99.99% efficiency at 0.3 µm and 99.999% efficiency at 0.12 µm.
- Intelligent jig sorting logic
Optimized for high-throughput production lines, routing odd-numbered jigs to Printer 1 and even-numbered jigs to Printer 2.
Specifications
| Model | SC-201M |
|---|---|
| Color | 2 |
| Cycles/Min | 20 Pcs |
| Machine Size (cm) | L:163 W:108 H:193 |
| Weight | 1000KG |
| Pressure(kg/cm2 psi) | 4~6 |
| Power (A)Ampere | 20A |
| Voltage (V) | 220V |
| Max. Printing Area(mm) | 55 |
| Max. Height of Printed Object(mm) | 180mm |
| Height -Pad Stand to Steel Plate(mm) | 100 |
| Max. Steel Plate Size(mm) | L:200 W:90 H:10 |
