FINE CAUSE Pad Printers Welcome the Smart Revolution! 14 Core Advantages

Under the waves of industrial automation and smart manufacturing, traditional pneumatic pad printing machines have long faced persistent line issues—unstable air pressure, speed fluctuations, and aging mechanical components. These factors inevitably lead to deviations in printing alignment, relying heavily on the frequent manual adjustments of experienced technicians.

As a pioneer in industrial printing machinery R&D, FINE CAUSE has officially injected smart technology into its Sealed Ink Cup Pad Printing Machine Series. By deeply integrating our newly developed "Electric Windproof Safety Door" with "Four Core Invention Patents," we bring global buyers exactly what they have been anticipating: Now, FINE CAUSE's "Standard Ink Cup Models" come standard with 14 revolutionary technical advantages! No matter what type of production process you handle, you can experience extreme precision with zero consumable waste and zero manual adjustments.

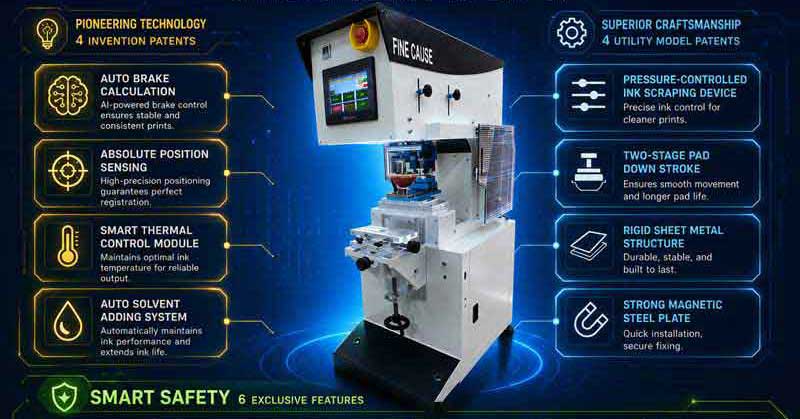

💡 Cutting-Edge Technology | 4 Newly Upgraded "Invention Patents"

Through breakthrough R&D in hardware and software, FINE CAUSE has successfully secured four invention patent certifications, thoroughly eradicating the chronic issues of traditional pneumatic machinery to pioneer a new era of smart pad printing:

① Pad Printer with Self-Calculating Pneumatic Braking (Invention Patent No. I 906077)

Long-term use of traditional pad printers often results in unstable braking, loud impact noises, misaligned positioning requiring recalibration, and regular replacement of aged hydraulic shock absorbers. FINE CAUSE's patented technology ensures that the machine no longer relies on "positioning screws" or "shock absorbers." Featuring a built-in "Pneumatic Braking AI," every single stop is the result of the newest, most precise calculations:

• Auto-Calculating Optimal Stopping Point: The system automatically computes the ideal braking time and distance based on the running speed of each cycle.
• High Environmental Adaptability: Operates flawlessly, completely unaffected by shifts in speed or fluctuations in factory air pressure.
• Zero Noise & Maintenance-Free: Eliminates impact noises during operation; fully self-adjusting with zero consumable wear.

② Pad Printer with Absolute Positioning Sensing (Invention Patent No. I 924482)

Standard pneumatic pad printers can rarely escape the physical limitation of "when speeds vary or pressure shifts, the stop position follows." FINE CAUSE's second patent enables the machine to sense its exact position in real-time, automatically correcting itself via precision sensors and advanced algorithms. Positioning accuracy reaches ± 0.01 mm, ensuring absolutely zero drift even during continuous 24-hour production runs:

• Maintains perfect alignment even during speed fluctuations.
• Ensures every printing cycle lands precisely on the exact same coordinate.

③ Constant Temperature Ink Cup Pad Printer (Optional) - (Invention Patent No. I 762245)

• Smart Constant Temperature Module: Explicitly engineered to control the temperature of the pad printing cliché (steel plate), ensuring the ink maintains consistent warmth and optimal fluidity on the plate, completely eliminating environment-induced temperature variances from impacting print quality.
• Experimental data demonstrates that higher ink temperatures yield lower ink viscosity and accelerated evaporation. By raising the ink temperature correctly, the pad's ink pickup increases, significantly enhancing ink transfer capabilities, ink release properties, and markedly resolving burr and hair-lining issues.

④ Pad Printer with Controlled Ink Viscosity (Optional) - (Invention Patent No. I 889206)

• Auto-Solvent Feeding System: The system intelligently detects, automatically blends, and precisely replenishes the solvents lost due to evaporation. This continuously maintains an exact ink viscosity over long cycles, eliminating the hassle of manual downtime for ink measurements.
• Adds minor doses multiple times, stabilizing ink concentration for up to 24 continuous hours.
• Automatically dispenses based on print count, preventing ink thick-outs or premature drying.
• Dripping frequencies and fluid dosages can be micro-adjusted on demand for supreme flexibility.

⚙️ Exceptional Craftsmanship | 4 Classic "Utility Model Patents"

Beyond our advanced smart brain, FINE CAUSE's craftsmanship in mechanical structuring is exceptionally robust. These four classic utility model patents significantly bolster the durability and operational flexibility of our standard models:

• Adjustable Pressure Doctor Blade Mechanism (Utility Model No. M311585): Utilizing a magnetic ink cup cover combined with a ring blade ink cup design, this innovative micro-adjustable doctor blade device ensures completely uniform pressure distribution across the cliché plate, vastly extending the lifespan of both the steel plate and the ink cup's doctor ring.
• High-Force Magnetic Plate Clamping Device (Utility Model No. M648609): A magnetic-mount plate fixation design that entirely bypasses tedious traditional screw-locking procedures. This allows the assembly line to execute plate changeovers or adjustments within mere seconds.
• Two-Speed Pad Down-Stroke Control: Flawlessly replicates Master craftsmanship; the downward stroke deploys a "fast-approach then slow-buffer" two-stage velocity layout. This preserves high-speed output while ensuring the silicone pad gently conforms to the workpiece without image distortion.
• Powder-Coated Computerized Sheet Metal Integrated Chassis (Utility Model No. M453283): A highly rigid, anti-vibration computerized sheet metal integrated housing module that maintains zero body resonance even under high-speed operations, guaranteeing long-term structural stability and rugged durability.

🔒 Intelligent Safety | Newly Upgraded Electric Safety Door & 6 Exclusive Features

When it comes to operational ergonomics and industrial safety, FINE CAUSE's newly upgraded standard models come outfitted with flagship-level features:

• Latest Upgrade: Electric Windproof Safety Door
  A fully enclosed safety barrier that prevents accidental operator contact during operation while safeguarding the ink from ambient micro-dust contamination. The system is highly adaptable: automatically closes during cycling and automatically opens when the ink cup rises, while also supporting convenient manual toggling.
• Pneumatic Fail-Safe Protection (Anti-Drop Pad Mechanism): A heavy-duty safety milestone! In the unfortunate event of a factory power outage, loss of air pressure, or manual air shut-off, the main lift cylinder instantly locks up, ensuring the silicone pad absolutely will not drop. This perfectly safeguards expensive printing molds and line operators.
• Real-Time Air Pressure Monitoring & Alarm: Should line pressure fluctuate abnormally or drop below safety margins, the system triggers an immediate alarm and halts operation, blocking defective prints from slipping down the line.
• 7-Inch Intuitive Touchscreen Interface: A full-color, highly visual Human-Machine Interface (HMI) displaying all parameters clearly at a glance, allowing novice users to comfortably operate and tune the machine in a short duration.
• Remote IoT WiFi Connection APP (Optional): Step into digital management; monitor machine utilization rates, production statistics, and alarm histories remotely via a smartphone or tablet app.
• Plate-Thickness Adaptor (Optional): Exceptional process compatibility, allowing the assembly line to swiftly switch between economical thin steel plates and heavy-duty thick steel plates with a one-key setup.

🎯 Sealed Ink Cup Design: High Efficiency, Ink Saving, and Long-Term Stability

FINE CAUSE's standard smart sealed ink cup pad printing machines utilize enclosed ink cup architectures and proprietary patented technologies, significantly amplifying print quality and alignment while proving exceptionally cost-efficient for your production:

• Minimal Ink & Solvent Evaporation: The sealed design locks in long-term ink viscosity stability, drastically trimming down consumable waste.
• Optimized Workplace Environment: Effectively reduces volatile organic chemical odors within the facility, helping enterprises foster a healthier, friendlier work environment for their workforce. (If your company is actively pursuing absolute environmental sustainability and zero-pneumatic carbon emissions, please feel free to inquire about FINE CAUSE's premium "All-Electric Pad Printer Series.")

From micro-electronic components and automotive interior buttons to medical equipment, cosmetics packaging, and various challenging complex curved surfaces, FINE CAUSE's standard smart sealed ink cup pad printers deliver highly efficient, stable, and adjustment-free precision printing solutions for your assembly line. Contact the FINE CAUSE technical specialist team today to receive a one-on-one workpiece evaluation and process assessment!
