Single Color Pad Printer
Pad Printer | Intelligent Pad Printing Machine
- Features
- AI Smart Pad Printing Machine – Honored with:
- 4 Invention Patents
- 4 Utility Model Patents
- 6 Exclusive Features
- 3 year warranty
Description
The FC-161ANC is a precision ink cup pad printing machine for logos, text and markings on plastic, metal, glass and ceramic products, including curved and irregular surfaces. Patented self-computing braking and absolute positioning technologies support stable, repeatable operation. Designed and manufactured in Taiwan with a 3-year warranty. Contact us with your product material, print size and production requirements for a suitable configuration and quotation.
FC-161ANC Pad Printer | Semi-Automatic Ink Cup Model
Precision Evolution · Leading the Field. This AI-powered pad printing machine combines 14 patented and exclusive technologies for printing control, safety and convenient operation.
- Cutting-Edge Technology (4 Invention Patents): Auto-Calculating Braking ． Absolute Positioning Sensing ． Smart Constant Temperature Module ． Auto-Solvent Feeding System

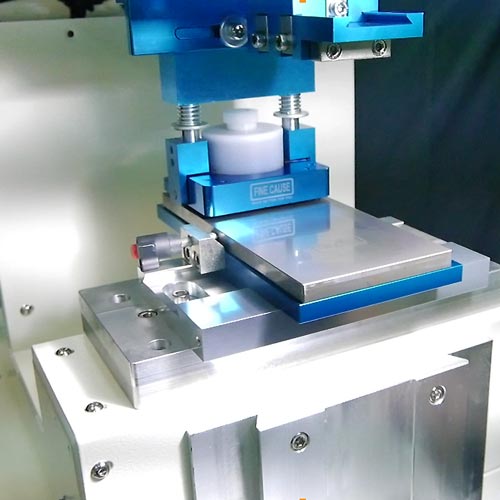

- Exceptional Craftsmanship (4 Utility Model Patents): Adjustable Pressure Doctor Blade ． Two-Speed Pad Down-Stroke ． High-Rigidity Sheet Metal Module ． High-Force Magnetic Cliché Base

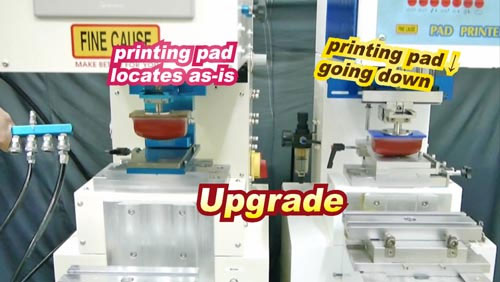

- Intelligent Safety (6 Exclusive Features): Real-time Air Pressure Monitoring & Alarm ． 7-Inch Intuitive Touchscreen Interface ． Remote IoT WiFi Connection APP ． Automatic Windproof Safety Door ． Plate-Thickness Adaptor ． Pneumatic Fail-Safe Protection
Standard Model · Practical Value: Flexible pad printing equipment for product marking and production needs.
Video Demonstrations

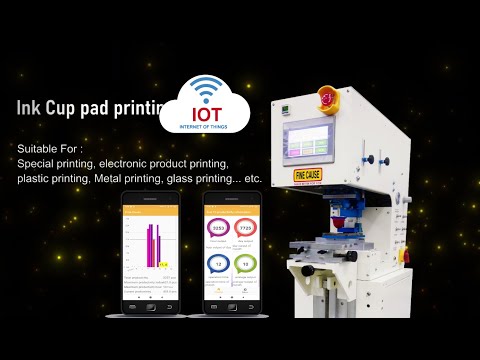

FC-161ANC Pad Printer Demonstration Video
FC-161ANC Pad Printing Machine Operation Video
Pad Printer with AI: Patented Self-Computing Braking & Absolute Positioning Technology
Self-computing pneumatic braking (I906077) and absolute positioning sensing (I924482) calculate braking timing according to operating conditions to help maintain stable stopping positions.
Smart Control & Production Data
- 7-inch touchscreen + PLC: English, Traditional Chinese, Indonesian, Vietnamese and Thai interfaces.
- Recipe memory: Save printing parameters for repeat production and changeovers.
- Production records: View the past 30 days of operating data. Optional Wi-Fi connectivity supports the FINECAUSE production monitoring APP.
Printing Performance
Ink cup diameter / recommended maximum print area:
Ø60 / Ø50mm · Ø90 / Ø75mm · Ø130 / Ø110mm
Evaluate ink cups and multi-color modules according to artwork, fixtures and available mechanical space. For more than three colors, consider the larger 2-series models.
Safety & Convenient Maintenance
- Fault alerts: Air pressure monitoring and on-screen messages assist troubleshooting.
- Maintenance counters: Set pad, plate and production count limits with stop reminders.
- Service access: Clearly marked I/O sensors and an integrated sheet-metal body (M453283).
Peripheral Equipment & Automation Options
Configure slides, indexing tables, vacuum fixtures, flipping or rotating modules, blower stands and thin-plate adapters to suit the process.

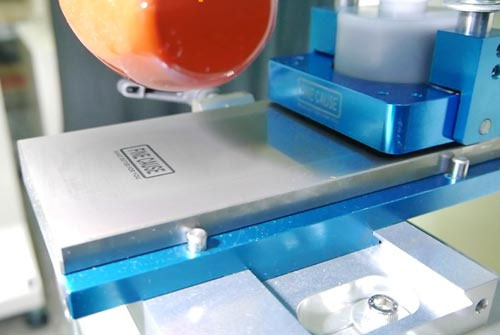

Thermostatic printing (I762245) helps stabilize ink transfer. Laser cross alignment, positioning and suitable fixtures can support evaluated two-color logo applications.
Explore thermostatic pad printing →
Applications & Product Materials
This tampon printing machine can print logos and markings on plastic toys, stationery, electronic housings, metal components, glass and ceramics. Select inks, pads and fixtures according to material and shape, and confirm print quality and adhesion through testing.
Technical Specifications
| Model | Print Colors | Plate Size (mm) | Capacity (pcs/hr) | Machine Dimensions (cm) | Net Weight |
|---|---|---|---|---|---|
| FC-161ANC | 1 Color | L:200 W:90 H:10 | 1,200 ~ 1,800 pcs | L:75 W:45 H:135 | 105 kg |
| Model / Specification | FC-161ANC | FC-191ANC | FC-161CNC (Transverse Squeegee) |
|---|---|---|---|
| Model Description | Single-color ink cup pad printer (Ø60 Ink Cup) |
Single-color ink cup pad printer (Ø90 Ink Cup) |
Single-color ink cup pad printer (Ø60 Ink Cup) |
| Air Pressure (kg/cm²) | 4 ~ 6 | 4 ~ 6 | 4 ~ 6 |
| Current (A) | 3 A | 3 A | 3 A |
| Power Supply (V) | 110 - 220 V | 110 - 220 V | 110 - 220 V |
| Table Size (mm) | 80 × 220 | 80 × 220 | 80 × 220 |
| Rec. Max Print Area (mm) | Ø50 | Ø75 | 170 × 50 |
| Max Substrate Height (mm) | 180 | 180 | 180 |
| Operating Stroke (mm) | Front/Back 125 | Front/Back 125 | Left/Right 160 |
| Pad Base to Plate Clearance (mm) | 100 | 100 | 100 |
| Max Cliche/Plate Size (mm) | 90 × 200 | 120 × 240 | 80 × 350 |
Frequently Asked Questions
1. How do I choose an ink cup size?
Start with artwork dimensions, then evaluate the product curvature and pad. Ø60, Ø90 and Ø130mm ink cups have recommended maximum print areas of Ø50, Ø75 and Ø110mm respectively.
2. Can the FC-161ANC print two colors?
Multi-color modules can be evaluated according to the artwork, fixtures and available space, with laser cross alignment where appropriate. Confirm the configuration for your application.
3. What should I provide when requesting a quote?
Share product photos, material, artwork dimensions, number of colors and expected output so we can evaluate the machine and options.
Fine Cause Co., Ltd. | FINECAUSE Pad Printing Equipment
Planning and manufacturing of semi-automatic, fully automatic and customized printing systems, with technical and after-sales support.
Discuss Your Application & Trial Options
Contact our team to evaluate print quality, output and a suitable configuration. The 14-day machine trial is available in Taiwan; contact us for trial arrangements.
