Pad Printing Machine Automatic Solvent Adding System

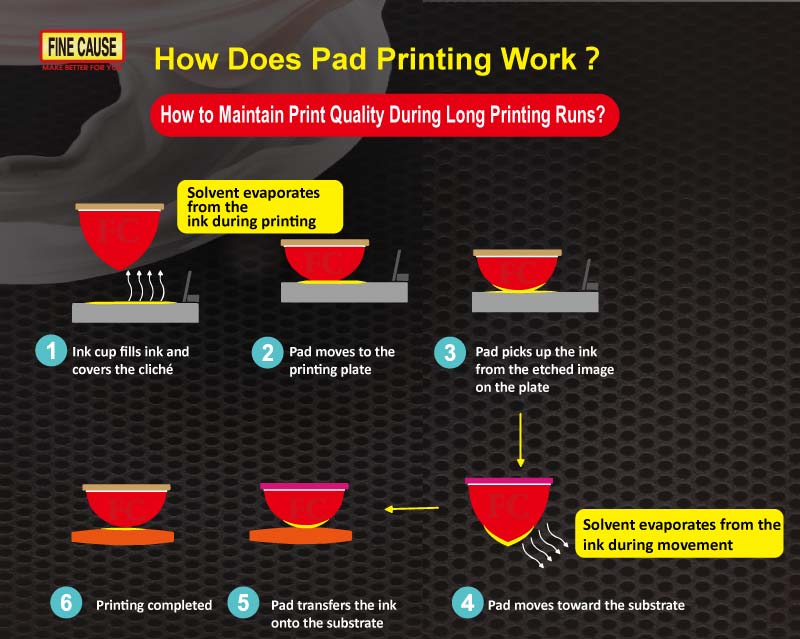

How to Maintain Print Quality During Long Printing Runs?

In fact, the evaporation of ink inside the ink cup is mainly caused by agitation due to the reciprocating motion (molecular collision), while the influence of time alone is relatively minor. By using the number of ink cup movements as the basis for solvent addition, this represents a modern and advanced pad printing technology!"

***Achieve Quality Through Scientific Control***

Pad Printing Machine with Controllable Ink Viscosity –Pad Printing Machine Automatic Solvent Adding System

Smart Production ・ Ink Stability ・ Quality Enhancement

✅ Automatic Solvent Adding Mechanism ｜ ✅ Taiwan Invention Patent: Patent No. I889206 ｜ ✅ Available for New Machines or Retrofit of Existing Machines

Why use an automatic solvent adding mechanism?

• During the pad printing process, the ink gradually thickens due to solvent evaporation over time, causing color deviations, poor printing quality, and increased cleaning frequency.

• In the pad printing process, ink cup’s movement and sloshing make the ink evaporate and thicken, resulting in smaller image sizes, poor printing performance, and more frequent issues such as ink stringing and breakage.

• Manual solvent addition requires stopping the machine, which is time-consuming and inaccurate, ultimately affecting product quality and production efficiency in the long run!



【FineCause New Invention】Smart Solvent Adding System

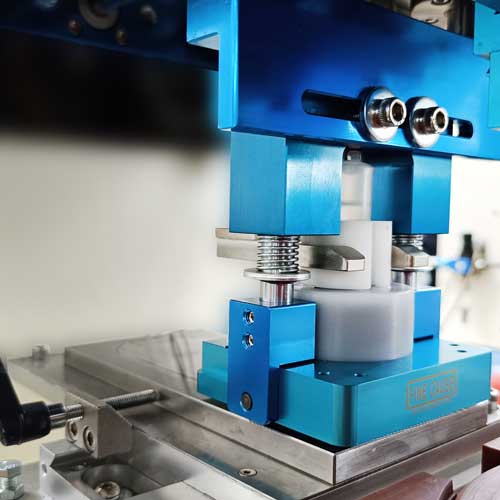

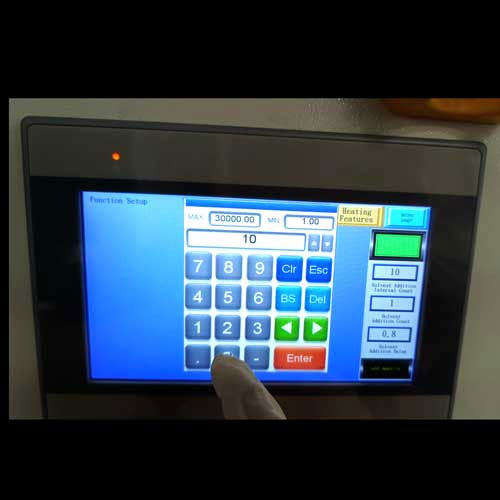

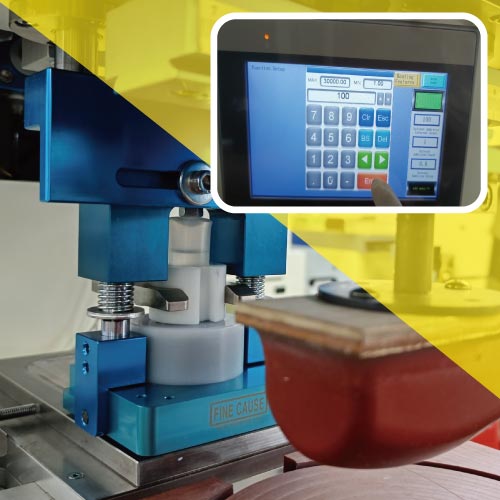

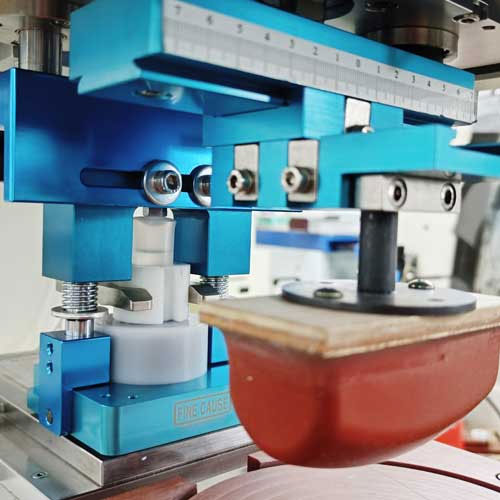

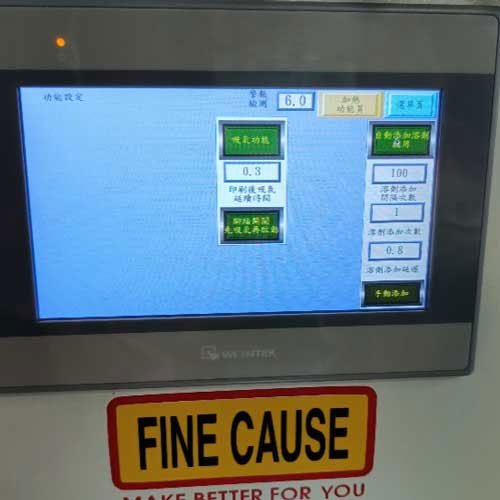

Our newly developed automatic solvent adding mechanism is installed above the ink cup and allows precise control of the timing and amount of solvent added through the HMI. This system keeps the ink at optimal viscosity during production without the need to stop the machine!

Features:

• Adds solvent in small amounts multiple times to maintain stable ink viscosity for up to 24 hours.

• Automatically adds solvent based on the number of prints to prevent thickened or dried ink.

• No need to stop the machine for automatic solvent addition.

• Does not affect production line continuity, boosting uptime and yield rate.

• Compatible with a variety of inks and materials

• Droplet frequency and volume can be fine-tuned as needed—high flexibility.

Works with both new and existing machines

Older models can be retrofitted to extend machine life and enhance functionality.

▲ Officially granted Invention Patent No. I889206

Perfect for:

Manufacturers aiming to improve print quality and production automation

Production lines that require high consistency and minimal downtime

Products demanding high color stability

Long, continuous printing runs that cannot afford interruptions

📌 Made in Taiwan × Patented Technology × Smart Upgrade

Fine Cause focuses on intelligent upgrades for pad printing machines, continuously driving automation and quality stability.

This patented system is a key step toward smart manufacturing.

Click the link to view FineCause's various pad printers, all of which can be equipped with an automatic solvent addition system.....

Specifications
