How to Eliminate Alignment Errors in Multi-Color Curved Surface Printing?

Automated Pad Printing Technology: Overcoming multi-color alignment errors on complex curved surfaces

In modern industrial manufacturing, when products require multi-color overlapping printing, ultra-precise registration (such as over 8 colors, or even up to 36 colors of extreme registration), or when dealing with complex 3D spherical substrates with multi-angle geometries, production lines often face two core challenges:

1. Registration Errors Caused by Cumulative Mechanical Wear: Traditional chain or rotary table conveyors, after continuous downward impacts from up to 36 printing pads across 9 stations, are highly prone to minor mechanical wear and accumulated tolerance errors. An initial misalignment of just 0.05mm will cause the image to blur completely by the final color.
2. Printing Dead Angles on 3D Spherical Geometries: Standard curved surface pad printing can only handle single-curved profiles. When a product requires 720-degree full-surround printing across both latitude and longitude axes, silicone pad deformation and ink stringing usually force conventional automated machinery design to reach its limits.

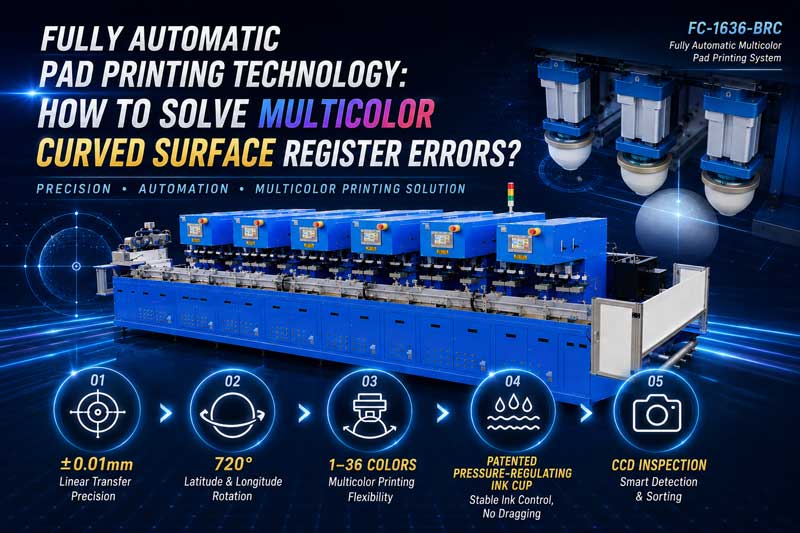

To thoroughly solve these bottleneck issues in precision multi-color printing and complex geometry surface decoration, FineCause has developed a massive 6.3-ton fully automatic multi color pad printing machine system—the FC-1636-BRC Automated Multi Color Pad Printing Line. This heavy-duty system breaks traditional printing limits through three core technological innovations.

FC-1636-BRC Multicolor pad printer/Fully automatic multi color pad printing machine video

Automated machinery design/Automation equipment manufacturing



---

1. Lock in Extreme Precision: Linear Motor Drive & Red Light Cross Laser Alignment

To overcome the cumulative registration errors inherent in traditional chain conveyors, the FINECAUSE FC-1636-BRC fully automatic pad printing machine with multiple stations has undergone a revolutionary upgrade in its transfer system:

• Linear Motor Transfer Technology: Abandoning conventional mechanical drives, object movement is powered entirely by a linear motor pad printer module. This linear conveyor provides not only agile motion but also achieves an exceptional module repeatability of ±0.01mm. Combined with the high precision servo driven pad printer alignment accuracy of ±0.02mm, colors are locked solidly in place from the 1st to the 36th shade without shifting.

• Cross Red Light Laser Alignment Device: Each pad printing unit is equipped with an independent cross red light laser pointer module. During setup or changeovers, operators can quickly perform visual alignment adjustments for multi-color printing, significantly reducing downtime.



---

2. Conquer 3D Curved Surfaces: Servo Rotary Turning & 720-Degree Latitude/Longitude Mechanism

To tackle the most challenging spherical substrates and curved surface automatic pad printer applications, this automated system incorporates an all-around multi axis pad printing machine mechanism:

Curved Surface Pad Printing Technology

• Latitude and Longitude Turning Mechanism: Featuring a patented latitude and longitude turning mechanism driven by a rotary cylinder, this spherical object pad printing machine executes 360-degree circumferential turning across two longitude axes directly on the line, achieving a total 720-degree full 3D surface coverage.

• Movable Servo Rotary Motors (Optional): Equipped with 9 sets of movable servo rotary motors, rotation angles from 0 to 360 degrees can be set digitally via the main touch screen. Furthermore, fixed mounting holes are upgraded with reinforced threads and sleeves to eliminate the risk of thread stripping during frequent reconfigurations.

• Individually Activated Printing Pad Function: In this automated pad printing production line composed of 9 four-color pad printers, each station allows individual activation of printing pads for 1 to 36 color flexibility. Integrated with a dynamic ball position detection display, pads are activated only when a substrate is detected, completely avoiding misfires that cause ink contamination or pad damage.

---

3. Turnkey Integration: High-Output Ink Management & Smart Factory (I.O.T.)

To achieve high output up to 2,200 pcs/hr (for 1~18 colors) on a large-scale industrial ball printing machine system, peripheral integration and smart management are essential:

• Pressure-Regulating Ink Scraping System (Patent No. M311585): Equipped with 36 sets of 60mm sealed ink cups. FineCause's patented technology allows operators to perform fine, digital adjustments to ink cup scraping pressure, significantly minimizing solvent evaporation and ensuring long-term ink viscosity stability.

• Integrated Air Drying & UV Curing System: To prevent color bleeding during high-speed 36-color printing, each station features 4 air drying nozzles (36 nozzles total). Additionally, 6 sets of digitally adjustable industrial UV lamp modules are positioned before the discharge stage to ensure instantaneous ink curing.

• Industrial IoT Smart Factory Benchmark: Featuring a built-in production history function, the system displays 30-day productivity bar charts, runtime, and speed efficiency on the color touch screen. Factory managers can monitor real-time production reports anytime via the FineCause Mobile APP, achieving transparent digital management for custom turnkey printing automation.

(Engineering Note on Substrate Application & NDAs: Due to strict non-disclosure agreements (NDAs) and compliance clauses with our global athletic brand clients, the specific multi-dimple spherical products processed by this 6,300 kg automated system cannot be legally named or displayed. Official videos feature standard table tennis balls with 32 sets of customized rotary jigs for functional demonstration. However, FineCause automation equipment manufacturing capabilities and multi-axis servo precision can be customized for complex geometric substrates, medical devices, automotive components, and cosmetic packaging.)
For more multi-color automatic pad printer case studies, please contact FineCause today.
