Multicolor pad printer/Fully automatic multi color pad printing machine

• With a pressure-regulating ink scraping system (Patent No. M311585), the ink cup scraping pressure can be adjusted easily.

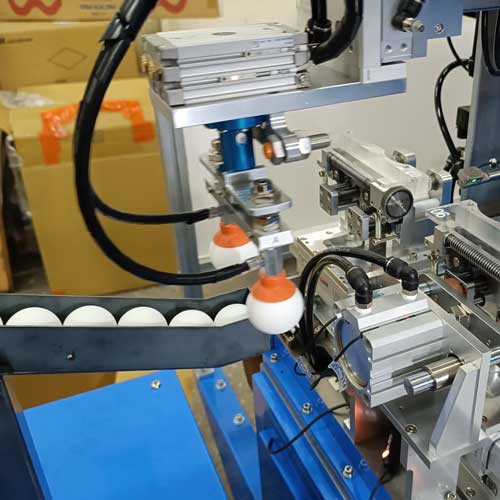

• The 3 stage cylinder for loading and unloading arm allows for quick and efficient object handling, effectively enhancing the productivity of the equipment.

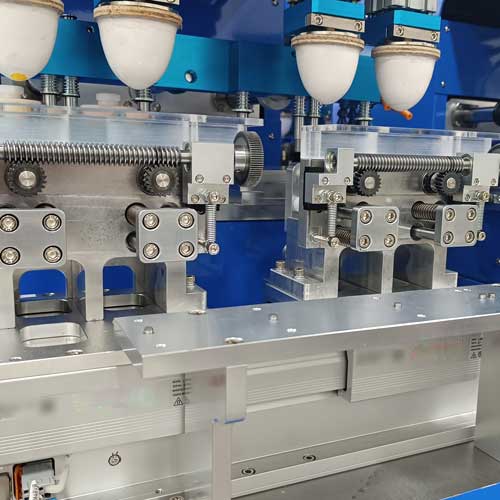

• The object movement utilizes linear conveyor, providing agile movement and precise positioning, with the repeatability ±0.01mm.

• Pad printing machine positioning accuracy: ±0.02mm.

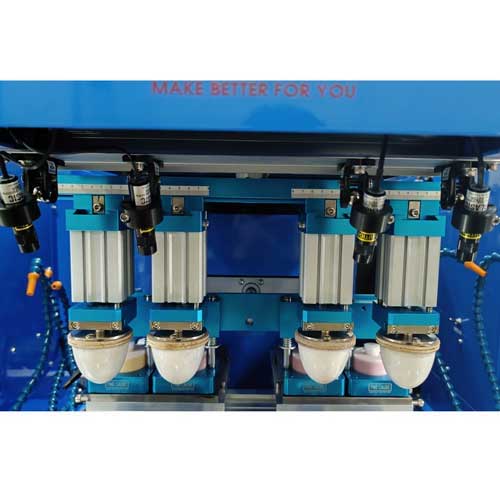

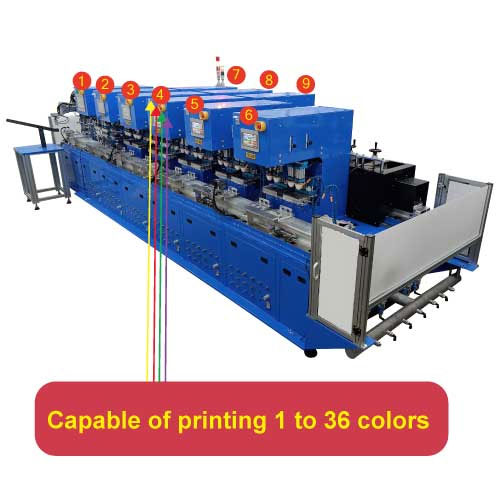

• With 9 sets of 4-color pad printers, each pad printing machine includes 4 ink cup sets and 2 cliche. (The printing pad can be activated individually) for 1~36 color printing options.

  • Each pad printer capable of executing 4 colors, with a total of 9 pad printing machines, allowing for a total of 36 colors to be printed.

• Each set of pad printing machines is equipped with an cross red light laser pointer, making it easier for operators to align for multi-color printing.

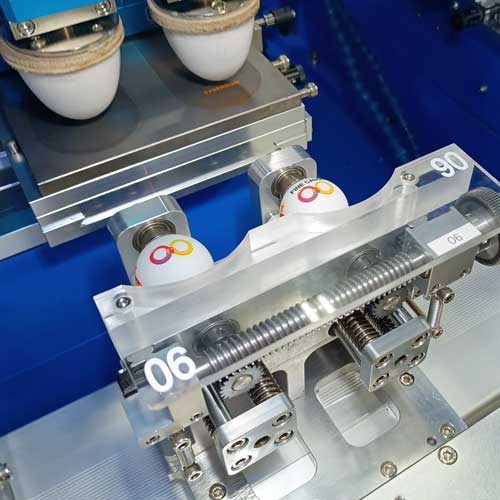

• 32 sets of customized rotary jig for for table tennis.

• 9 sets of movable servo rotary motors. (This is optional function.)

  • Rotary angles from 0 to 360 degrees can be set freely by touch screen. This feature is equipped on 5 sets of 4-color pad printers and 4 sets of UV devices; the servo rotary motors at the printing stations can be freely locked to any station of these 5 pad printing machines for different position printing. <The fixed hole positions (threads/sleeves) are increased to reduce the risk of tooth fracture.>

• 3 stage cylinder for loading and unloading arm (picking up 2 pcs at a time).

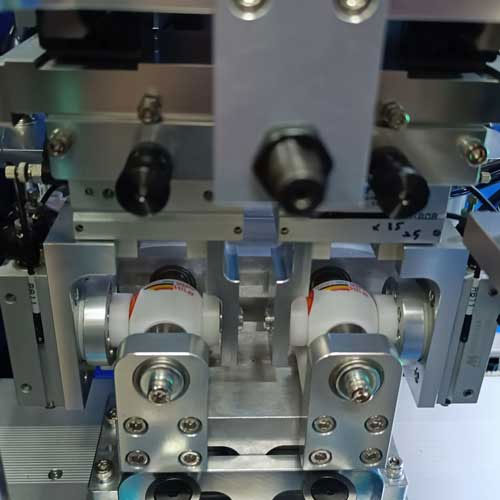

• The latitude and longitude turning mechanism is driven by a servo motor, enabling 360-degree arbitrary angle setting. And the latitude and longitude axes are interchanged using cylinder clamps.

• Each 4-color pad printer is equipped with 4 pcs of air drying device (36 pcs in total).

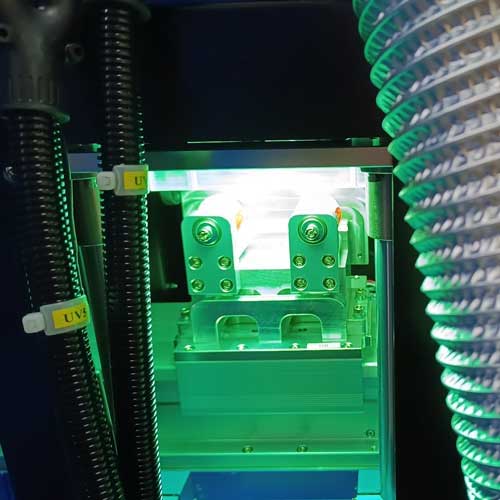

• UV lamp modules (height adjustable) is a total of 6 sets, with digitally adjustable UV power.

• Optimized design for the discharge conveyor belt and ball collection tray.

  • Dual-side discharge allows for separate quantity settings for each side, making it easy to set the discharge amount for each side, facilitating packaging.

• • An emergency stop and pause button are installed at the end of the conveyor belt.

  • With ball position movement status display, printing or processing only occurs when a ball is detected in position.

• Equipped with safety light curtains and safety doors; operation will immediately stop if a person enters the light curtain detection area or opens the safety door.

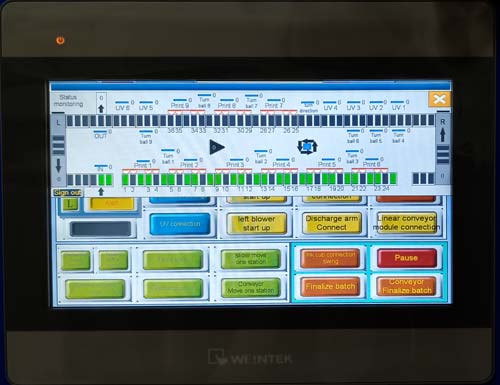

• With 2 sets of 10.0" 16.7M TFT color touch screens and 7 sets of 7.0" 16.7M TFT color touch screens.

  • I/O (input/output) and each sensor locations are shown in the touch screen.

  • With abnormal alarm display, it is convenient for production line personnel to eliminate abnormalities quickly.

  • Abnormality log and operation log for quick reference by production line personnel to review past issues and operation records.

  • The printing pad usage count and cliché usage count can be set. When the set value is reached, the device will stop and notice automatically.

  • Built-in 3 languages: Traditional Chinese, English, and Vietnamese.

• Utilizing programmable logic controller (PLC) for easy addition or modification of functions.

• Production history function: built-in smart bar chart that the productivity, operation time, production speed, etc in the past 30 days can be shown.

• With smart factory Industrial Internet of Things (I.O.T.), wherever you are, you can view the productivity report by downloading the FineCause APP.

• Automatic printing systems can be customized for various types of balls such as table tennis, lottery balls, etc.

Learn more: [Automation equipment: evaluation and selection of efficient production lines – click here]

• Estimated productivity:

1800~2200 pcs/hr (printing 1~18 colors).

500~600 pcs/hr (printing 1~36 colors).
