Multi Color Pad Printing Machine

Automatic six-color index pad printer

FC-196BRC

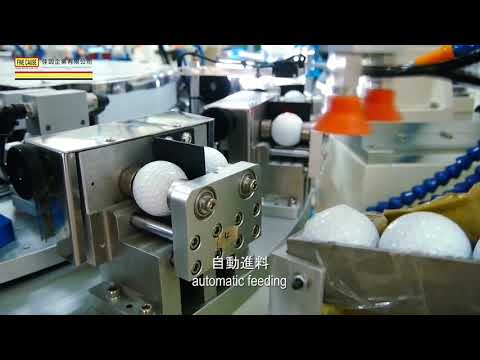

Features: There is an electrostatic blowing for dust removal before printing to increase the printing quality. In addition, the entire pad printing machine adopts Japanese DAIDO oil-free bearings. The machine has 7 touch screens in total, 1 for main and 6 is configured on the pad printing machine. The rotating printing angle of golf ball can be set at any angle by adopting a servo motor, which any surface can be printed!

Automatic index table pad printing machine by 6-Color Golf-FC-196BRC(formerly FC-606BRC)

Six Color pad printer

Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.

■ Automatic index table pad printing machine feature :

Every pad printer could be displace independently which adjustable distance for front and back side is 85mm, left to right side is 120mm, suitable for diversity object printing case.
Automatic sensor inlet pressure, lower than the set value to suspend printing and alarm
Exclusive Patented Ink-Scraping Device (Patent No. M311585) (Using 2 axis to scrap the ink independently. The spring absorbs the steel plate tolerances. Adjustable Cylinder Pressure)
L-Shape Casting Pad-Printer frame by integrate. Firmed Structure. Easy to Operate
10 inch /65536 Color Touched Panel
60mm and 90mm ink cup for selection
Three hot air nozzles are available for replacement
CCD printing defective handling software with discharge fixture
