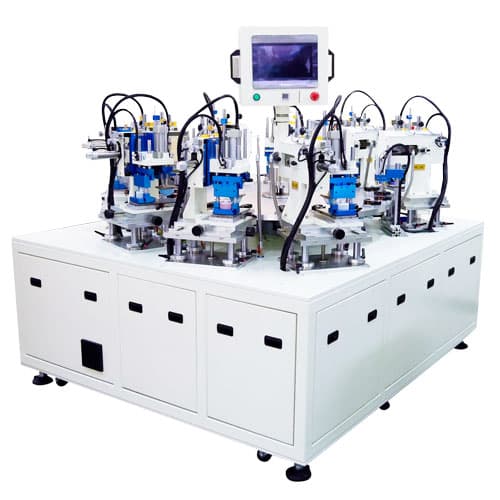

8-Color Pad Printer Machine/pad printer

FC-168BRC-8-Color Pad Printer Machine/pad printer

eight-color printing machine

Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.

■ Features：

• 7.0" HMI touch panel with 65536 color TFT, built-in Chinese, English, Bahasa language, Vietnamese and Thai.

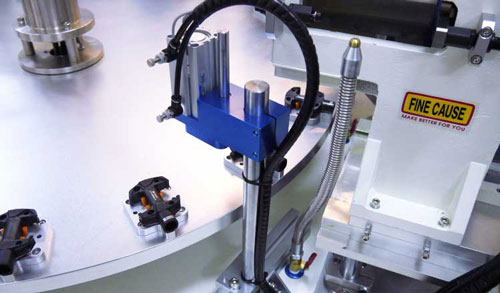

• Pressing mechanism at the first station to confirm the positioning of materials

• The automatic pad printing machine's rotating mechanism rotates 180 degrees, and the printing operation is continued after turning over

• Each pad printing machine can be independently displaced, with adjustable X-Y-Z 3-axis position of the whole machine

• The whole pad printer adopts Japanese DAIDO oil-free bearings

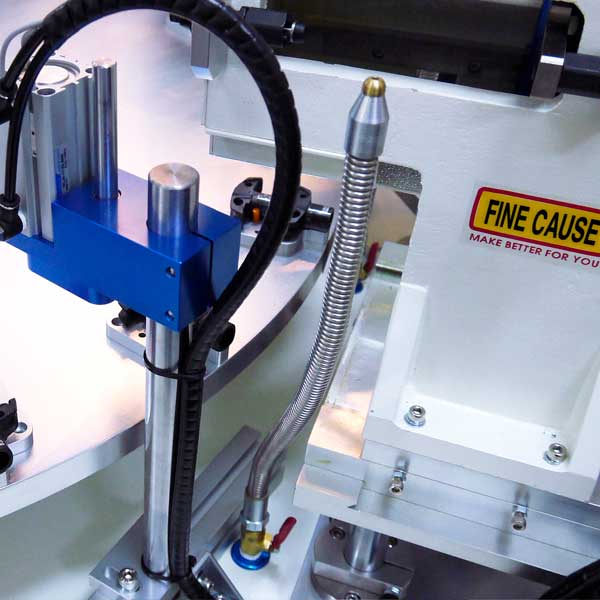

• Hot air nozzles are available for replacement

• Built-in smart bar charts which displays productivity, operating time, production speed, etc.

• No matter where you are, as long as you download the Finecause APP, you can view the production capacity report and assist you in implementing your production management goals.

• Able to set the production time, printing pad and cliche plate usage count

• Automatic detector – detect inlet pressure, if below of standard will alarm and stop working

• The duration of the printing pad can be set through the human-machine interface that has printing parameter settings and multiple sets of formula storage

• The two options – 60mm and 90mm ink cup

• 3 different kind of nozzle for replacement

• Each pad printer can move independent, front to back adjusted 85mm, left to right adjusted 120mm, suitable for various of products printing

▼ Material positing fixture

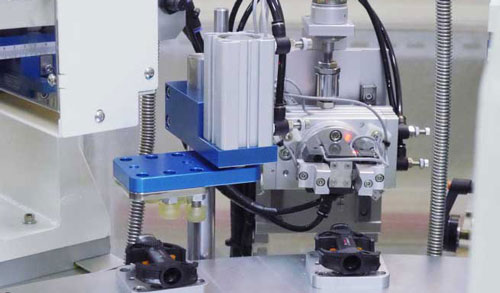

▼ 180 degrees rotary fixture

Specifications
