Pad Printer with Index Table(Thermostatic Printing System and Hot Air Mechanism)

FC-161ARC-CG-Pad Printer with Index Table(Thermostatic Printing System and Hot Air Mechanism)



index table pad printing machine Feature

• Object manual feeding. Carousel rotary speed is adjustable. The running speed of the pneumatic cylinder is displayed on the screen.

• Adopt PLC, which is easy to add or modify functions.

  • The running speed of the pneumatic cylinder is displayed on the screen. Multiple groups of formula storage can be set. The parameters can be set.

• With pressure-regulating ink scraping (patent no. M311585), the ink cup doctoring pressure can be easily adjusted.

• Made by sheet metal + powder coating. The main body is integrated (patent no. M453283).

• Bushing component set makes the printer run more smoothly and stably and improve printing quality greatly.

• Precise carousel with 8 stations.

• Equipped with hot air device, which let the ink dry quickly!

• This pad printing machine is equipped with a thermostatic printing system - 【Taiwan Invention Patent】 Invention No. I762245.

  • The volatilization speed can be increased to promote the ink deposit of printing pad.

  • The viscosity of printing ink can be reduced. The effect of the ink becoming less viscous due to heating.

  • The opacity effect can be increased. The evaporation speed is increased due to heating so that the deeper depth cliché can be used to create thicker film thickness and better opacity.

  • Set the printing plate temperature to 35 degrees Celsius. When the temperature is raised to 35 degrees, the constant temperature can be maintained. No matter how cold the temperature or air-conditioning room is, the temperature of the printing plate can be maintained at 35 degrees.

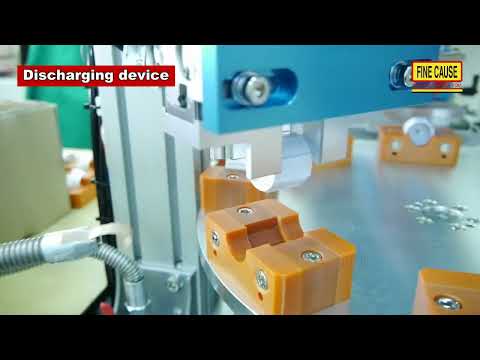

• Discharging device-automatically clip and take out the object, which makes the collection fast.

• Even if the printing pad is not removed at the end of printing, the printing pad will not descend due to air pressure release, which preventing from the damage of the printing pad.

• Replaceable jig-the jig is easy and convenient to change, which is suitable for printing of a variety of products. There is also a choice of magnetic jig that is no need to lock screws.

• Production history function: built-in smart bar chart, which can show production capacity in the past 30 days, running time, production speed, etc.

• Combined with the Industrial Internet of Things (I.O.T.) of the smart factory. The pad printer is connected to WIFI; so no matter where you are, you can view the production capacity report at any time as long as you download the FineCause APP.

• Adopt 7" color touch screen 65536 color TFT. Built-in 3 languages, Mandarin, English,and Indonesian (language can be customized).

  • With I/O (input/output), each sensor location is shown in whole area of the machine.

  • With abnormal alarm display, the production line personnel is  convenient to quickly eliminate abnormalities.

  • With electronic air pressure sensing, the alarm will display automatically for insufficient air pressure.

  • The number of times of the printing pad or cliché is used can be set. While reaching the set value, the printer will stop automatically and notice.



Specifications
