1-Color Pad Printing Machine

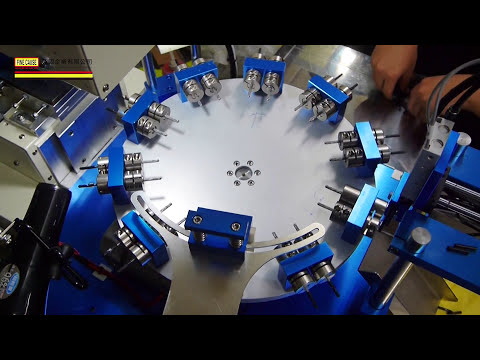

Index Table Pad Printer by Single-Color Ink Cup
- Features
- The pad printing machine adopts an independent pressure adjustable ink cup scraping system.
Description
Index table pad printer use PLC Programmable Logic Controller easy to add and modify function, Exclusive Patented Adjustable Ink-Scrape Mechanism (Patent No. M311585)
Index Table Pad Printer by Single-Color Ink Cup-FC-161ARC-X
■ Customize:
-
Rubber sliding structure
-
Index table pad printer has automatic discharge mechanism.
■ Features：
-
7.0" HMI touch panel with 65536 color TFT, built-in Chinese, English and Bahasa language.
-
Input & output full display
-
Abnormal warning display, convenient for quickly eliminate abnormalities
-
Digital pressure sensor, automatic alarm display for insufficient air pressure
-
Able to set the number of times which Pad-Print Printing is used, and it will automatically stop and display inform when the number is arrives.
-
-
PLC Programmable Logic Controller easy to add and modify function
-
Embedded lighting equipment
-
Ink cup pressure adjusted
-
Electric air pressure sensor
-
Independent pressure adjustable ink cup scraping system (Patent No. M311585) with magnetic ink cup cover, convenience to adjust ink cup pressure and ink cup assemble with printing plate.
Specifications
| Machine | FC-161ARC-X |
|---|---|
| Color | 1 |
| Index table (cm) | 380mm |
| Cycles/hr | 1200~1800 pcs |
| Machine Size (cm) | L:135 W:80 H:135 |
| Weight | 145KG |
| Pressure(kg/cm2 psi) | 4~6 |
| Power (A)Ampere | 10 |
| Voltage (V) | 220V |
| Max. Printing Area(mm) | 55 |
| Max. Height of Printed Object(mm) | 180mm |
| Height -Pad Stand to Steel Plate(mm) | 100 |
| Max. Steel Plate Size (mm) | L:200 W:90 H:10 |
FineCause is professional ink cups and ink plate pad printing machine, servo pad printing machine, custom pad printer manufacturer.
