1-Color Pad Printing Machine
Rotary pad printing machine
- Features
- The pad printing machine is equipped with an automatic positioning device.
- It also features an automatic discharge.
Description
Precise Splitter - Precise Positioning (+-0.03mm). Auto Positioning structure. Objects could placed randomly and the positioning device will push into the correct position. Dryer Equipped，Enhance evaporating and drying the ink.
Single-Color Pad Printer with Round Plate-FC-161ARC-3 (Positioning Device/Auto Ejecting)
Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.
■ Features :
-
Precise Splitter - Precise Positioning (+-0.03mm)
-
Auto Ejector with Rail.
-
Electronic Pressure Sensor
-
Round plate pad printing machine use 7.0" HMI touch panel with 65536 color TFT, built-in Chinese, English and Bahasa language.
-
Input & output full display
-
Abnormal warning display, convenient for quickly eliminate abnormalities
-
Digital pressure sensor, automatic alarm display for insufficient air pressure
-
Able to set the number of times which Pad-Print Printing is used, and it will automatically stop and display inform when the number is arrives.
-
-
PLC Programmable Logic Controller easy to add and modify function
-
Malfunction screen display
-

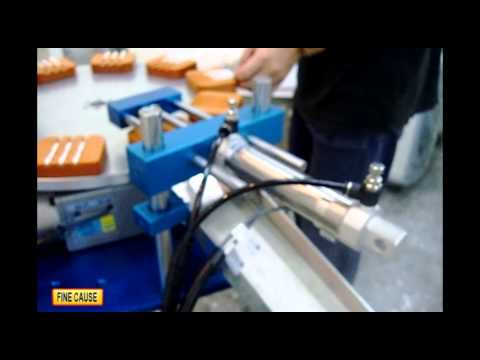

Auto Positioning structure. Objects could placed randomly and the positioning device will push into the correct position.
-
Dryer Equipped，Enhance evaporating and drying the ink.
-
Independent pressure adjustable ink cup scraping system (Patent No. M311585) with magnetic ink cup cover, convenience to adjust ink cup pressure and ink cup assemble with printing plate.
Specifications
| Model | FC-161ARC-3 |
|---|---|
| Color | 1 |
| index Plate size(mm) | 400 |
| Cycles/hr | 1200~1800 Pcs |
| Machine Size (cm) | L:100 W:82 H:120 |
| Weight | 150 KGS |
| Pressure(kg/cm2 psi) | 4~6 |
| Power (A)Ampere | 10 |
| Voltage (V) | 220V |
| Max. Printing Area(mm) | 55 |
| Max. Height of Printed Object(mm) | 180mm |
| Height -Pad Stand to Steel Plate(mm) | 100 |
| Max. Steel Plate Size(mm) | L:200 W:90 H:10 |
FineCause is professional ink cups and ink plate pad printing machine, servo pad printing machine, custom pad printer manufacturer.
