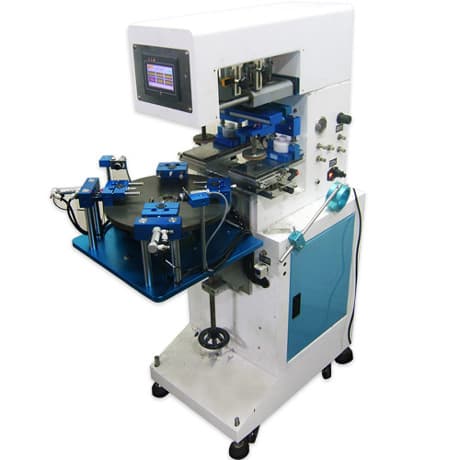

2-Color Pad Printer Machine
Rotating table Ink Cup Pad Printer (Auto-Sensing the Feeding and Ejecting)
FC-162ARC-2
- Features
- The dual-color pad printing machine is equipped with automatic infeed and outfeed sensors for convenient and fast printing.
Description
The advantage of installing round plate 2-color rotating table pad printing machine is that feeding material directly won't be waiting for rubber pad rising. It can increase the producitivity. release when feeding, cliping when printing. fast and accruate. automatically distinguish if the object is placed correctly.
Rotating table Ink Cup Pad Printer(Auto-Sensing the Feeding and Ejecting)-FC-162ARC-2
Upgrade of the original FC-252OP-2
2-Color Round Plate Ink Cup Pad Printer
Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.
■ Feature :
-

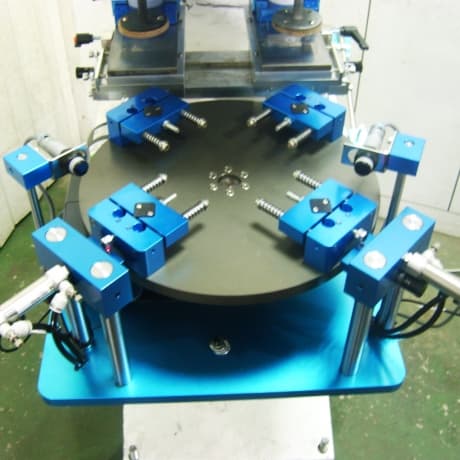

Exclusively Developed Small Round Plate 2-Color pad Printer
-
Able to Add Special Clip Jigs (Based on Customers' Needs)
-
Release when Feeding, Cliping when printing. Fast and Accruate
-
Automatically distinguish if the object is placed correctly
-
Auto-Detect if your hand's left the rotating plate
-

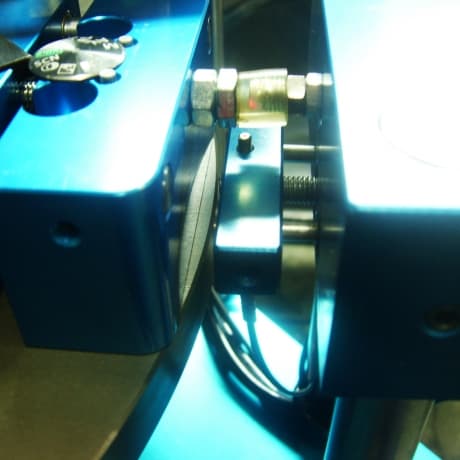

Auto sensing and clip after loading
-
Auto sensing and release when ejecting
Specifications
| Model | FC-162ARC-2 (old FC-252OP-2) |
|---|---|
| Color | 2 |
| index Plate size(mm) | 330 |
| Cycles/hr | 600~1200 pcs |
| Machine Size (cm) | L:80 W:50 H:140 |
| Weight | 125 Kgs |
| Pressure(kg/cm2 psi) | 4~6 |
| Power (A)Ampere | 10 |
| Voltage (V) | 220V |
| Max. Printing Area(mm) | 55 |
| Max. Height of Printed Object(mm) | 180mm |
| Height -Pad Stand to Steel Plate(mm) | 100 |
| Max. Steel Plate Size(mm) | L:200 W:90 H:10 |
