Automatic Contact Lens Printing Machine by Full Servo
- Features
- Automatic four-color contact lens pad printing machine engineered with full-servo drive and precision ball screws.
Description

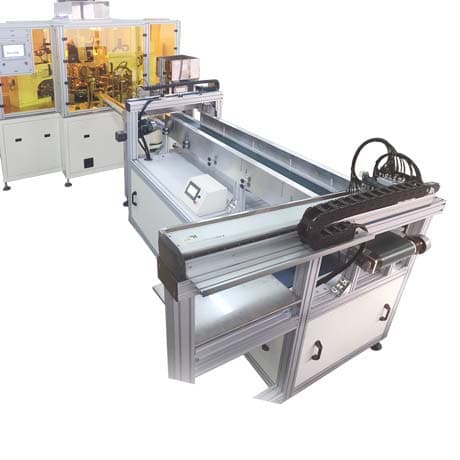

High-efficiency full-servo contact lens pad printer featuring a servo-driven index table, four independent pad printers, and integrated CCD vision inspection.
Automatic contact lens printing machine by full servo-FC-450D
4-color contact lenses pad printer
■ Features:
-

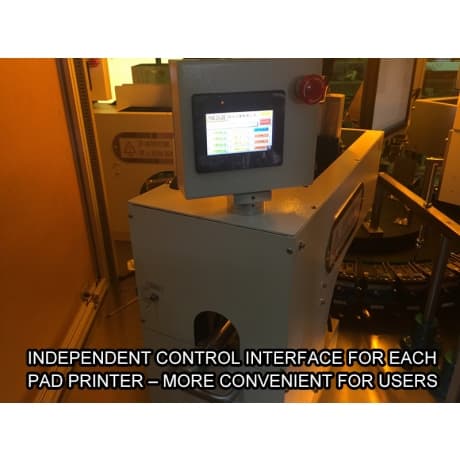

10-inch premium color TFT HMI touchscreen: Features an intuitive digital interface with a 65,536-color touch panel for streamlined multi-color control.
-
Advanced Panasonic PLC programmable controller: Equipped with an industry-proven control system for high-speed, reliable automation.
-
Patented sheet metal structure (Patent No. M456283): Heavy-duty powder-coated body engineered for a neat appearance and maximum structural stability.
-
Patented ink cup pressure mechanism (Patent No. M311585): Allows precision adjustable pressure of the ink cup holder against the cliche for clean scraping and long cliche life.
-

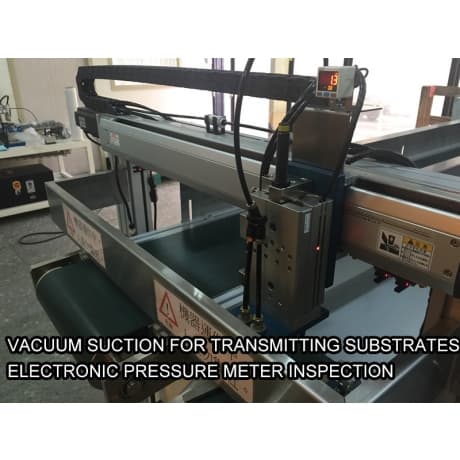

Electronic pneumatic pressure sensor: Automatically triggers an alarm and halts machine operations if the air pressure drops below the pre-set safety threshold.
-
Servo-driven rotary index table: Provides ultra-high precision indexing and workpiece positioning for exact color registration.
-
Automated pad cleaning system: Features a fully programmable tape-cleaning cycle to maintain a residue-free printing process.
-

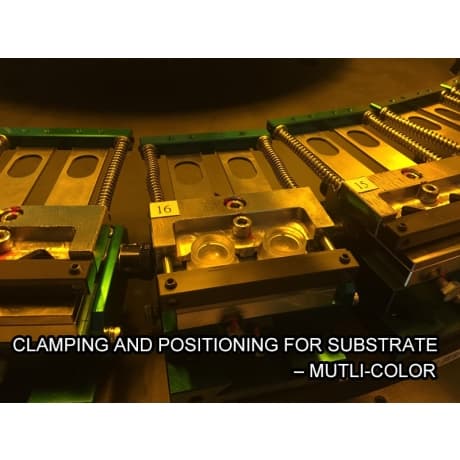

Precision mechanical positioning and electrostatic dusting: Integrates an automated pressing/positioning mechanism alongside an electronic static eliminator for particle-free prints.
-

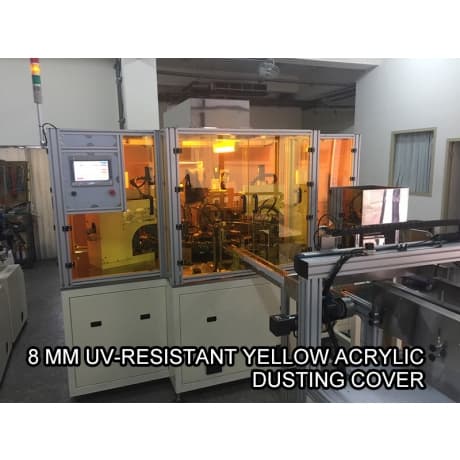

UV-resistant yellow acrylic guarding: Fully enclosed with heavy-duty 8mm UV-cut acrylic sheeting to maintain an optimal, dust-free manufacturing environment.
-

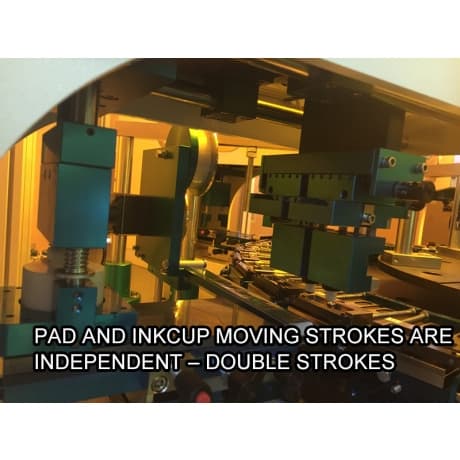

Full servo-driven pad printing assembly: Combines premium servo motors, linear guideways, and precision ball screws to achieve micro-level positioning accuracy.
-

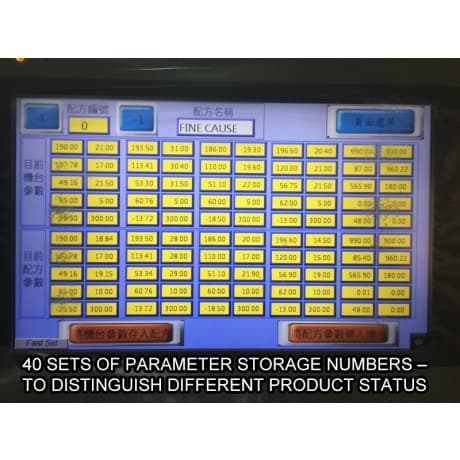

Comprehensive digital parameter setup: Allows full configuration and storage of all printing cycles, speeds, and strokes digitally through the interface.
-

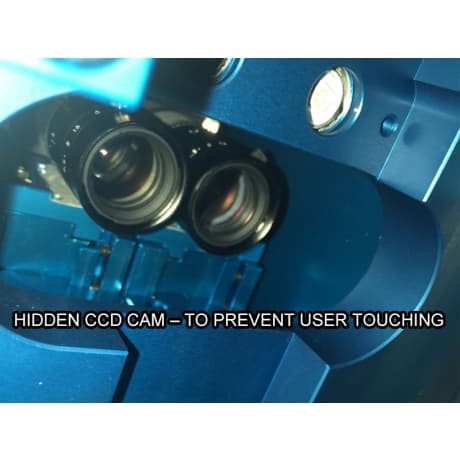

Integrated CCD vision system: Equipped with a dedicated camera and embedded inspection software for advanced, inline quality control tracking.
Specifications
| Model | FC-450D |
|---|---|
| Color | 4 |
| Index plate size (mm) | 800 |
| Speed (pcs/hr) | 1900~2400 |
| Machine size (cm) | L: 610 W: 300 H: 250 |
| Weight | 1200 kg |
| Air pressure (kg/cm²) | 4~6 |
| Power current (A) | 20 |
| Voltage (V) | 220V |
| Max. printing area (mm) | Ø 55 |
| Max. height of printed object (mm) | 180 |
| Height - pad stand to cliche (mm) | 100 |
| Max. cliche size (mm) | L: 200 W: 100 H: 10 |
