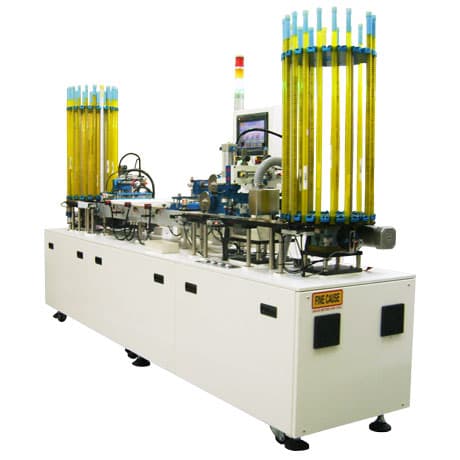

Single-Color Pad Printing Machine

Automatic Pad Printer with single Color Ink Cup

FC-140A1

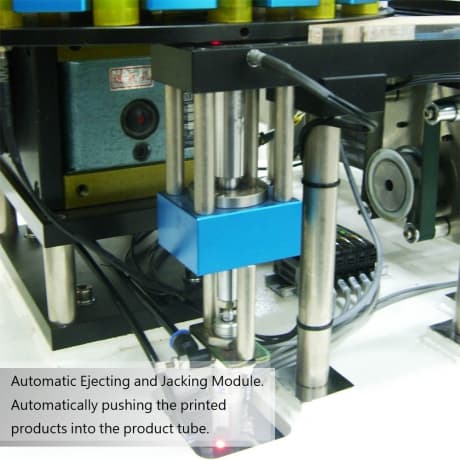

Features: Fully automatic single-color ink cup pad printing machine equipped with automatic feeding progressive push/top discharge mechanism - maxnumber 20 contact less tubes

Description

Fully automatic single-color pad printing machine with infeed and outfeed. Exclusive patented doctor blade mechanism, Republic of China Utility Model Patent No. M311585 (using independent two-axis doctor blades, spring-loaded steel plate tolerance absorption, adjustable cylinder pressure).

Add Inquiry (0)

Automatic Pad Printer with single Color Ink Cup-FC-140A1

Contact Lens Printer

Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.

■ Feature :

Automatic Single-color Ink Cup Pad Printer
Exclusive Patented Ink Scarping Device (Patent NoM311585)
Suction Loading/Suction Ejecting structure - Maxnumber 20 Contact Less Tubes
10 Inches HMI (65536 Color TFT Touch Panel)
Touched and Digital Control Malfunction Display

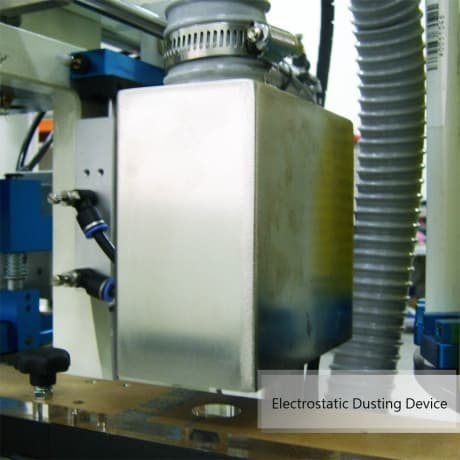

Electronic Static dusting eliminator and auto discharging device

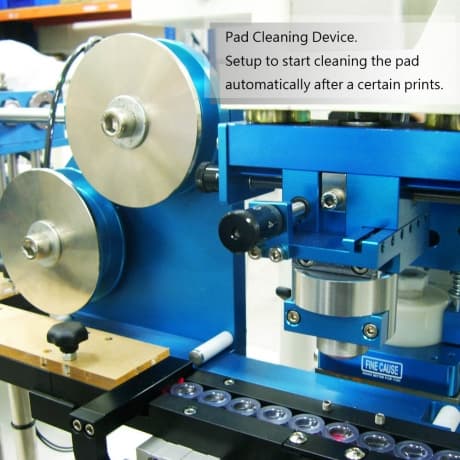

Automatic pad cleaning system with programmable cleaning cycle

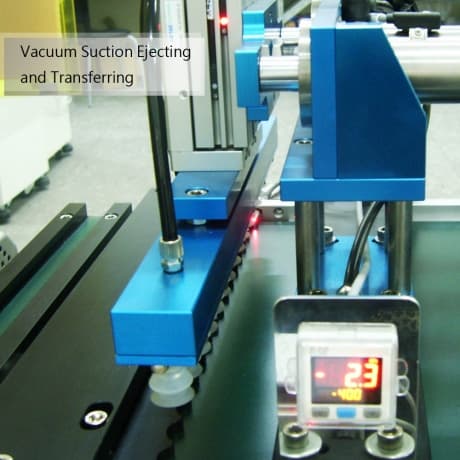

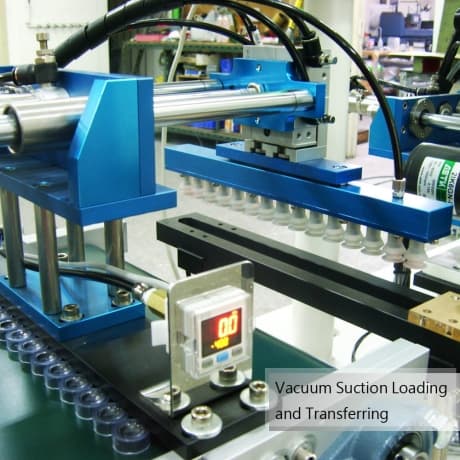

Auto Feeding/Discharge vacuum suction system by robot arm which can take 15 pcs for each time

Specifications

Model	FC-140A1
Color	1
Cycles/Min	20 Pcs
Machine Size (cm)	L:155 W:150 H:185
Weight	800KG
Pressure(kg/cm2 psi)	4~6
Power (A)Ampere	20A
Voltage (V)	220V
Max. Printing Area(mm)	55
Max. Height of Printed Object(mm)	180mm
Height -Pad Stand to Steel Plate(mm)	100
Max. Steel Plate Size (mm)	L:200 W:90 H:10
