Single-Color Pad Printing Machine
Automatic pad printing machine by servo motor
SC-101M
- Features
- The fully automatic servo pad printing machine is equipped with an automatic pad cleaning function, and the cleaning frequency and number of times can be freely set.
Description
Fully automatic servo pad printing machine, which can automatically pick up materials from the feed tray, automatically remove static electricity and fine dust, is fully servo driven, has precise positioning, and the robotic arm can pick up 8 pieces at a time and automatically place them in the correct position.

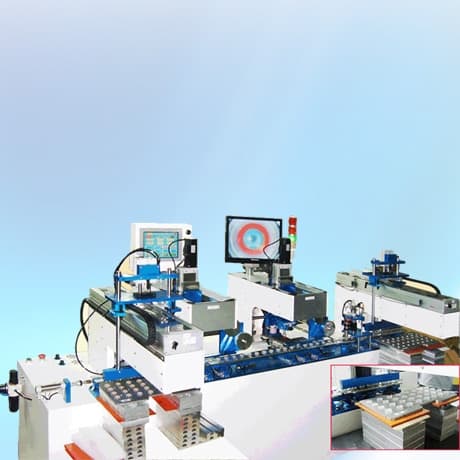

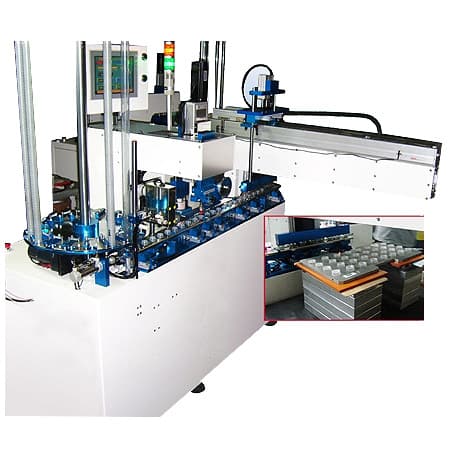

Automatic pad printing machine by custom servo motor-SC-101M (for contact lens)
Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.
■ Aautomatic pad printing machine feature :
-
Servo motor Seal Ink Cup Pad Printer, better precise positioning performance
-
Contact Lens Feeding System
-
Electronic Static dusting eliminator and auto discharging structure .
-
Automatic pad cleaning system with programmable cleaning cycle
Specifications
| Model | SC-101M |
|---|---|
| Color | 1 |
| Cycles/Min | 20 Pcs |
| Machine Size (cm) | L:395 W:140 H:197 |
| Weight | 1000KG |
| Pressure (kg/cm2 psi) |
4~6 |
| Power (A) Ampere |
20A |
| Voltage (V) | 220V |
| Max. Printing Area (mm) |
55 |
| Max. Height of Printed Object (mm) |
180mm |
| Height - Pad Stand to Steel Plate (mm) |
100 |
| Max. Steel Plate Size (mm) |
L:200 W:90 H:10 |
FineCause is professional ink cups and ink plate pad printing machine, servo pad printing machine, custom pad printer manufacturer.
