Two Color Pad Printer Machine
Automated Pad Printer - Double-Color PVC Card Printing Machine
- Features
- The fully automatic rotary pad printing machine has an automatic feeding capacity of approximately 600 PCS.
Description
Automated Machinery Equipment - Double-Color PVC Card Printing Machine -Equipped with 12-stations carousel for printing process and 6-stations carousel for objects storage. The objects will be fed automatically. 2 mechanical arms are able to pick up and place the objects simultaneously in a rotating manner. Automatic pad printer with indexing table equipped with an automatic NG judgement mechanism with mechanical arm for distributing objects and a conveyor belt for stackin

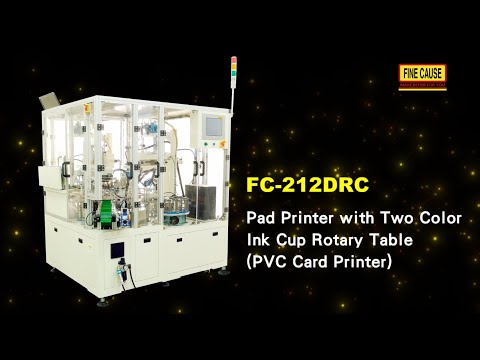

FC-212DRC｜Double-Color PVC Card Printing Machine
Automated Machinery Equipment × Rotary Double-Color Pad Printer × AOI Smart Inspection System
The FC-212DRC is a high-efficiency automated pad printer specially designed for PVC card printing. It features a 12-station rotary table and a double-color printing system, integrating auto feeding, AOI inspection and sorting, hot air drying, and a collection conveyor. It is ideal for various PVC card production lines. Successfully adopted by many domestic manufacturers, this model offers high automation, stable operation, and significantly boosts both productivity and quality.
■ Features of This Automated Machinery Equipment
12-Station Rotary Table Platform
Equipped with an indexing positioning mechanism, supporting continuous printing processes with stable and high-precision performance.
Automatic Feeding Module (600-Piece Capacity)
Built-in six-slot storage, combined with an automatic lifting and top-feeding mechanism, improves feeding efficiency. Static electricity blowing function stabilizes feeding quality.
Dual Robotic Arms for Simultaneous Pick-and-Place
Two arms operate in a rotary motion for simultaneous pick-up and placement, achieving high-speed and high-efficiency material handling while minimizing wait time.
Two Standard Pad Printing Machines
Equipped with two pad printer heads, supporting double-color printing operations — ideal for multi-colored logos, graphics, or text.
Z-Axis Adjustment Mechanism
Allows fine vertical adjustments based on workpiece height to ensure optimal printing position.
Hot Air Drying System
Integrates a hot air drying module to effectively shorten ink drying time and speed up the overall printing process.
AOI Smart Inspection and NG Collection Mechanism
Built-in visual inspection system automatically identifies and separates defective (NG) products, guiding them to a collection zone to avoid mixing with good products.
Collection Conveyor Design (8 Stations)
Each station can hold up to 50 cards. After automatic classification, cards are sequentially collected, facilitating subsequent packaging or inspection.
Robust and Durable Structural Design
The entire machine is constructed from stainless steel, with partial steel channel components finished with baking paint. The door panels are made of transparent acrylic for durability and operational safety.
▲ Equipped with six-slot storage and an automatic lifting feeding mechanism (600PCS), integrated with a top-feeding mechanism (including static electricity blowing function).
▲ Dual robotic arms operate with a rotary motion to achieve simultaneous pick-and-place, speeding up feeding efficiency.
▲ Integrated hot air drying system.
▲ Equipped with two standard pad printing machines.
▲ Collection conveyor - each station can hold 50PCS, for a total of 8 stations.
▲ Sorting arm - PVC cards identified by AOI are linearly placed either into the NG collection mechanism or onto the collection conveyor.
■ Applicable Industries and Applications
-
Banking / Credit Card Manufacturing Industry
-
Company ID Card / Membership Card Printing
-
Public Transportation Stored Value Cards / Access Control Cards
-
Various PVC Gift Cards / Ticket Card Mass Production
-
Other Customized Card Production Lines
■ Customization Services and Support
We offer comprehensive customized printing equipment design services, including jig adjustments, automatic feeding path designs, pad printing structure enhancements, machine appearance customization, and visual inspection system integration.
Ideal for factories or medium to large-scale manufacturers seeking automation upgrades. Please contact our technical team for further consultation.
FC-212DRC — The perfect combination of automated machinery equipment and intelligent printing.
Contact us today for more technical information and quotations!
▼ The printer is made of stainless steel with some painted channel steel. The door is made of clear acrylic.
▲ Custom pad printer for PVC cards is shipped to domestic customer.
Specifications
| Model | FC-212DRC-SAG |
|---|---|
| Printing Color(s) | 2 |
| Max. Recommended Printing Area (mm) | Ø130 mm |
| Plate Size (mm) | L:200 W:90 H:10 mm |
| Capacity / Hour | 900~1200 Pcs |
| Machine Dimensions (cm) | L:175 W:150 H:173 cm |
| Weight (kg) | 750 kg |
| Working Platform | 12-Station Indexing Turret |
| Auto-Feeding Capacity | Approx. 600 PCS |
| Unloading Conveyor Capacity | 50 PCS per station × 8 stations |
| Inspection System | AOI Vision Inspection Module |
| Average Output | Approx. 800–1000 PCS / Hour |
