1-Color Pad Printing Machine
One color rotating table pad printer
- Features
- Eight-section disc ink cup pad printing machine
- Rotating table pad printer has 4 nozzle with air to reduce printing drying time.
Description
rotating table pad printer has 4 nozzle with air to reduce printing drying time. Independent pressure adjustable ink cup scraping system (Patent No. M311585) with magnetic ink cup cover, convenience to adjust ink cup pressure and ink cup assemble with printing plate.

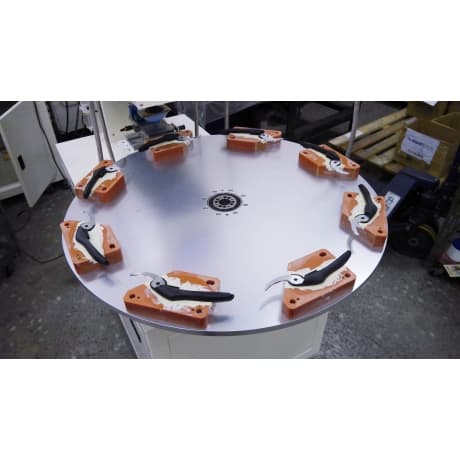

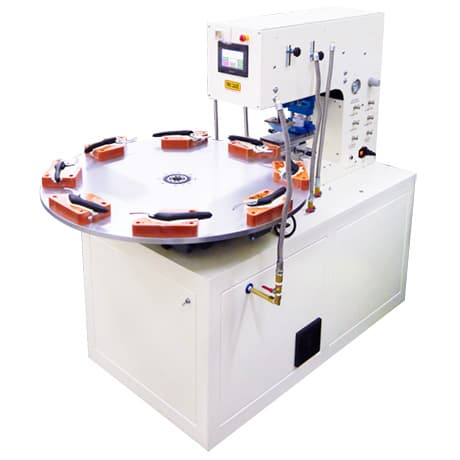

One color rotating table pad printer(Index Table for 8 station)FC-161ARC-8
Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.
■ Feature :
-

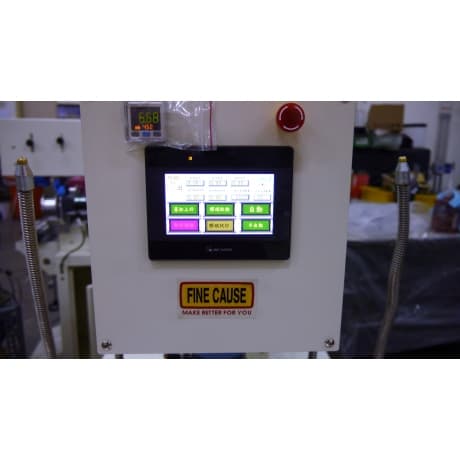

This indexing table pad printing machine adpots 7.0" HMI touch panel with 65536 color TFT, built-in Chinese, English and Bahasa language.
-
Input & output full display
-
Abnormal warning display, convenient for quickly eliminate abnormalities
-
Digital pressure sensor, automatic alarm display for insufficient air pressure
-
Able to set the number of times which Pad-Print Printing is used, and it will automatically stop and display inform when the number is arrives.
-
-
PLC Programmable Logic Controller easy to add and modify function
-

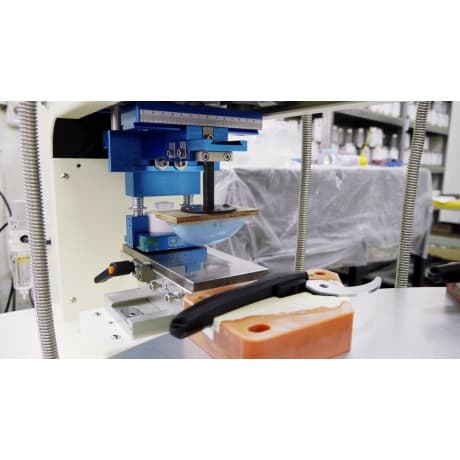

Rotating table pad printer has Independent pressure adjustable ink cup scraping system(Patent No. M311585)with magnetic ink cup cover, convenience to adjust ink cup pressure and ink cup assemble with printing plate.
-
Embedded lighting equipment
-
Ink cup pressure adjusted
-

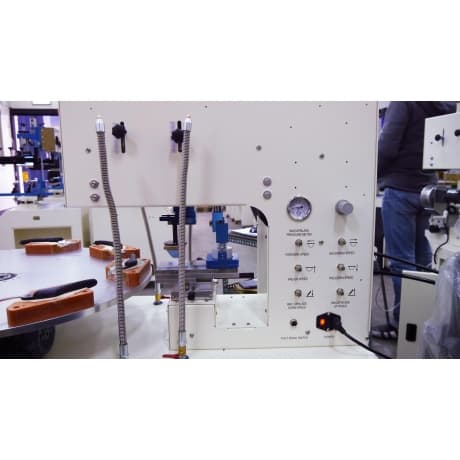

Electric air pressure sensor
-
4 nozzle with air to reduce printing drying time
Specifications
| model | FC-161ARC8 |
|---|---|
| Color | 1 |
| Index table (cm) | 800mm |
| Cycles/hr | 1200~1800 pcs |
| Machine Size (cm) | L:140 W:80 H:135 |
| Weight | 185KG |
| Pressure(kg/cm2 psi) | 4~6 |
| Power (A)Ampere | 20 |
| Voltage (V) | 220V |
| Max. Printing Area(mm) | 55 |
| Max. Height of Printed Object(mm) | 180mm |
| Height -Pad Stand to Steel Plate(mm) | 100 |
| Max. Steel Plate Size(mm) | L:200 W:90 H:10 |
FineCause is professional ink cups and ink plate pad printing machine, servo pad printing machine, custom pad printer manufacturer.
