2-Color Pad Printer Machine
Two Color Pad Printer with index table
FC-162ARC-X
- Features
- Customization features of index table two-color pad printing machines include an automatic discharge suction fixture.
Description

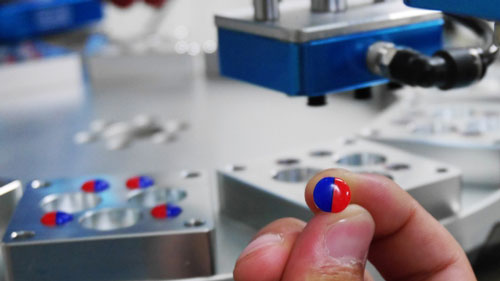

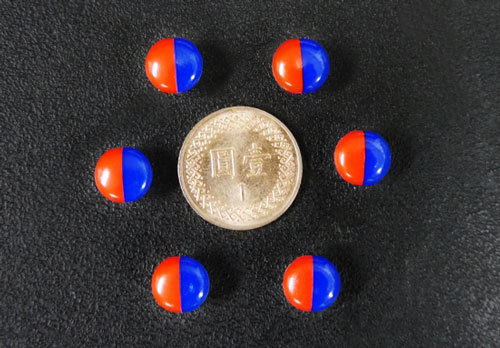

This index table pad printing machine can Print on quite small products in diameter about 1 cm, dual color printing, accurate color registration! the pad printing machine is equipped with automatic suction discharging function, automatic error detection system, and PLC control panel, which is easy to operate.

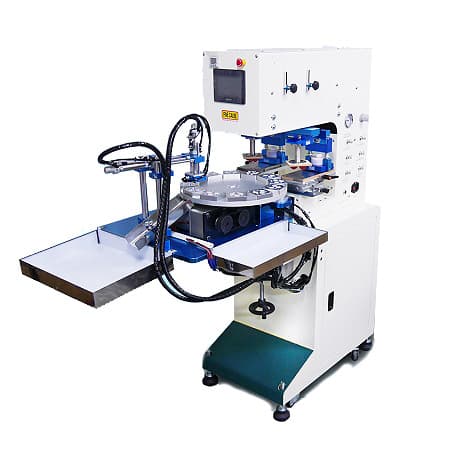

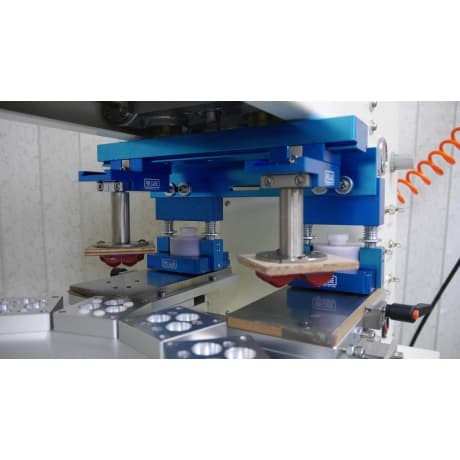

2-Color Pad Printer with index table-FC-162ARC-X
(Auto-discharge suction fixture)
Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring. no matter what you’d like to print, Fine Cause’s professional team can provide customized designs according to your.
■ Indexing table pad printer feature :
- Color touch panel, built-in three different languages- Chinese (traditional), English, Indonesian
-

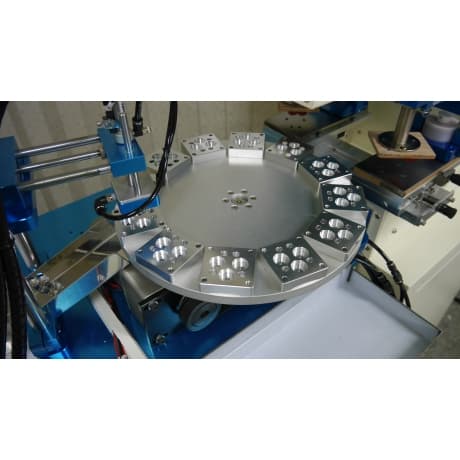

Exclusively Developed Small index table 2-Color ink cup pad Printer
-
Able to Add Special Clip Jigs (Based on Customers request )
-
Fixed material by suction function
-

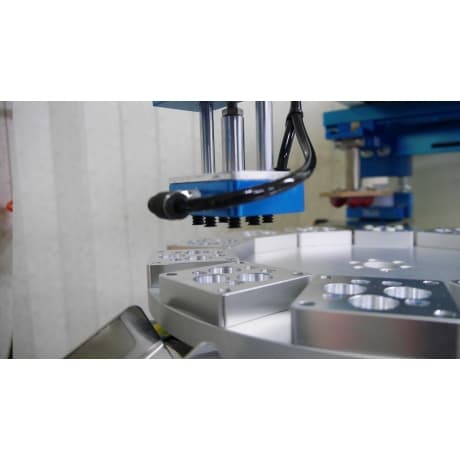

Automatic discharge suction fixture
-
Controlled by PLC digital microcomputer, auto detector system-malfunction
-
display, convenient for repair
-
Embedded lighting equipment
-
65536 Color TFT Touch Panel
- Built-in intelligent software which show column chart of past 30 days on the screen.
▼ Product
▼ Product
Specifications
| Model | FC-162ARC-X |
|---|---|
| Color | 2 |
| index Plate size(mm) | 330 |
| Cycles/hr | 600~1200 pcs |
| Machine Size (cm) | L:80 W:50 H:140 |
| Weight | 145KG |
| Pressure(kg/cm2 psi) | 4~6 |
| Power (A)Ampere | 10 |
| Voltage (V) | 220V |
| Max. Printing Area(mm) | 55 |
| Max. Height of Printed Object(mm) | 180mm |
| Height -Pad Stand to Steel Plate(mm) | 100 |
| Max. Steel Plate Size(mm) | L:200 W:90 H:10 |
