Two-Color Index Table Pad Printing Machine (Automatic Discharge)

FC-162ARC-LC -Two-Color Index Table Pad Printing Machine (Automatic Discharge)



Product Features

• Four-Station Index Table Design: Dual-cavity printing at one station to enhance production efficiency.

• Precision Positioning System: Equipped with a cam-type indexer and inverter control for stable motion and accurate positioning.

• 8 Sets of Aluminum Fixtures: Adjustable from angles 0° to 360°, flexibly accommodating various product.

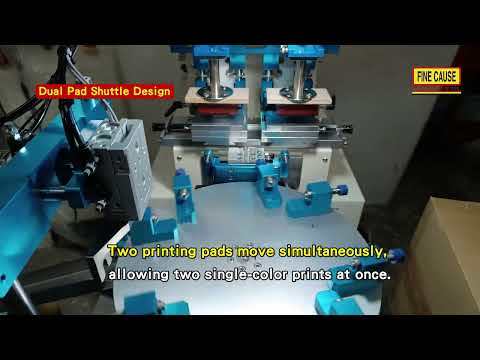

• Dual Pad Shuttle Design: Two printing pads move simultaneously, allowing two single-color prints at once.

• Automatic Discharge Mechanism: Automatically discharges printed items after printing completion, reducing manual workload.

• Automatic Solvent-Adding System (Patent No. I889206): Adds small amounts of solvent periodically to maintain stable ink viscosity for up to 24 hours; replenishment is automatically triggered based on preset print counts.

⚠️ Note: This model is semi-automatic — object loading is performed manually. Ideal for medium-volume production and high-precision printing needs. An automatic loading module is available as an optional add-on.

Smart Operation Interface (7” Color Touchscreen)

• All sensor positions are clearly shown for intuitive operation.

• Real-time scrolling alerts for abnormal conditions enable quick troubleshooting.

• Electronic air pressure monitoring with automatic low-pressure alarm display.

• Allows presetting of pad and plate usage counts — the machine automatically stops and issues an alert when set value are reached.

Mechanical & Control Design

• PLC: Flexible function expansion with customizable operation logic.

• Parameter Memory Function: Supports multiple formula storage for quick product setting changes.

• Pressure-Regulating Ink Scraping System (Patent No. M311585): Allows quick and fine-tune of ink cup doctoring pressure.

• Integrated Metal Body Design (Patent No. M453283): Powder-coated steel structure for durability and a clean, modern appearance.

• Modular Shaft Sleeve Design: Greatly enhances running stability and printing quality.

• Dual Adjustable Plate Holders: Enable fine-tuning in left, right, front,back and angle, offering greater alignment flexibility.

Multi-Language Support

Built-in trilingual interface: Traditional Chinese, English, and Indonesian — ideal for export and multi-national production lines.

Production History Function

Smart bar chart display of key production data, including capacity, operating hours, and production speed over the past 30 days — enabling effective production monitoring and management.

Safety & Pad Protection

After printing, the pad remains in position even when air pressure is released, preventing pad damage caused by unintended downward movement.

Specifications
