Index table pad printing machine

Index table pad printing machine-FC-161ARC-2-(old FC-125OP-2)



Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.

■ Index table pad printing machine features：

• 65536 color TFT touch panel

• PLC controller, easy for add functions

• Embedded lighting equipment

• Malfunction screen display

• Ink cup pressure adjusted

• Electric air pressure sensor

• Independent pressure adjustable ink cup scraping system (Patent No. M311585) with magnetic ink cup cover, convenience to adjust ink cup pressure and ink cup assemble with printing plate.

■ Suitable for :

Toys, Stationery, Jewelry, Watch Surface, Eelectronic Products, Switches, Buttons, Metal finished and semi-finished products, Ceramic Glass products, uneven surface printing.

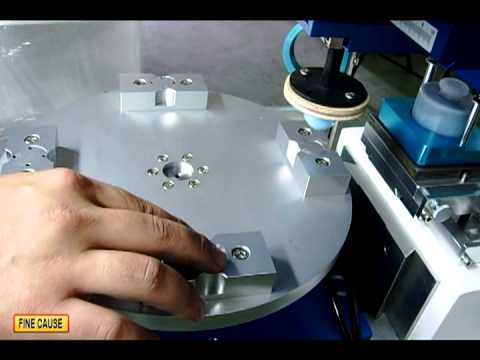

Additional precision indexing plate makes it easy to access the materials. It is also able to expand the automation peripherals to increase production.

Fine Cause produced pad printers own exclusive patent (No. M311585) and is different from others which only use magnet for suction function. Our new double-axis ink-scarping system makes it better and cleaner for scraping the ink.
2-Axis Ink-Scarping System	Large XY Base-Convenient and Accurate Positioning	Japan DAIDO Oliless Bearing



Specifications

Model	FC-161ARC-2 (old FC-125OP-2)
Color	1
index Plate size(mm)	280
Cycles/hr	1200~1800 Pcs
Machine Size (cm)	L:73 W:50 H:120
Weight	120 Kgs
Pressure(kg/cm2 psi)	4~6
Power (A)Ampere	10
Voltage (V)	220V
Max. Printing Area(mm)	55
Max. Height of Printed Object(mm)	180mm
Height -Pad Stand to Steel Plate(mm)	100
Max.Steel Plate Size(mm)	L:200 W:90 H:10



FineCause is professional ink cups and ink plate pad printing machine, servo pad printing machine, custom pad printer manufacturer.
