1-Color Pad Printing Machine

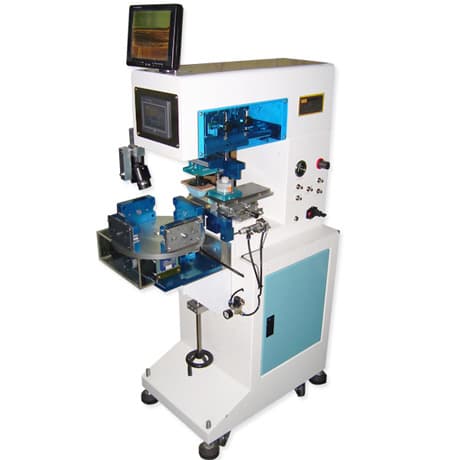

Rotary table pad printer-(Auto-Holding w/Video Camera)
FC-161ARC-1
- Features
- The pad printing machine features a 7.0-inch color TFT touchscreen.
- Eliminating the need to wait for the pad printing pad to press down increases production capacity.
Description

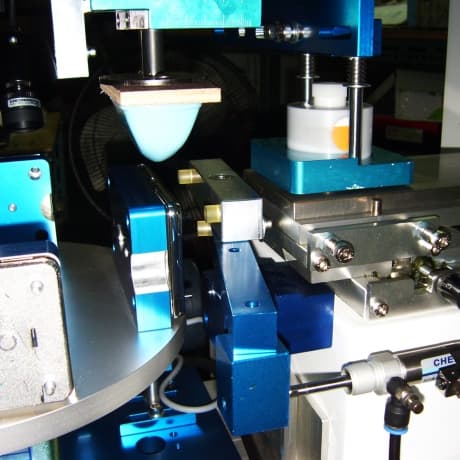

Rotary table pad printing machine has 8 Inches LCD Monitor, Assist monitoring position and quality.Color Touch Panel, Panasonic PLC Programmable Control System. Auto-Holding Printing. Three-Point Positioning.
Rotary table pad printer-(Auto-Holding w/Video Camera)FC-161ARC-1
Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.
■ Features：
-
Color Touch Panel, Panasonic PLC Programmable Control System.
-
Auto-Holding Printing. Three-Point Positioning.
-
410K Pixel Video Camera
-
8 Inches LCD Monitor, Assist monitoring position and quality
-
Input / Ouput Full Display
-
Adjustable Ink-Cup Pressure. Micro Computer Auto Bug Detector, Convenient and Easy to Maintenance
Specifications
| Model | FC-161ARC-1 |
|---|---|
| Color | 1 |
| index Plate size(mm) | 280 |
| Cycles/hr | 1200~1800 Pcs |
| Machine Size (cm) | L:73 W:50 H:120 |
| Weight | 120 Kgs |
| Pressure(kg/cm2 psi) | 4~6 |
| Power (A)Ampere | 10 |
| Voltage (V) | 220V |
| Max. Printing Area(mm) | 55 |
| Max. Height of Printed Object(mm) | 180mm |
| Height -Pad Stand to Steel Plate(mm) | 100 |
| Max. Steel Plate Size(mm) | L:90 W:200 H:10 |
FineCause is professional ink cups and ink plate pad printing machine, servo pad printing machine, custom pad printer manufacturer.
