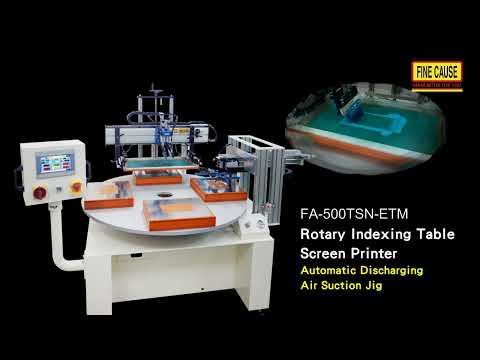

Rotary indexing table screen printer(Automatic Discharging+Air Suction Jig)

Rotary indexing table screen printer-FA-500TSN-ETM

(Automatic Discharging+Air Suction Jig)



• 500 stroke screen printer with carousel by 4 stations.

• Suction device (blower) with jigs is to fix objects.

  • The suction time can be set and adjusted according to the needs.

• The HMI is independent, which can be turned left and right for easy operation.

  • The screen printing machine adopts 7" HMI (65536 color TFT touch interface). Built-in 5 languages, traditional Chinese, English, Indonesian, Vietnamese, and Thai.

  • With I/O (input/output), each sensor location is shown in whole area of the machine.

  • With electronic air pressure sensing, the device will alarm automatically for insufficient air pressure.

  • The usage count of squeegee or screen stencil can be set. When the set value is reached, the device will stop and notice automatically.

  • Adopt PLC that the functions is easy to add or modify.

• With magnetic squeegee clip (Patent No. M390871), the squeegee position can be slided easily and is simple to adjust the position, assemble and disassemble.

• The up and down of the screen stencil is controlled digitally. The lifting height can be set by HMI.

• This screen printing machine adopts pneumatic squeegee set to up and down linearly, which is convenient to clean and assemble and disassemble quickly.

• Automatic discharging arm.

  • The suction range of the discharging arm is adjustable.

• Built-in smart bar chart that the productivity, operation time, production speed, etc in the past 30 days can be shown.

• With WIFI function, if to connect with FineCause smart factory APP, no matter where you are, you can view the machine productivity report anytime and anywhere.

Specifications
