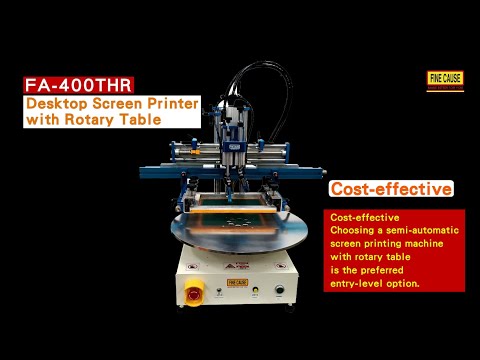

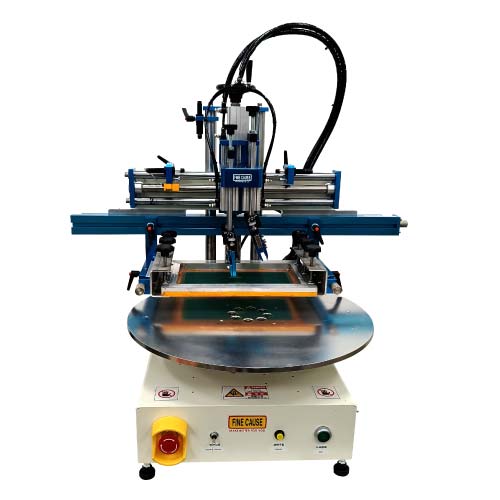

Desktop Screen Printer with Rotary Table

Desktop Screen Printer with Rotary Table-FA-400THR

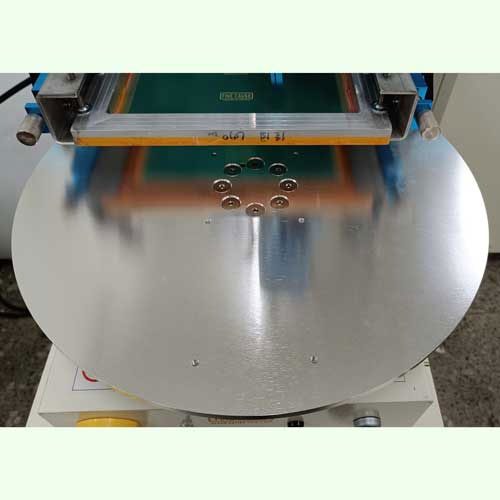

• Rotary table diameter of the screen printing machine: 500mm. 2 stations. (Rotary table can be customized according to your needs.)

• There are screw holes on the rotary table for easy installation of jigs.

• The rotary table machine can increase productivity, allowing for loading and unloading of object while printing simultaneously.

  • Choosing a semi-automatic screen printing machine with rotary table is the preferred entry-level option.

  • Lightweight desktop model makes it easy for placement directly on the table, facilitating transportation and offering economical pricing.

• It features a 【start】 button, enabling the table to rotate accordingly for printing that the printing can be done easily with only one press.

  • There is also a 【rotation】 button, which can freely control the rotation of the table.

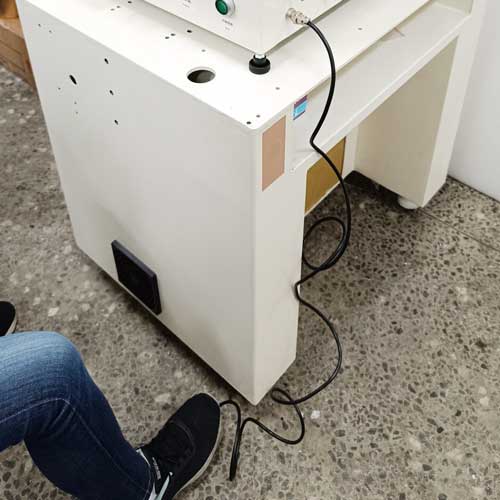

  • A 【foot pedal】 is applied to the screen printing machine that the printing action can be initiated by it.

• The ink scraping is worked by air cylinder that the operation is stable and effortless!

• The screen printing machine can be equipped with a vacuum suction device.

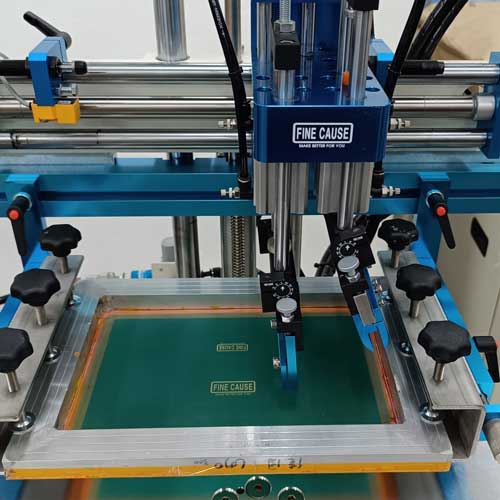

• Equipped with a magnetic squeegee holder.

  • With magnetic squeegee clip (Patent No. M390871), the squeegee position can be slided easily and the adjustment or disassembly is also simple.

• Speed adjustment of left and right movements.

  • Adjusting the operation time of the squeegee and ink scraper can increase productivity and printing quality.

• The screen stencil front/back/left/right position is adjustable.

  • The front/back/left/right positions of screen stencil can be easily adjusted by scales.

• Screen cleaning function

  • The screen cleaning function allows for quick up and down  of screen stencil, facilitating easy and rapid cleaning of the screen stencil.
