Open Inkwell Pad Printing Machines
Ink-Tray Pad Printing Machine by One-Color
- Features
- Open-Ink-Tray pad printing machine
- FC-101ANC Maximum printing area: 80*80 (mm)
Description
Ink-type pad printing machines are widely adaptable and can print larger or more unique shapes, with relatively flexible mold adjustments. If the range of printed workpieces is large and involves small-batch, diverse production, then a pad-type machine may be considered.
Ink-Tray Pad Printing Machine by One-Color-FC-101ANC
Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.
■ Feature :
-
Finecause traditional and common type – FC-101ANC, 1 stand for moving of rubber (125mm). In addition, 1 also stand for what size of the machine. Moreover, 2 stand for moving of rubber(200mm). Finally, 3 stand for moving of rubber(300mm).
-
FC-101ANC- 0 stand for the round plate pad printer
-
FC-191ANC – 1 stand for single color machine
-
-
The same pad printing machine can go with 90mm of ink cup or double groups of ink cups even more like 3 groups of ink cups becomes 2-color machine or 3-color machine.
-
Client can choose paid add additional installation peripheral devices like slide rail, round plate, oval plate, suction function, flip function, rotary function, and blow dryer shelf and so on.
- Built in smart bar chart, production data displayed by graphs in the past 30 days. Connect with FineCause smart factory APP, no matter where you are, you can overview the production data of your pad printer.
-
It can also go with Finecause slim module
-
Built-in intelligent software which show column chart of past 30 days on the screen
-
7.0" HMI touch panel with 65536 color TFT, built-in Chinese, English, Bahasa language, Vietnamese and Thai.
-
Input & output full display
-
Abnormal warning display, convenient for quickly eliminate abnormalities
-
Digital pressure sensor, automatic alarm display for insufficient air pressure
-
Able to set the number of times which Pad-Print Printing is used, and it will automatically stop and display inform when the number is arrives.
-
-
PLC Programmable Logic Controller easy to add and modify function
- Emdedded Cost Saving Light Bulb
- Malfunction Detector. Screen Display
- Electronic Air Pressure Sensor

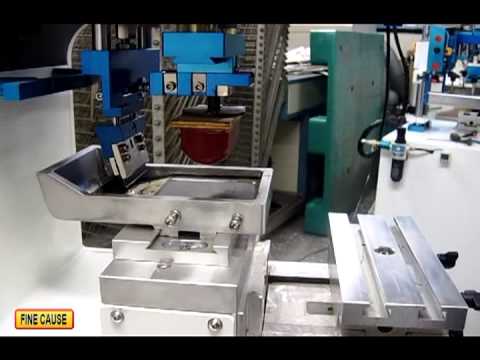

Printing Demonstration Video Of The Monochrome Fc-101anc Ink-tray Pad Printing Machine By One-color
■ Suitable for :
Additional precision indexing plate makes it easy to access the materials. It is also able to expand the automation peripherals to increase production.
Specifications
| Model | FC-101ANC |
|---|---|
| Color | 1 |
| Cycles/hr | 1200~1800 Pcs |
| Machine Size (cm) | L:63 W:40 H:120 |
| Weight | 105 Kgs |
| Pressure (kg/cm2 psi) | 4~6 |
| Power (A) Ampere | 5 |
| Voltage (V) | 110V or 220V |
| Ink Tray Size | 4” (Can be expandable to 9”.) |
| Max. Printing Area (mm) | 80*80mm (9”tray and 100*200mm cliché, there will be restrictions on the graphic size. A practical assessment is required.) |
| Max. Height of Printed Object (mm) | 180mm |
| Height -Pad Stand to Steel Plate (mm) | 100 |
| Suitable Cliché Size (mm) | 100*100mm |
| (9” tray use 100*200mm cliché) |
