Open Inkwell Pad Printing Machines
Open Ink tray Pad Printer by Medium-Sized Single-Color
- Features
- The maximum printing area of this medium-sized ink tray tray pad printer is 120*140 (mm).
- The pad printing machine uses a 7.0-inch color TFT touch screen.
Description

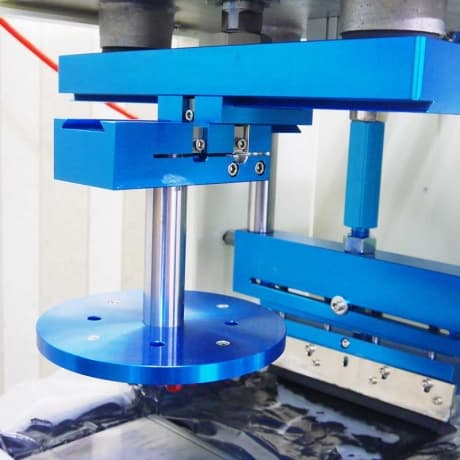

This open inkwell pad printer is a standard, medium-sized model. It can be equipped with a pad height of up to 180mm, making it suitable for overprinting, large-area printing, or printing on medium-sized substrates.

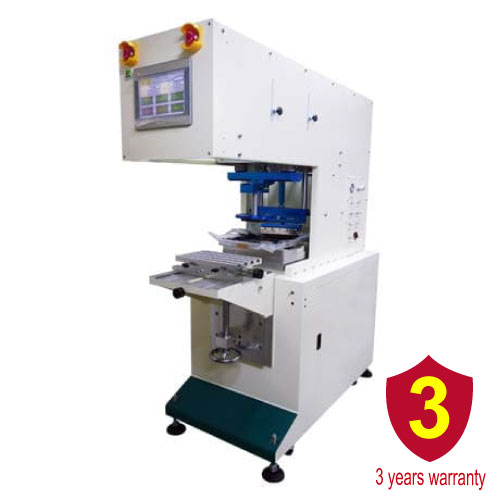

Open Ink tray Pad Printer by Medium-Sized Single-Color-FC-201ANC
Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.
■ Feature :
-
Built in smart bar chart, production data displayed by graphs in the past 30 days. Connect with FineCause smart factory APP, no matter where you are, you can overview the production data of your pad printer.
-
7.0" HMI touch panel with 65536 color TFT, built-in Chinese, English, Bahasa language, Vietnamese and Thai.
-
Input & output full display
-
Abnormal warning display, convenient for quickly eliminate abnormalities
-

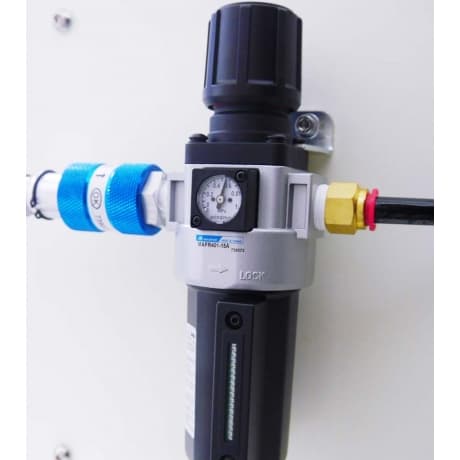

Digital pressure sensor, automatic alarm display for insufficient air pressure
-
Able to set the number of times which Pad-Print Printing is used, and it will automatically stop and display inform when the number is arrives.
-
-
PLC Programmable Logic Controller easy to add and modify function
-
Malfunction Detector. Screen Display
-
Embedded Cost Saving Light Bulb
-

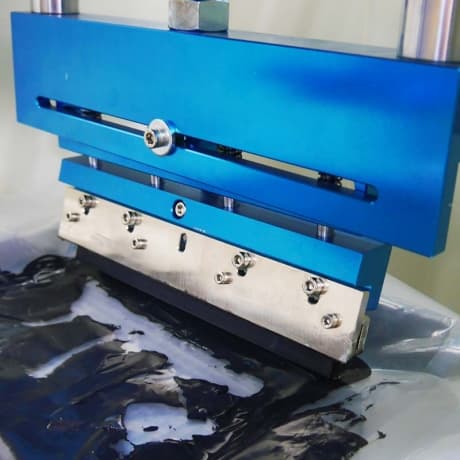

Independent pressure adjustable ink cup scraping system (Patent No. M311585) with magnetic ink cup cover, convenience to adjust ink cup pressure and ink cup assemble with printing plate.
-
Sheet Metal + Powder Coating Machine Body. Fashion Appearance (Patent No. M456283)
Specifications
| Model | FC-201ANC |
|---|---|
| Color | 1 |
| Platefrom size (mm) | 144*320 |
| Cycles/hr | 1200~1800 Pcs |
| Machine Size (cm) | L:134 W:64 H:160 |
| Weight | 400KG |
| Pressure (kg/cm2 psi) | 4~6 |
| Power (A) Ampere | 5A |
| Voltage (V) | 110V or 220V |
| Max. Printing Area (mm) | 140*120 |
| Max. Height of Printed Object (mm) | 160 |
| Height -Pad Stand to Steel Plate(mm) | 200 |
| Max. Steel Plate Size (mm) | L:160 W:140 H:10 |
