Two Color Pad Printer Machine
Insole Printing / Insole Pad Printer
- Features
- The shoe insole printing machine is equipped with a servo-driven automatic lifting and storage mechanism.
- Automatic feeding and discharging.
Description
The pad printing machine series enables easy and fast insole printing. These professionally customized insole printing machines, equipped with specialized insole printing jigs, automatic feeding and unloading mechanisms, and servo-driven automatic lifting and storage mechanisms, ensure rapid printing and are favored by many major sportswear brands.

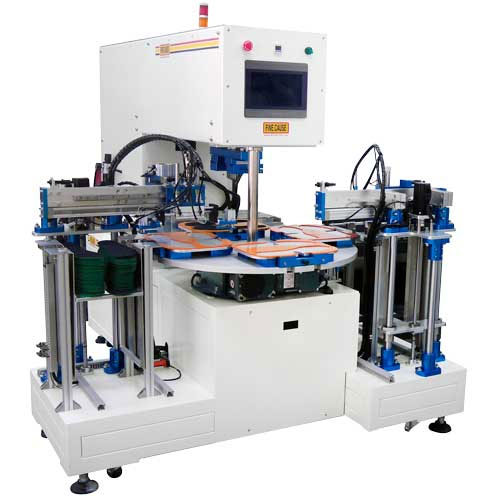

FC-392CRC-MD4-Automatic Insole printing machine/Pad Printer
The type is favored by major well-known brand sports shoe factories.
Use double horizontal scratching pad printing machine equipped with servo automatic lifting and storage mechanism, automatic feeding mechanism, and automatic discharging gripping mechanism, you just need to put the insole into the storage device. Then the machine will feed in, print and discharge automatically.
It is really fast and convenient.
■ Automatic Insole pad printing machine features:
-

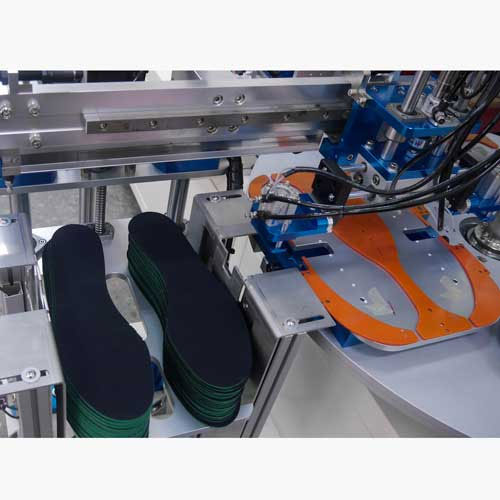

Pad printer can be equipped with automatic feeding positioning jig mechanism and automatic feeding gripping mechanism.
-

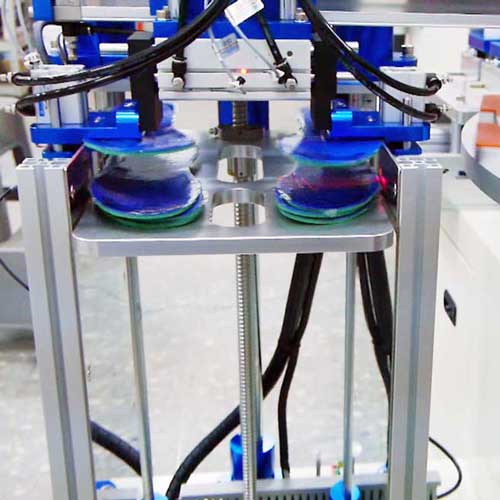

With automatic discharging gripping mechanism.
-

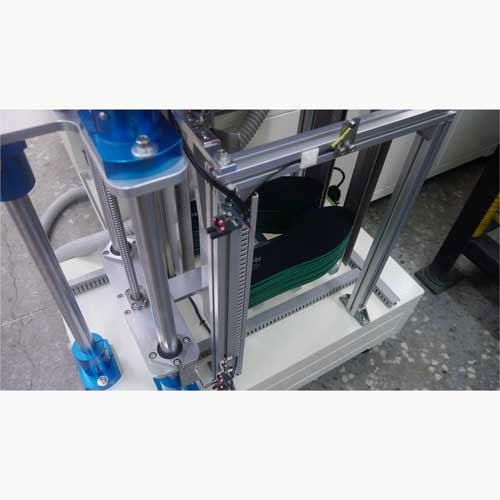

Servo automatic lift and storage mechanism (lengthened type).
-
Pad printer adopts 10.1" 65536 colors TFT touch screen and built-in 3 languages, traditional Chinese, English, Indonesian.
-
Programmable Logic Controller (PLC) control is easy to add functions.
-

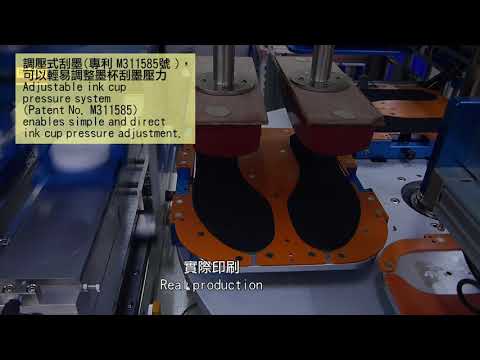

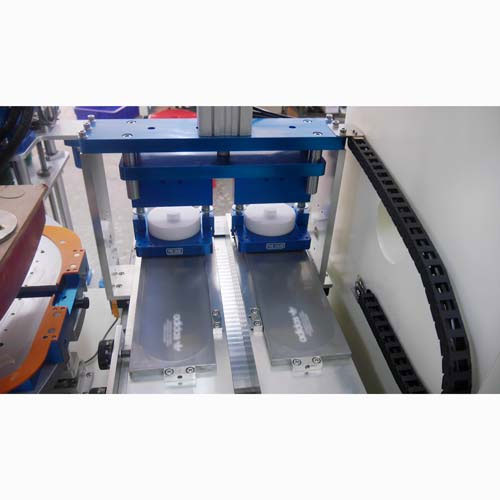

Exclusive Patented "Adjustable Ink-Scraping Device" (Patent No. M311585). Adjust Scraping Pressure Easily
-
Electronic Pressure Sensor
-
Embedded lighting equipment
-
Malfunction by Screen Display
-
uto Discharge Servo Fixture. Insoles could discharge automatically after printing into Servo fixture
-
Index Table with 4 insoles jigs.( Insoles printing size could change by switch jigs.. )
-
Easy to add additional devices
-
Ex. slide rail, round plate, oval plate, suction function, flip function, rotate function, and blow dryer shelf, etc
-
Specifications
| Model | FC-392CRC-MD4 |
|---|---|
| Color | 1(Two inkcups printing one pair of insole) |
| index Plate size(mm) | 800 |
| Cycles/hr | 600~700 pair |
| Machine Size (cm) | L:200 W:165 H:167 |
| Weight | 350 KGS |
| Pressure (kg/cm2 psi) | 4~6 |
| Power (A) Ampere | 10 |
| Voltage (V) | 220V |
| Max. Printing Area (mm) | 250 |
| Max. Height of Printed Object (mm) | 200 |
| Height -Pad Stand to Steel Plate (mm) | 300 |
| Steel Plate Size (mm) | L:350 W:100 H:10 |
Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.
