2-Color Pad Printer Machine
Insole Pad Printer/printing machine
- Features
- The two-color pad printing machine, combined with the insole positioning plate fixing fixture, can print both left and right insoles in one pass.
Description
This insole printing machine Manual input and automatic output, automatic printing. with adjustable ink cup pressure system (Patent No. M311585), which can easily adjusted the scraping pressure of the ink cup. The printing machine adopts powder coating on outer case, which serves delicate appearance and stiffer structure.
Insole Pad Printer/printing machine-FC-392CRC-MD
The type is favored by major well-known brand sports shoe factories.
It is really fast and convenient.
Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.
■ Insole pad printing machine features:
-
With automatic discharging gripping mechanism.
-
Pad printer adopts 10.1" 65536 colors TFT touch screen and built-in 3 languages, traditional Chinese, English, Indonesian.
-
Programmable Logic Controller (PLC) control is easy to add functions.
-
Exclusive Patented "Adjustable Ink-Scraping Device" (Patent No. M311585). Adjust Scraping Pressure Easily
-
Electronic Pressure Sensor
-
Embedded lighting equipment
-
Malfunction by Screen Display
-
uto Discharge Servo Fixture. Insoles could discharge automatically after printing into Servo fixture
-

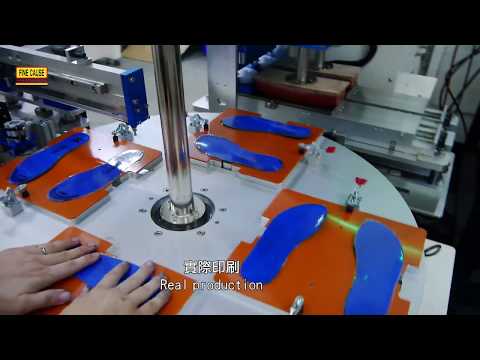

Index Table with 4 insoles jigs.( Insoles printing size could change by switch jigs.. )
-
Easy to add additional devices
-
Ex. slide rail, round plate, oval plate, suction function, flip function, rotate function, and blow dryer shelf, etc
-
Specifications
| Model | FC-392CRC-MD |
|---|---|
| Color | 1(Two inkcups printing one pair of insole) |
| index Plate size(mm) | 800 |
| Cycles/hr | 600~700 pair |
| Machine Size (cm) | L:200 W:130 H:167 |
| Weight | 350 KGS |
| Pressure(kg/cm2 psi) | 4~6 |
| Power (A)Ampere | 10 |
| Voltage (V) | 220V |
| Max. Printing Area(mm) | 250 |
| Max. Height of Printed Object(mm) | 200 |
| Height -Pad Stand to Steel Plate(mm) | 300 |
| Steel Plate Size(mm) | L:350 W:100 H:10 |
