1-Color Pad Printing Machine
Indexing table pad printing machine by single color ink cup
- Features

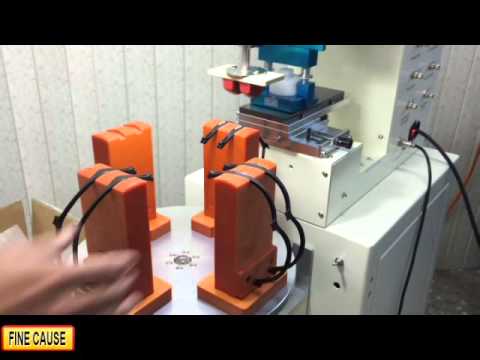

- Pad printing machine with detachable movable Jig.
Description
indexing table pad printer use Electric Air Pressure Sensor. Sheet Metal + Powder Coating Machine Body. Fashion Appearance (Patent No. M456283).Exclusive Patented Adjustable Ink-Scrape Mechanism – Ink-Scrape pressing pressure is adjustable. (Patent No. 311585)
Indexing table pad printing machine by single color ink cup-FC-161ARC-RC
Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.
■ Features :
-
Indexing table pad printing machine use Exclusive Patented Adjustable Ink-Scrape Mechanism – Ink-Scrape pressing pressure is adjustable. (Patent No. 311585).
-
Sheet Metal + Powder Coating Machine Body. Fashion Appearance (Patent No. M456283)
-
Malfunction Detector – Display on Screen
-
Indexing table pad printer use 7.0" HMI touch panel with 65536 color TFT, built-in Chinese, English and Bahasa language.
-
Input & output full display
-
Abnormal warning display, convenient for quickly eliminate abnormalities
-
Digital pressure sensor, automatic alarm display for insufficient air pressure
-
Able to set the number of times which Pad-Print Printing is used, and it will automatically stop and display inform when the number is arrives.
-
-
PLC Programmable Logic Controller easy to add and modify function
-
pad printing machine use Electric Air Pressure Sensor
Specifications
| Model | FC-161ARC-RC |
|---|---|
| Color | 1 |
| index Plate size(mm) | 330 |
| Cycles/hr | 1200~1800 Pcs |
| Machine Size (cm) | L:90 W:40 H:143 |
| Weight | 155KG |
| Pressure(kg/cm2 psi) | 4~6 |
| Power (A)Ampere | 10 |
| Voltage (V) | 220V |
| Max. Printing Area(mm) | 55 |
| Max. Height of Printed Object(mm) | 180mm |
| Height -Pad Stand to Steel Plate(mm) | 100 |
| Max. Steel Plate Size(mm) | L:200 W:90 H:10 |
FineCause is professional ink cups and ink plate pad printing machine, servo pad printing machine, custom pad printer manufacturer.
