Oven/Vertical Oven
Conveyor UV LED Curing Machine
FC-8250-LED
- Features
- The LEDs equipped in this conveyor UV led curing machine have a lifespan exceeding 10,000 hours.
Description
With 395nm LED light, it has the advantages of low temperature and fast curing. Suitable for drying and curing of various UV adhesives, UV inks and UV coatings. UV light height is adjustable. Conveyor belt speed displays by LED. It can be changed to move in forward or reverse direction, which is convenient for process management. The body adopts heat-resistant and high-density Teflon mesh, which can reduce the vibration generated during transportation and is not easy to stick the UV materials.

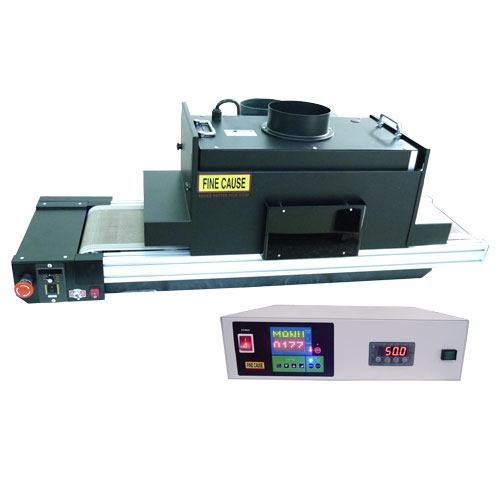

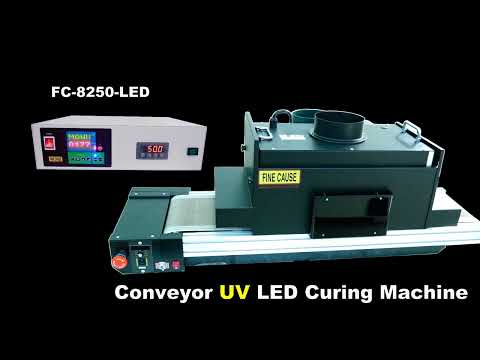

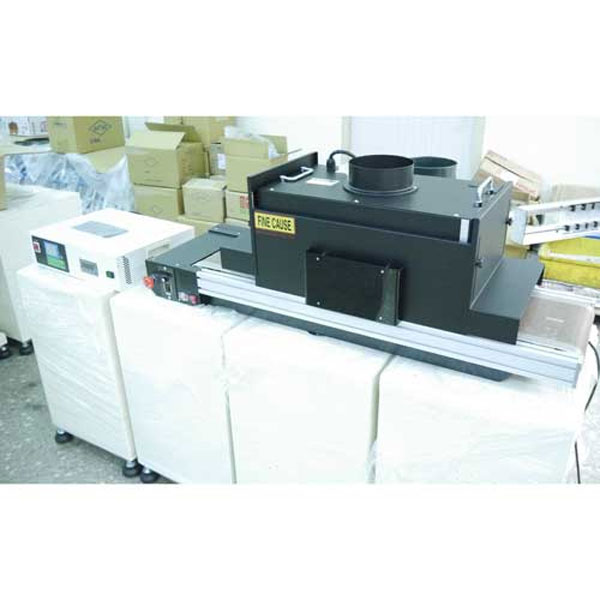

FC-8250-LED Conveyor UV LED Curing Machine
- The light can be turned on and off immediately. There is no need of standby time.
- LED lamp life is more than 10,000 hours.
- Curing time and output power can be set.

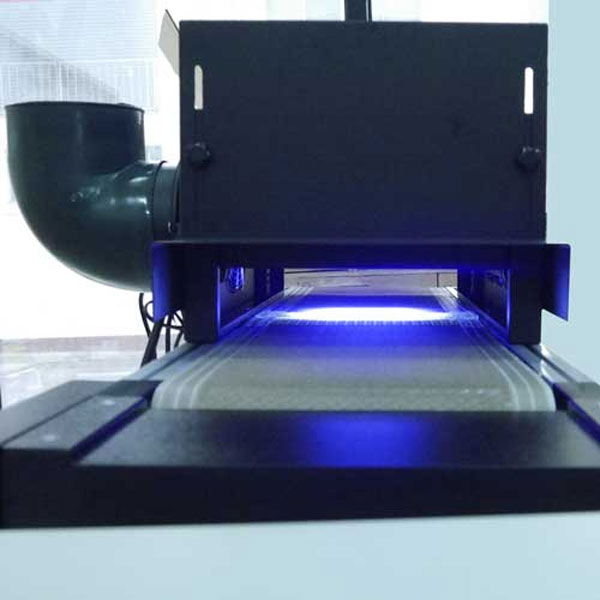

- UV light height is adjustable. Conveyor belt speed displays by LED.

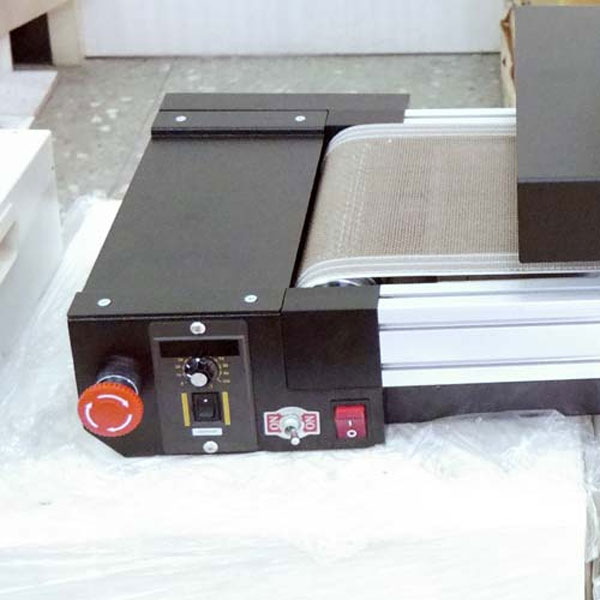

- Conveyor can be changed to move in forward or reverse direction, which is convenient for process management.
- The lamp sets adopt a split-type design, which is convenient to adjust the height.
- The suitable height for objects is adjustable.
- With the function of recording the lamp used hour.
- The body adopts heat-resistant and high-density Teflon mesh, which can reduce the vibration generated during transportation and is not easy to stick the UV materials.
- Fast drying and curing speed. Easy to use.
- Suitable for drying and curing of various UV adhesives, UV inks and UV coatings.
Specifications
| FC-8250-LED | |
|---|---|
| Voltage | 100-240VAC 50/60HZ) |
| LED Array Area/Electric Power | 100X100mm/500W |
| Maximum UV Intensity | 1000mW/cm2 (UVA)** |
| Main Wavelength | 395nm(peak) |
| Average Lamp Life | 10000 hr |
| Intensity Setting Range | 0-100% |
| Timer Setting Range | 1 sec-999min |
| Adjustable UV Chamber Height Range | 20-180mm |
| Entry Width | 250mm |
| Adjustable UV Light Shelter Height Range | 10-150mm |
| Adjustable Conveyor Speed | 50-5000mm/min |
| Conveyor Moving Direction | Adjustable forward and reverse direction |
| Cooling Method | Air cooling, using a magnetic levitation exhaust system |

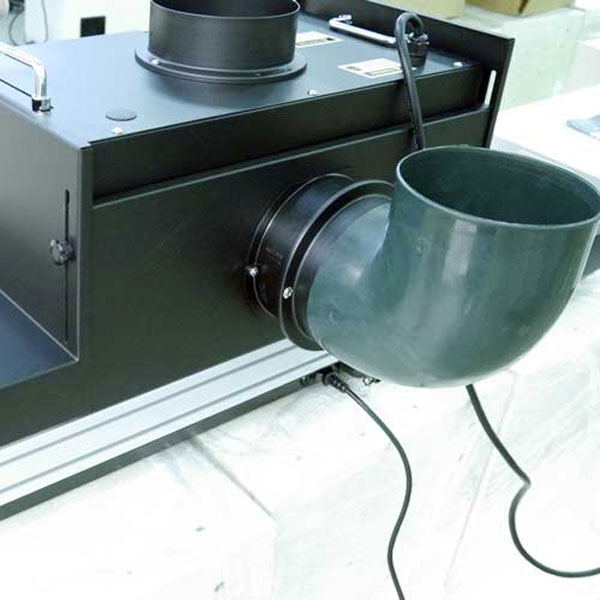

| Exhaust System | 6 inch air outlet frame at above, which is able to be used with factory exhaust system |
| Dimensions（UV Chamber） | L:530 * W:310 * H:200 mm |
| Dimensions（Conveyor） | L:1100 * W:310 * H:110 mm |

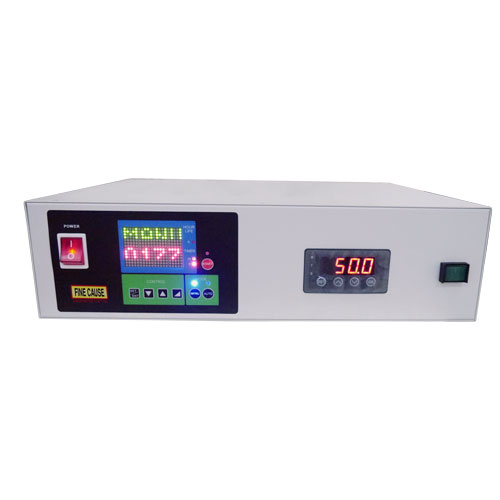

| Dimensions（Controller） | L:415 * W:330 * H:120 mm |
| Weight | Main unit: 9KG / Conveyor lamp set: 37KG |
