Oven/Vertical Oven
Infrared conveyor dryer
EE-2
- Features
- High Drying Efficiency, Good for Massive/Auto Production, Stable Transmission System. Can choose stainless steel wire or telfon wire based on product characterics
Description
The infrared conveyor dryer features a stable transmission system, and an exhaust adsorption device can be installed at the bottom of the conveyor belt, making it suitable for lightweight and thin products.

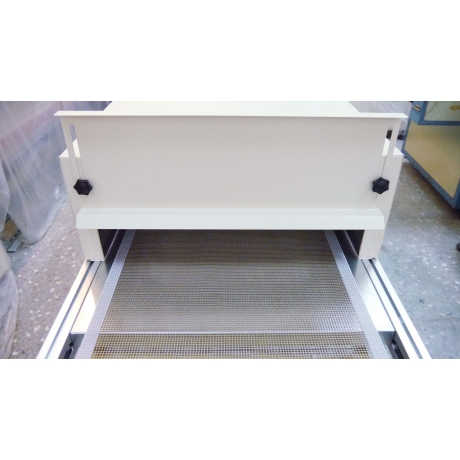

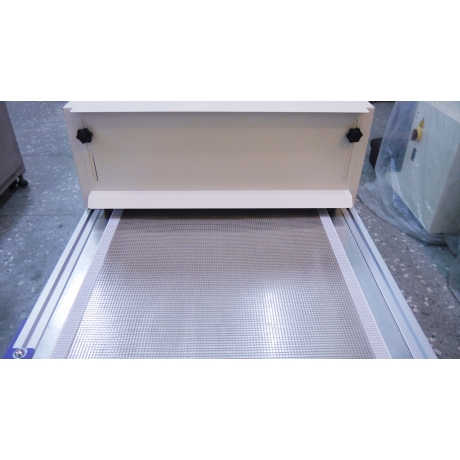

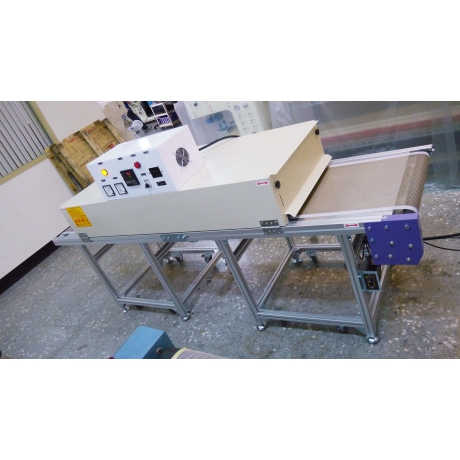

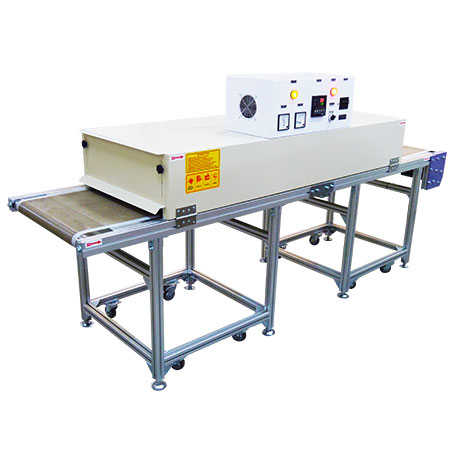

Infrared conveyor dryer
- High Drying Efficiency, Good for Massive/Auto Production
- Stable Transmission System. Can choose stainless steel wire or telfon wire based on product characterics.
- Apply the breeze circulation system if the product requires.
- Can choose long-wave, medium-wave or short-wave infrared heating tube based on product characteristics.
- Equipped with a microcomputer PID thermostat and SSR or SCR power control system. It controls precise temperature control and has high stability.
- Equipped with "Load Protection Switch". High Safety.
- Adjustable Temperatures: Normal to 300℃
Suitable for：
- Plastic printing drying, plastic protective film, paper glazing, PCB board, soft board, electronic parts , Soft PCB, Resistors, E-Printing, E-Spraying, Coating, and etc.
Specifications
| EE-2 Infrared conveyor dryer | |
|---|---|
| Teflon mesh belt specifications (cm) | L260 cm*W56 cm*Mesh belt height 77 cm |
| Infrared drye area specifications (cm) | L170 cm*W60 cm*15 cm |
| Equipment dimension (cm) | L265 cm*W70 cm*H138 cm |
