Laser Engraving Machine
CO2 Laser Engraver Machine
- Features
- Laser engraving area: 110*110mm or 175*175mm (flat).
- Light of this wavelength can be transparently absorbed, and it is commonly used for laser engraving of thin films.
Description
CO2 Laser Engraving Machine is the ideal solution for engraving acrylic and is also suitable for fabric, leather, paper, wood, bamboo, plastic, rubber, silicone, dual-color boards, and more. It uses non-contact processing, which does not damage or contaminate materials. No need for time-consuming and costly mold and plate making.
BFC-08013-C30CK
Laser Engravers/CO2 Laser Engraving Machine/CO2 Laser Engravers
Features of the CO2 Laser Engraving Machine:
-
Compatible with a wide range of materials: acrylic, fabric, leather, paper, wood, bamboo, plastic, rubber, silicone, dual-color boards, etc.
-

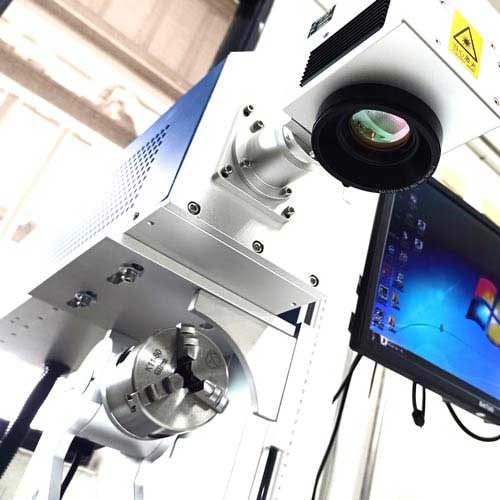

Equipped with a high-quality laser source and galvanometer scanning system for efficient engraving.
-
Stable laser power output, with adjustable pulse frequency controlled via engraving software.
-
Multi-hole platform design makes it easy to secure fixtures.
-
Non-contact processing avoids surface contamination.
Important Note When Engraving Acrylic with a CO2 Laser:
Acrylic materials come in two types, and the engraving results differ significantly:
.jpg)
▲ Cast Acrylic:
Made by pouring liquid acrylic into molds.
Higher cost, better quality, and harder material.
Engraves with a white, frosted effect — ideal for signage and artistic products.

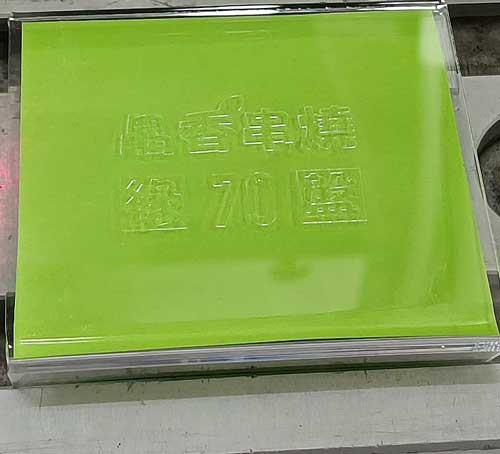

▲ Extruded Acrylic:
Produced through mechanical extrusion, more cost-effective and softer.
Engraving results are clear and transparent, not white.
Better uniformity, but not recommended if you want a white engraving effect.
👉 To achieve a white engraving effect, we recommend using Cast Acrylic Sheets.
The material's properties cause it to frost or whiten under CO2 laser engraving, producing sharp and high-contrast results — perfect for signage, decorative plates, creative products, and artwork.
Creative Applications with CO2 Laser:
🔳 Even QR codes can be engraved! Link to photo albums, catalogs, menus, websites — endless creativity, limitless business opportunities!
Advantages of Laser Engraving:
-
Delivers fine and detailed designs with high clarity.
-
Resistant to fading from touch, friction, or cleaning.
-
Works on uneven or textured surfaces due to non-contact engraving.
-
Eliminates the need for traditional molds or printing plates.
-
Supports small-batch production with flexible content customization.
How to Choose the Right Laser Engraving Machine?
Specifications
| Specification | BFC-08013-C30CK- CO2 Laser Engraving Machine |
|---|---|
| Laser Power | 30W |
| Laser Type | CO2 Laser Tube (9.3μm) |
| Control System | JCZ (User-friendly interface) |
| Operating Voltage | 220V, 50Hz |
| Power Consumption | ≤600W |
| Engraving Area | 110*110 mm or 175*175 mm (flatbed) |
| Engraving Speed | ≤7000 mm/s (depending on material and desired effect) |
| Focusing Method | Manual |
| Positioning Accuracy | <0.01 mm |
| Minimum Engraving Size | 2*2 mm |
| Communication Interface | USB |
| Supported File Formats | DXF, BMP, PLT, AI, JPG, etc. |
| Cooling Method | Air cooling |
| Display Screen | 19-inch |
| Machine Dimensions | 80*60*173cm (L*W*H) |
