4-Color Pad Printer

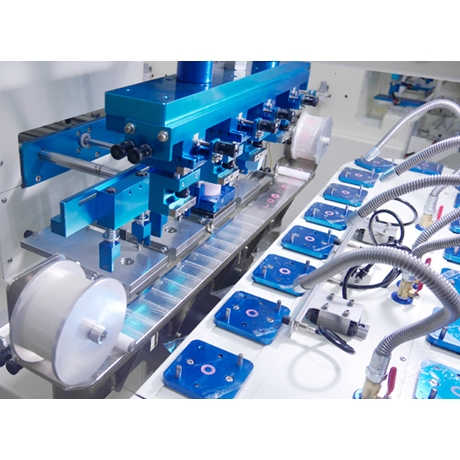

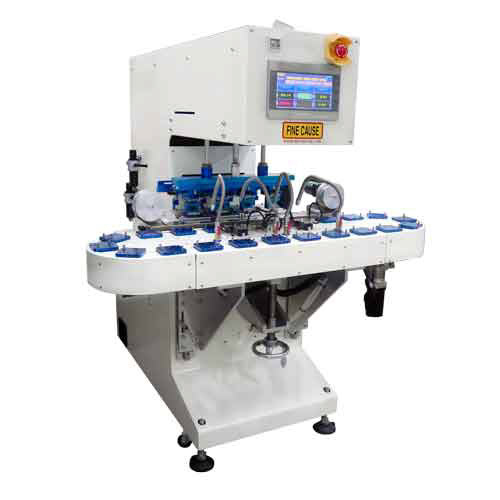

4-color pad printing machine with carousel

FC-264AOC

Features: Four-color pad printing machine, equipped with a 22-station conveyor belt.; The number of stations can be adjusted according to the printing material.

Description

The pad printing machine has precise positioning, with a maximum error of ±0.05mm for continuous X and Y coordinate operation and ±0.01mm for repeated positioning operation. It features accurate and fast four-color overprinting, making it suitable for precision printing.

Add Inquiry (0)

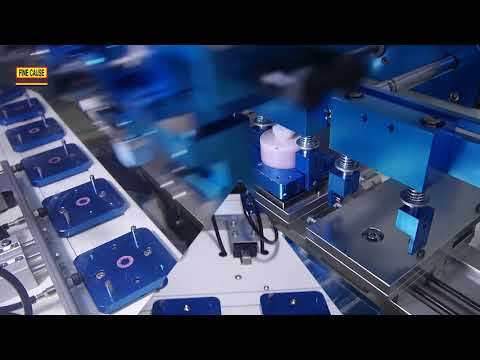

4 Color Ink Cup Pad Printing Machine with Servo w/Conveyor-FC-264AOC

The advantage is that using four color pad printer can finish product at once.

Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.

■ Features：

The pad printing machine uses a color touch screen, built-in five different languages-Chinese (Traditional), English, Indonesian, Vietnamese and Thai.
Easy to add additional devices.
- Ex. slide rail, round plate, oval plate, suction function, flip function, rotate
function, and blow dryer shelf, etc.

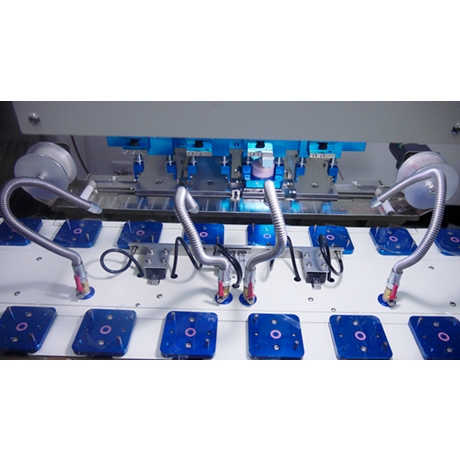

Four stations with positioning cylinder for more precision printing
Automatic sensor inlet pressure, lower than the set value to suspend printing and alarm
Using 60mm ink cup
Color touch panel with 7 inches, controlled by Panasonic PLC
Conveyor rotary using precision servo motor driver
The pad printing machine uses Exclusive Patented Adjustable Ink-Scrape Mechanism (Patent No. M311585)
Adjustable steel plate base – able to change angles front and back, left and right
heated-air dryer – to decrease ink drying cycle time
Adjustable print speed and turntable running speed – it can match with production speed
The pad printing machine uses Sheet metal + Powder coating machine structure. (Patent No. M456283)

■ Suitable for：

coins printing, toys, stationery, watches, accessories, electronic products, switches, buttons, lighter surface and so on.

Plastic printing, metal finished products, semi-finished products, glass ceramics product or uneven surface printing.

Additional precision indexing plate makes it easy to access materials.

It is also able to expand the automation peripherals to increase production

Positioning precision test

First positioning		Second repositioning		error
Fixture number	X axis	Y axis	X axis	Y axis	X axis	Y axis
NO.1	0	0.01	0.001	0.003	-0.001	0.007
NO.2	0.039	-0.003	0.038	-0.009	0.001	0.006
NO.3	-0.001	0.001	-0.001	0	0	0.001
NO.4	0.021	0.017	0.031	0.02	-0.01	-0.003
NO.5	0.022	-0.025	0.024	-0.034	-0.002	0.009
NO.6	0.026	-0.015	0.027	-0.02	-0.001	0.005
NO.7	0	-0.007	0.004	-0.013	-0.004	0.006
NO.8	0.007	0.02	0.009	0.025	-0.002	-0.005
NO.9	0.04	0.016	0.041	0.011	-0.001	0.005
NO.10	-0.007	0	0.006	-0.009	-0.013	0.009
NO.11	0.039	0.009	0.039	-0.012	0	0.021
NO.12	-0.033	-0.023	-0.03	0.026	-0.003	-0.049
NO.13	-0.031	0.003	-0.033	-0.002	0.002	0.005
NO.14	-0.016	-0.003	0.019	-0.006	-0.035	0.003
NO.15	0.044	-0.027	0.041	-0.028	0.003	0.001
NO.16	0.006	0	-0.008	0.002	0.014	-0.002
NO.17	-0.033	-0.016	-0.037	-0.005	0.004	-0.011
NO.18	-0.007	-0.038	-0.017	-0.035	0.01	-0.003
NO.19	0.051	-0.013	0.047	-0.009	0.004	-0.004
NO.20	0.031	-0.042	0.031	-0.035	0	-0.007
NO.21	0.003	-0.028	-0.011	-0.024	0.014	-0.004
NO.22	-0.029	0.017	-0.029	0.018	0	-0.001
The maximum error of coordinate continuous operation +-0.05mm, the maximum error of repeated positioning and continuous operation +-0.01mm

Specifications

Machine Type	FC-264AOC
Color	4
Plate size(mm)	L:200 W:90 H:10
Cycles/hr	900~1200 Pcs
Machine Size (cm)	L:150 W:138 H:160
Weight	650KG
Pressure (kg/cm2 psi)	4~6(kg/cm2 psi)
Power (A) Ampere	10A
Voltage (V)	220V
Max. Printing Area (mm)	Ø50
Height -Pad Stand to Steel Plate (mm)	94
Max. Steel Plate Size (mm)	90*200
The maximum error of coordinate continuous operation +-0.05mm, the maximum error of repeated positioning and continuous operation +-0.01mm
