Oven/Vertical Oven
UV LED curing lamp/UV LED curing system
FC-L200
- Features
- The UV LED curing lamp allows users to freely adjust the UV lamp irradiation intensity, duration, and irradiation mode via a human-machine interface touch screen.
Description
The cables between the UV LED lamp set and the main unit are made of a bend-resistant material, extending the lifespan. Multiple signal drives achieve independent control, independent working parameters adjustment, and more function
FC-L200 - UV LED curing lamp/UV curing machine/UV LED curing system
The UV LED lamp intensity, duration, and operating mode can be freely adjusted through the HMI touch screen
- Touch screen settings: Full HMI operation allows easy configuration of UV LED lamp working parameters. Most UV LED lamp modules on the market typically only feature an ON/OFF switch.
- Multi-functional parameter settings: Allows for flexible adjustment of UV LED lamp intensity, duration, and operating modes.

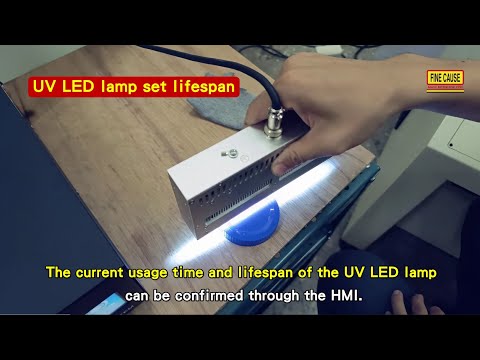

- UV LED lamp set lifespan: The current usage time and lifespan of the UV LED lamp can be confirmed through the HMI.
- Multiple signal drives: Achieve independent control, independent working parameters adjustment, and more function.
- Bend-resistant cable: The cables between the UV LED lamp set and the main unit are made of a bend-resistant material, extending the lifespan.
- Signal handshake: Dry contact method can be used to do signal handshake with automated equipment. The UV LED lamp set will only operate when it receives the signal notification from the equipment.
- Real-time equipment monitoring: Allows real-time detection of UV LED lamp operating status and various abnormal alarms.
- Equipped with 4.55" touch screen.
- Multilingual support
- Built-in 9 languages, including English, Simplified Chinese, Traditional Chinese, Japanese, Korean, Spanish, German, French, Vietnamese, with one-click quick switching.
Specifications
| FC-L200 - UV LED curing lamp/UV curing machine/UV LED curing system | ||
|---|---|---|
| Main Unit Specifications | Dimensions (mm) | 330X140X130 |
| Color | Black | |
| Input Power | 220VAC | |
| Standby Power | <50W | |
| Operating Interface | HMI Touch Screen + Password | |
| Power Adjustment Range | 10~100% | |
| Rear Signals / Interface | Foot Switch、PLC、RS232 | |
| LED Light Set | 1 PCS | |
| LED Specifications | Wavelength (nm) | 395 |
| UV Intensity (mw/cm^2) | >8000 | |
| Effective Curing Distance (mm) | 0~50mm | |
| Measurement Instrument | EIT | |
| Power Consumption | < 200W | |
| Dimensions (mm) | 204x35x100 | |
| Cooling Method | Air Cooling | |
| Cable Length | 2m | |
| Weight | Approx. 1 kg | |
| Color | Silver | |
