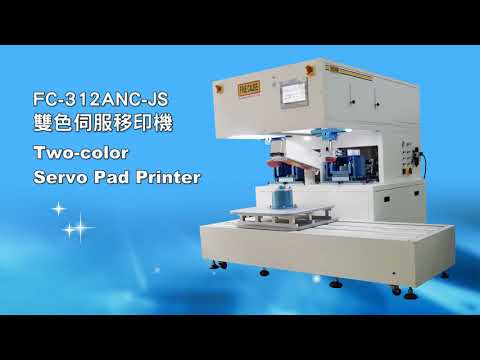

Large Size Pad Printing Machine(two-color servo pad printer)

Large Size Pad Printing Machine(two-color servo pad printer)  -FC-312ANC-JS



Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.

■ Feature :

• 10.1-inch human-machine 65536-color TFT touch control interface; PLC control - easy to edit operations

• Pad printer is equipped with a servo motor - adjustable and precise printing stroke

• Tuned cliche plate platform and aluminum fixture

• Capacity: 1 piece/ 9 seconds, 400 pcs/ hour (excluding manual input/output time)

• The height-above-the-ground of the fixture platform is about 450~550mm - facilitates feeding process

• Installed hot air mechanism (apprx. 80 degrees Celsius) - shortens drying time

• Center positioning fixture, which can be manually adjusted the height

• Reinforcement of the sliding table can bear 60kg

• Fault detection by scrolling texts display; electronic air pressure sensing

• Adjustable doctoring device (patent no. M311585) - makes easier adjustment of the doctoring pressure

• Built-in smart bar graph shows the production capacity, operating time and production speed in the past 30-days; beyond 30 days, information displayed by texts

• Multi-color touch screen, built-in 3 languages: traditional Chinese, English and Indonesian

Specifications

FineCause pad printer is able to expand automation equipment according to the material to increase production capacity.

The best pad printing machine in FineCause

~Looking for pad printing machine inquire to FineCause

FineCause is professional ink cups and ink plate pad printing machine, servo pad printing machine, custom pad printer manufacturer.
