Inspection Machine
Surface Hardness Abrasion Tester
FC-SHW001
- Features
- The surface hardness abrasion tester tests the wear resistance and colorfastness of printed objects. The test is stable and the data is accurate.
Description
You're going to have a more accurate method to test the printing ink adhesion. This tester is used to test the abrasion resistance and the decolorization condition of the printed objects. With stable test and accurate data, the test results are representative. Even the 【finished product】 can be tested directly!

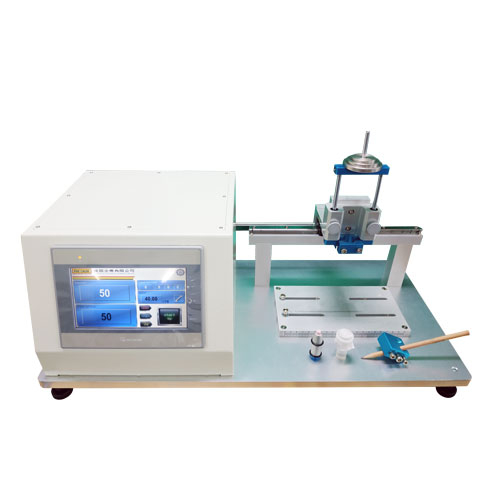

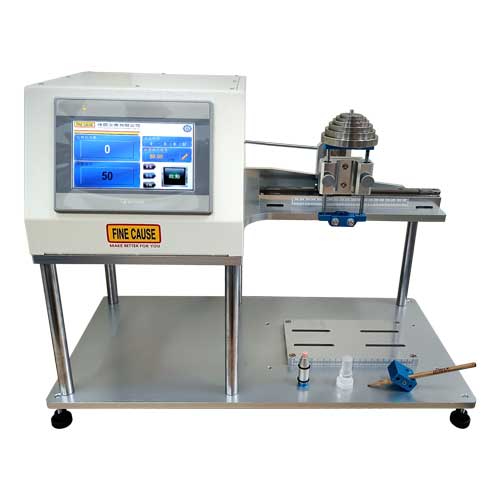

FC-SHW001 Surface Hardness Abrasion Tester

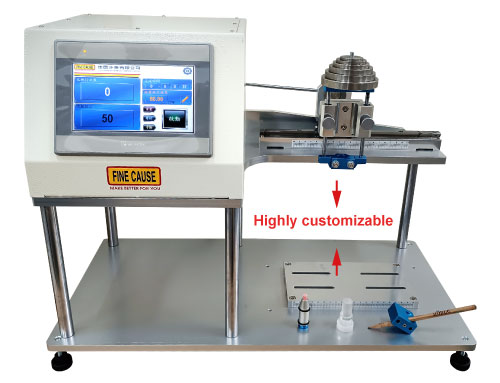

qCustomized height
The surface hardness abrasion tester can apply 3 types of abrasive heads, eraser, pencil, and alcohol cotton for abrasion test. Furthermore, the head for pencil can also be divided into vertical and 45 degrees angle. Test the abrasion resistance and the decolorization condition of the printed objects. With simple operation, stable test, and accurate data, the test results are representative. Even the "finished product" can be tested directly!
- The arm of the abrasion tester can be lifted up and down so that the abrasion head can be replaced quickly and easily.
- Abrasion stroke (distance) and speed can be adjusted according to the inquiry.
- The starting point and terminal point of the abrasion stroke can be set according to the needs.

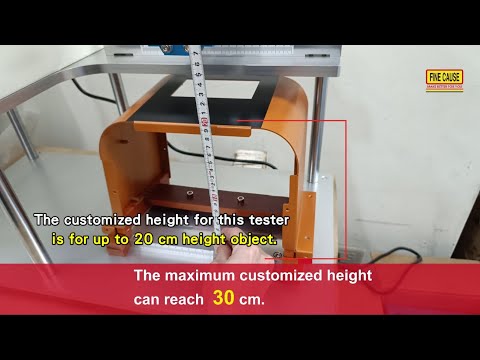

- The height of the surface hardness abrasion tester that can be measured can be customized, up to 300mm.

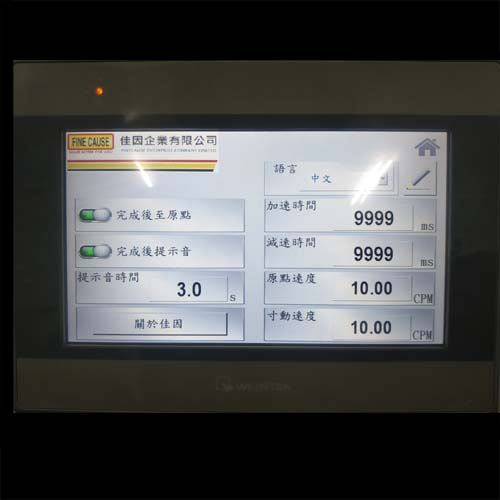

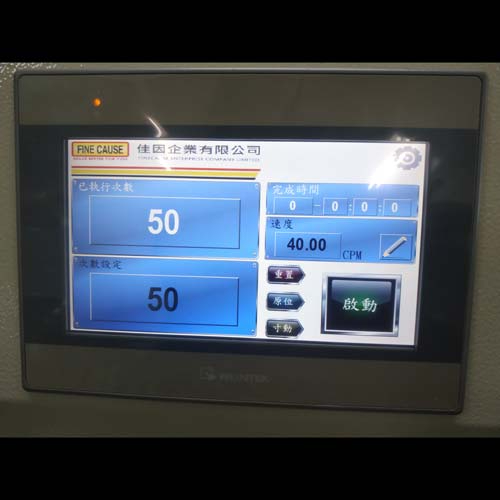

- With 7" 65536 color TFT touch screen, big buttons are for easy operation!
- Adopt PLC that the functions is easy to add or modify.
- Built-in 5 languages, Traditional Chinese, English, Indonesian, Vietnamese, and Thai.
- The abrasive head is designed not to rotate that the test is more stable and the data is more accurate.
- The abrasion tester is equipped with 3 types of abrasive heads, which can be replaced at will.
- Adopt precision bearings to ensure stable downforce and fluency.
- Both flat and curved surface can be tested.
- With standard weights: 25g, 50g, 100g, 200g, 300g,and 500g. without putting weights, origin is 150g.※It can be customized according to the required weight.
- Control touch panel 10~120 ±1% CPM; speed can be set precisely.The number of cycles can be set. The time can be estimated automatically. The device will stop after the test is completed.

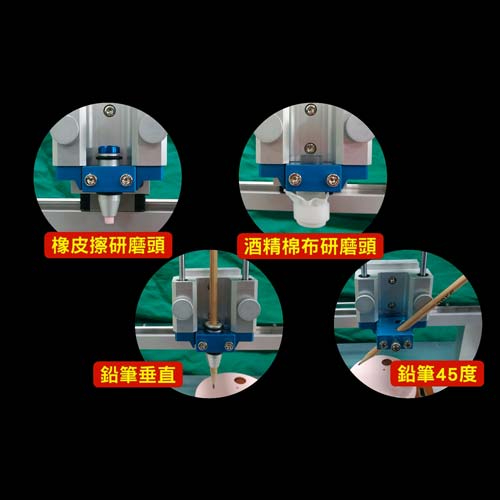

- Abrasion Head
2. Ø20 mm alcohol cotton abrasion head
3. Abrasion head for pencil in 45 degree angle
Specifications
| FC-SHW001 | |
|---|---|
| Voltage | 110V~220V |
| Abrasion Distance | 0~120mm adjustable |
| Applicable Object Size | Width 10~200mm; maximum thickness 100mm ★The height of the surface hardness abrasion tester that can be measured can be customized, up to 300mm. |
| Machine Size | 650x320x370mm |
| Machine Weight | 22kg |
