Inspection Machine
Pad printing pads Inspection Machine by Laser
FCPL-CS
- Features
- The printing pad straightness inspection machine will automatically distinguish inspection result that is OK or NG.
Description
Quickly and accurately inspect the straightness of pad printing heads. Customizable head fixing mechanisms are available to suit various head lengths. Precision servo motor control allows for setting the detection speed and revolutions, and automatically records measurement data.

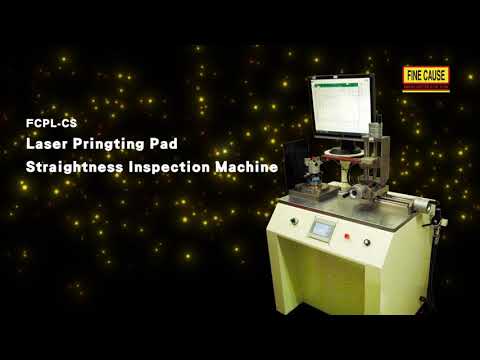

Pad printing pads Inspection Machine by Laser-FCPL-CS
Quick and accurate inspection of printing pad straightness.
FineCause has the service of "customized design of printing pad mold" for pad printing machine. We're seriously strict on inspection as well, which use "laser printing pad straightness inspection machine" to quick and accurately inspect the printing pad.
FineCause has the service of "customized design of printing pad mold" for pad printing machine. We're seriously strict on inspection as well, which use "laser printing pad straightness inspection machine" to quick and accurately inspect the printing pad.
- The seat for the laser detection distance is adjusted by the scale hand wheel.
- Adopt electronic air pressure detection.
- Suitable for Ø12~Ø30mm printing pad holder (3 jaw chuck clamping).
- The printing pad fixing mechanism can be designed according to the requirements, so both long and short printing pad can be shared.
- Control by precise servo motor. The detection speed and turn number can be set.
- Adjustable laser head detection position in X,Y,Z direction.
- Adopt color touch panel. The inspection standards can be set.
- The printing pad straightness inspection machine will automatically distinguish inspection result that is OK or NG.
- When the tolerance value is exceeded, the warning sound and the text marquee display notification.
- Automatically record measurement data to the computer.
- Data transfer to computer Excel table.
Specifications
| FCPL-CS | |
|---|---|
| AC | 220V, Single Phase |
| Applicable Printing Pad Holder Spec. | Ø12~30 mm |
| Equipment dimension (cm) | 130x60x199cm |
| Net Weight | 220kg |
