Curved Screen Printing Machines
Small Curved Screen Printer By Servo Motor
- Features
- This screen printing machine has a maximum printing area of 140*200mm container.
Description

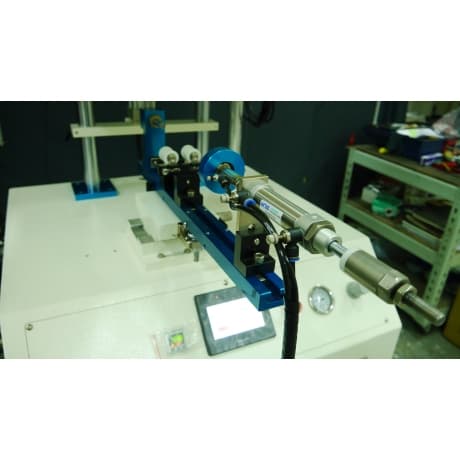

curved screen printing machine application : printing for curved surface, cylinder objects, tubes, shampoo bottles, cosmetic bottles. the precision slide rail provides a stable support for the scraper seat, allowing the entire scraping process to be controlled within a fine tolerance range.

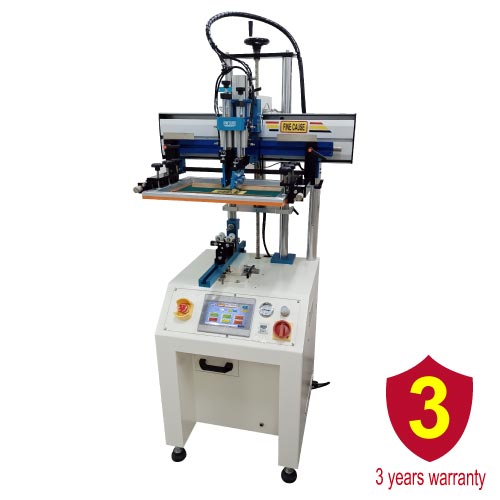

Small Curved Screen Printer By Servo Motor-FA-300RSN
Fine Cause's curved screen printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring
■ Feature:
-

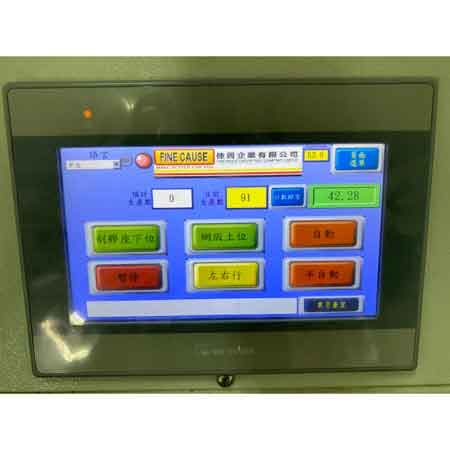

This curved screen printing machine adpots 7.0 inches multicolor color touch screen with 65536 colors TFT;The man-machine interface can be easily switched to select the language:English, Indonesian, Vietnamese ,Thai andTraditional Chinese.
-
Input & output full display
-
Abnormal warning display, convenient for quickly eliminate abnormalities
-
Digital pressure sensor, automatic alarm display for insufficient air pressure
-
Able to set the number of times which silk screen is used, and it will automatically stop and display inform when the number is arrives.
-
PLC Programmable Logic Controller easy to add and modify function
-
-
Servo ink Scraping System provide the entire scraping process able to control within a fine tolerance.
-

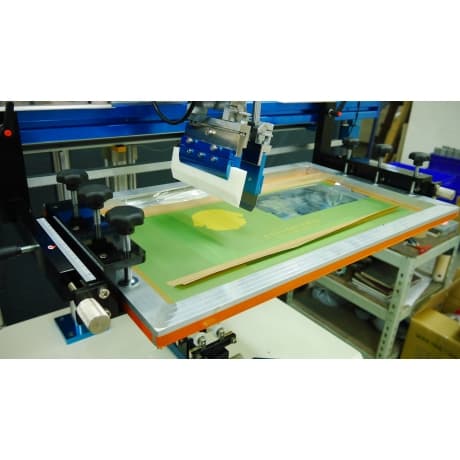

Silk screen printing stencil frame holder left-right moving by linear guide, smoothness and more precision than T-track.
-
Precise CNC machining assembly bushing up-down system attain high precision, easy to move up and down, stable and quiet.
-
Pneumatic Squeegees up down station
-
pressure adjustable
-
Easy to positioning squeegees, without height-offset or ink flow out problem comparing to traditional mechanism
-
More convenience to clean the silk screen
-
-

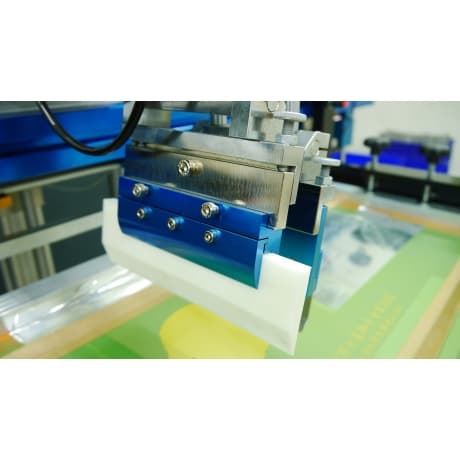

curved screen printing machine adopts a magnetic squeegee clip (Patent No. M390871) makes the squeegee position can be slided easily and is simple to adjust and disassemble.
-
Built in smart bar chart, production data displayed by graphs in the past 30 days. Connect with FineCause smart factory APP, no matter where you are, you can overview the production data of your curved screen printing machine.
-
The precision slide rail provides a stable support for the scraper seat, allowing the entire scraping process to be controlled within a fine tolerance range
-

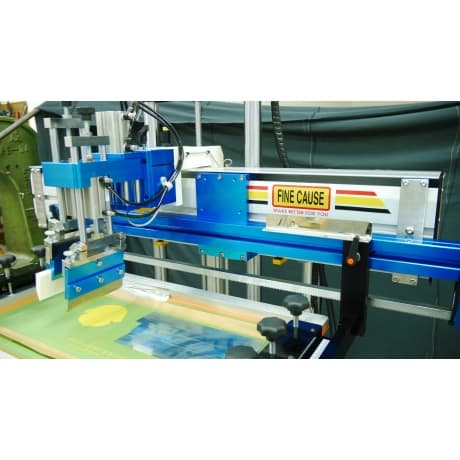

This curved screen printing machine adopts servo motor design. Using precise servo motor, ball screw and linear guide for ink scraping, movement stable, printing more accurate.
-
It's different with pneumatic cylinder type screen printer, will not generate ink leaking problem which affected by the air pressure and the left and right anti-collision buffers.
■ Application :
Printing for Curved Surface, Cylinder Objects, Tubes, Shampoo Bottles, Cosmetic Bottles.
Specifications
| Model | FA-300RSN | FA-400RSN | FA-500RSN | FA-600RSN |
|---|---|---|---|---|
| Color | 1 | 1 | 1 | 1 |
| Cycles/hr | 600~1800 | 600~1800 | 600~1800 | 600~1800 |
| Machine Size (cm) | L: 77W: 70 H: 168 | L:90 W:80 H:170 | L:100 W:80 H:170 | L:110 W:80 H:170 |
| Pressure(kg/cm2 psi) | 4~6 | 4~6 | 4~6 | 4~6 |
| Power (A)Ampere | 5A | 5A | 5A | 5A |
| Voltage (V) | 220V，單相 | 220V | 220V | 220V |
| Max Printing Area(mm) | 140*200 | W300*L300 | W400*L300 | W500*L300 |
| Platform Moving Distance(mm) | 300 | 400 | 500 | 600 |
| Platform Height (mm) | 0~150 | 0~150 | 0~150 | 0~150 |
| Max. Screen Plate Size (cm) | 30*60 | 50*72 | 50*82 | 50*92 |
| Screen Plate Trimming Distance (mm) | ±25 | ±25 | ±25 | ±25 |
| Platform Trimming Distance (mm) | ±8 | ±8 | ±8 | ±8 |
| Platform Tilt Angle/ Scraping Stand Lift Distance(mm) |
10度/50 | 10/50 | 10/50 | 10/50 |
| Weight | 165KG | 180 KG | 195 KG | 210 KG |
