Curved Screen Printing Machines
Curved Screen Printer by Servo Motor (Rotary Servo)
- Features
- The rotary motion of the curved screen printing machine is driven by a servo motor, which is very stable.
Description
Maximum printing area is 300*300. No need of gear racks and pinions. Diameter digital input. Can be set separately: positioning start, end printing point, automatic rotation printing.
👉Even the fine scale lines can be printed perfectly. The printing speed can be adjusted by yourself. The printing process is accurate and fast!
👉No need to position manually any more. The first choice for printing novice. Make you have a master printing level!
FA-400RSS-Curved Screen Printer by Servo Motor (Rotary Servo)
Curved Screen Printer Feature
-
Pneumatic squeegee set lifts linearly.
-
Traditional manual lift is easy to cause the squeegee height to shift.
-
Screen stencil cleaning is faster.
-
When the squeegee is lifted manually, it is easy to cause the ink to flow out of the screen stencil.
-
-
Servo scrapes ink smoothly without pauses.
-
Magnetic squeegee clip (patent M390871) - the squeegee position can be slided easily. Simple to adjust and disassemble.
-
Precision guideways are used to provide stable support for the squeegee set. The entire ink doctoring process can be controlled within a fine tolerance range.
-
Ink doctoring printing adopts servo motor with linear guideway and ballscrew.
-

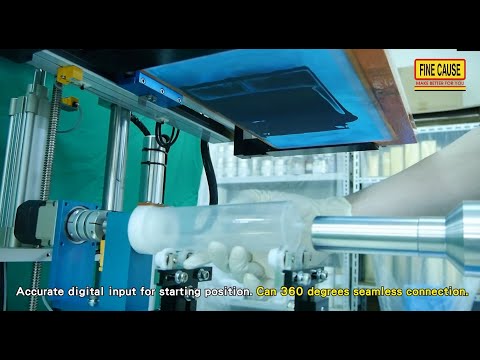

Accurate digital input for starting position. Can 360 degrees seamless connection.
-
The upper and lower sleeves are extruded that the weight is reduced. The operation is fast, stable, and quiet.
-
-
7.0" HMI touch panel , The man-machine interface can be easily switched to select the language:English, Indonesian, Vietnamese ,Thai andTraditional Chinese.
-
With I/O (input/output), each sensor location is shown in whole area of the machine.
-
Abnormal alarm display is convenient for operator to quickly eliminate abnormalities.
-
Electronic air pressure sensing will alarm automatically for insufficient air pressure.
-
Able to set the number of times which silk screen is used, and it will automatically stop and display inform when the number is arrives.
-
-
Adopt PLC that is easy to add or modify functions:
-
Servo running position is shown on the screen.
-
Multiple group formula storage. Parameters setting.
-
-
This screen printer has production history function: built in smart bar chart that the productivity in the past 30 days, operation time, production speed can be shown.
-
The machine has WIFI function; you can download the FineCause APP to connect the machine. No matter where you are, you can see the productivity report.
Specifications
| Model/Specification | FA-400RSS |
|---|---|
| Printing Color | 1 |
| Productivity/hour | 600~1800 |
| Machine Size (cm) | L:90 W:80 H:170 |
| Air Pressure (kg/cm2 psi) | 4~6 |
| Power consumption (a) | 5A |
| Voltage (V) | 220V Single Phase |
| Max. Printing Area (mm) | 300x300 |
| Left and Right Stroke (mm) | 400 |
| Peel Off Height (mm) | 0~150 |
| Max. Screen Stencil Size (cm) | 50*72 |
| Stencil Frame Front and Back Fine Tune Distance (mm) | ±25 |
| Object Position Left and Right Fine Tune Distance (mm) | ±8 |
| Object Position Front and Back Incline | 10°/50 |
| Independent Squeegee Set Lifting Distance (mm) | |
| Machine Weight | 180KG |
