1-Color Pad Printing Machine
Single-Color Ink Cup Pad Printer
- Features
- The pad printing machine uses a servo motor drive, ensuring precision and stability.
Description
Ink Cup pad printing machine use servo motor driven rotation plate – multi-angle rotation.depressurized to fix the substrate – to avoid deformation from mechanical clamping. pad printer able to set the number of times which Pad-Print Printing is used, and it will automatically stop and display inform when the number is arrives.

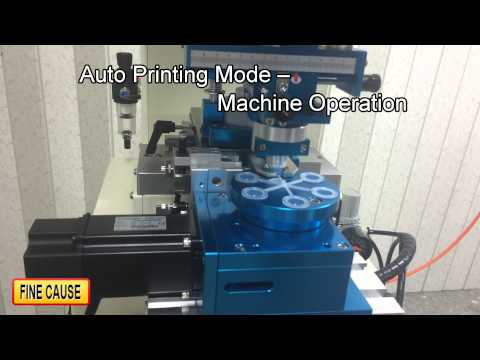

FC-161ARC-S6 Single-Color Ink Cup Pad Printer
Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.
■ Features :
-
pad printing machine use Electric Air Pressure Sensor
-
Servo Motor Driven Rotation Plate – Multi-Angle Rotation
-
Depressurized to fix the substrate – To avoid deformation from mechanical clamping
-
Ink Cup Pad Printer use 7.0" HMI touch panel with 65536 color TFT, built-in Chinese, English and Bahasa language.
-
Input & output full display
-
Abnormal warning display, convenient for quickly eliminate abnormalities
-
Digital pressure sensor, automatic alarm display for insufficient air pressure
-
Able to set the number of times which Pad-Print Printing is used, and it will automatically stop and display inform when the number is arrives.
-
-
PLC Programmable Logic Controller easy to add and modify function
-
Malfunction Detector – Message Displayed on Screen
-
Sheet Metal + Powder Coating Machine Body (Patent No. M456283)
-
Adjustable Ink-Scraping Pressure (Patent No. 311585)
Specifications
| Model | FC-161ARC-S6 |
|---|---|
| Color | 1 |
| index Plate size(mm) | |
| Cycles/hr | 1200~1800 Pcs |
| Machine Size (cm) | L:70 W:40 H:135 |
| Weight | 115 KG |
| Pressure(kg/cm2 psi) | 4~6 |
| Power (A)Ampere | 10 |
| Voltage (V) | 220V |
| Max. Printing Area(mm) | 55 |
| Max. Height of Printed Object(mm) | 180mm |
| Height -Pad Stand to Steel Plate(mm) | 100 |
| Max. Steel Plate Size(mm) | L:200 W:90 H:10 |
