Flat surface screen printer(dual axle servo motor )

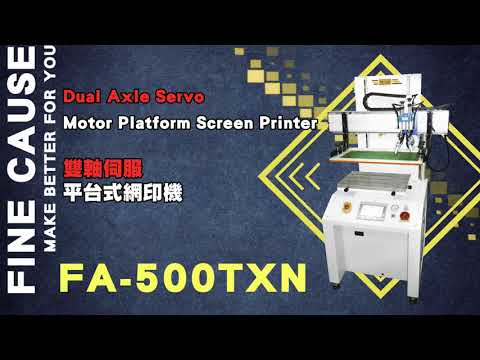

Flat surface screen printer(dual axle servo motor )-FA-500TXN



▲ The up/down 2-stage speed change in the video is the program modification for customized requirement. It is not the standard program setup of FineCause machine.

Fine Cause's Silk screen printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring

■ Flat surface screen printing machine fmachineeature:

• Flat screen printer adopts a magnetic squeegee clip (Patent No. M390871) makes the squeegee position can be slided easily and is simple to adjust and disassemble.

• The squeegee downward pressure is controlled by stepper motor, enabling fine adjustment of the downward distance. This setup is specifically designed for advanced screen printing applications.

• Vertical servo lifting versus traditional lifting - fast/slow.

  • The screen stencil lifting adopts servo motor, allowing precise adjustment of the snap-off distance, making the production process more systematic.

  • Adjustable vertical servo lifting and drop speed at specific position.

  • Traditional (manual) lifting usually results in deviation of squeegee height.

  • Servo lifting mechanism gives convenient cleansing space.

  • Manual lifting squeegee may cause ink flooding out of stencil screen

  • Printing and screen stencil (dual axle) lifting.

  • Adopted servo motor with linear guideway and ball screw.

• This  flat surface screen printing machine adpots 7.0 inches multicolor color touch screen with TFT;The man-machine interface can be easily switched to select the language:English, Indonesian, Vietnamese ,Thai andTraditional Chinese.

  • Input/output sensors set and marked at all stations.

  • Error alerted by scrolling text - can be easily resolved by operators.

  • Electronic air pressure sensing - automatic alert at low air pressure.

  • Able to set printing pad and cliché plate usage count, machine stops and alerts when set usage count has been achieved.

  • This semi-automatic flat screen printing machine features dual-axis servo motors. The dual-axis servo system enables precise movement in both vertical and horizontal directions, enhancing accuracy. Adjustments can be made digitally through the HMI. The higher the left-right printing speed value, the faster the movement—up to a maximum of 999 mm per second.

  • Digital adjustments via the HMI are precise and fast, with the ability to save settings for quick switching—no need to reconfigure every time.

• Adopted programmable logic controller - easy to set functions and operations.

  • Pneumatic cylinder rotation speed displayed on monitor.

  • Multiple sets of formula storage and parameter settings.

• This flat surface screen printer has production record: built-in smart bar chart displays machine .productivity, operating time, production rate, etc. in the past 30 days.

• This flat surface screen Printing equipment has WIFI function, which can combine with FINECAUSE APP to check the machine productivity anytime and anywhere.

Specifications

【FineCause Advantage】

FineCause is professional silk screen printing machine, servo screen printing machine,flat surface screen Printing equipment, semi automatic screen Printing equipment, semi automatic screen printer and automatic silk screen printing machine manufacturer.

FineCause have imported Servo motor ink scarping system in 2016, component production adopted extrude integrally molded. Currently have the best price among whole Taiwan servo motor screen printer manufacturers.

FineCause silk screen printer already have a foothold and good reputation in Taiwan. We have a professional team to provide service at any time, please feel free to contact us if you’re interest to our machine or be our distributor.
