Screen Printing Machine by Dual-Axis Servo

The advantages of a dual-axis servo screen printing machine:

• High precision printing: The dual-axis servo system provides exceptional positioning accuracy and motion control capability, enabling the screen printing machine to precisely control its movements during the printing process; thus, achieving high-precision printing.

• High-precision printing can improve production efficiency, especially for large-scale printing applications, as it helps save time and costs.

• Stability and reliability: The dual-axis servo system possesses excellent stability and reliability, enabling it to maintain high-precision motion control during extended periods of operation. This reduces the chances of deviations or malfunctions during printing, ensuring consistent printing quality.

Why choose a dual-axis servo screen printing machine?

• Higher printing quality: The dual-axis servo system's high precision control ensures the stability and consistency of printing quality. Fine lines can achieve superior printing results throughout the printing process.

• Higher production efficiency: High-speed printing is a significant advantage of the dual-axis servo screen printing machine, enabling a substantial increase in production efficiency and reducing printing costs. This is especially appealing to enterprises engaged in large-scale production.

• Stronger reliability: The dual-axis servo system's stability and reliability contribute to the printing machine's reduced likelihood of experiencing malfunctions or deviations during extended periods of operation. This decrease in downtime enhances production stability.

• Choosing a dual-axis servo screen printing machine can enhance printing quality, production efficiency, and stability, making it a worthwhile consideration for the modern printing industry.

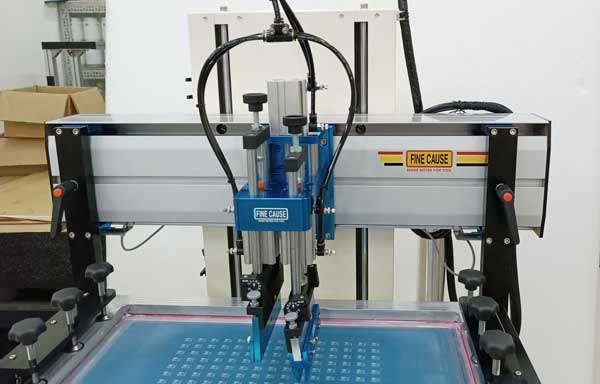

Screen Printing Machine by Dual-Axis Servo -FA-300TXN

(Shaft Bushing Type)

• The dual-axis servo system enables precise movement in both vertical and horizontal directions, enhancing accuracy. Adjustments can be made digitally through the HMI. The higher the left-right printing speed value, the faster the movement—up to a maximum of 999 mm per second.

  • Digital adjustments via the HMI are precise and fast, with the ability to save settings for quick switching—no need to reconfigure every time.

• Magnetic squeegee clip (patent no. M390871)

  • The squeegee position can be easily slide, making adjustments or disassembly effortless.

• The screen printing machine utilizes a pneumatic squeegee seat assembly for linear elevation.

  • The squeegee downward pressure is controlled by stepper motor, enabling fine adjustment of the downward distance. This setup is specifically designed for advanced screen printing applications.

  • Linear lifting can prevent squeegee height from deviation.

  • Linear lifting can prevent ink from flowing out of the screen stencil, which may occur on manual lifting of the squeegee.

  • Make the screen stencil cleaning more convenient and fast.

• Printing and screen stencil lifting (dual-axis)

  • The screen stencil lifting adopts servo motor, allowing precise adjustment of the snap-off distance, making the production process more systematic.

  • Printing adopt servo motor and linear guideway with ball screw rod.

  • Screen stencil lifting adopt servo motor with shaft bushing.

  • The servo linear lifting can be set to reduce the speed of lowering or raising the screen stencil at specific positions.

• The screen printing machine adopts 7" HMI (65536 color TFT touch interface) and built in 5 languages, Traditional Chinese, English, Indonesian, Vietnamese, and Thai.

  • With I/O (input/output), each sensor location is shown in whole area of the machine.

  • Abnormal alarm display is convenient for operator to quickly eliminate abnormalities.

  • Electronic air pressure sensing will alarm automatically for insufficient air pressure.

  • The screen stencil usage times can be set. When the set value reaches, the machine will automatically stop and alarm.

• Production history function: Built-in smart bar chart that the productivity, operation time, production speed, etc in the past 30 days can be shown.

  • With WIFI function, if to connect with FineCause smart factory APP, no matter where you are, you can view the machine productivity report anytime and anywhere.
