Screen Printing Equipment-Dual-Axis Servo Motor with Suction Function

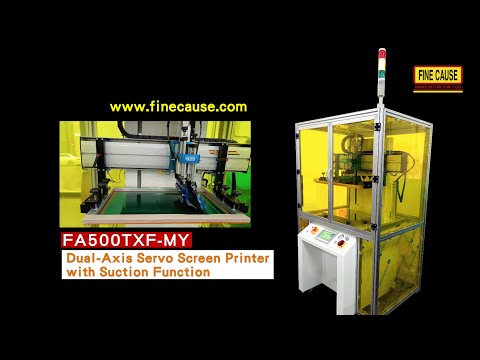

FA-500TXF-MY Screen Printing Equipment-Dual-Axis Servo Motor with Suction Function



• Precision Servo Mechanism

  • Squeegee printing stroke and screen stencil lifting adopt servo motor + linear guide rail + ball screw structure

  • Ensures high positioning accuracy and stable movement, fully optimizing printing quality

• Comprehensive Safety Protection Design

  • Equipped with a transparent PVC dust cover to effectively block airborne particles and dust

  • Light curtain sensors on both sides of the machine prevent hand-clamping accidents, ensuring operator safety

• Customized Suction Positioning Table

• • Equipped with a pin-lift table, with a suction positioning system tailored to the customer's product characteristics

  • Enhances jig stability and precise positioning, improving overall printing efficiency

• High-Efficiency Touchscreen Interface

  • 7" color touchscreen with intuitive, user-friendly operation

  • Abnormal conditions displayed in real-time via marquee alerts to assist in quick troubleshooting

• Highly Flexible PLC Control System

  • Utilizes a programmable logic controller (PLC) with strong expandability

  • Supports servo slider speed setting and display

  • Built-in multiple parameter memory for quick switching between product settings

• Patented Magnetic Squeegee Clamp (Patent No. M390871)

  • Adjustable sliding squeegee position, quick disassembly, and more flexible, time-saving adjustments

• Pneumatic Squeegee Holder Lifting Design

  • Adopts vertical linear lifting to replace the traditional manual tilting method

  • Effectively prevents squeegee height deviation, ensuring consistent printing quality

  • Simplifies screen cleaning, reducing ink leakage and contamination risks

• Multi-Language Operating System

  • Built-in five languages: English, Traditional Chinese, Indonesian, Vietnamese, and Thai

  • Ideal for multinational production lines, with one-touch switching

• Production History & Data Tracking

  • Built-in smart chart records the last 30 days of production capacity, operating time, printing speed, etc

  • Facilitates production tracking and management

• Smart Factory APP Function (Optional)

  • Allows remote monitoring of machine operation and production data via mobile phone or tablet

  • Helps enterprises implement smart factory management

Specifications
