1-Color Pad Printing Machine

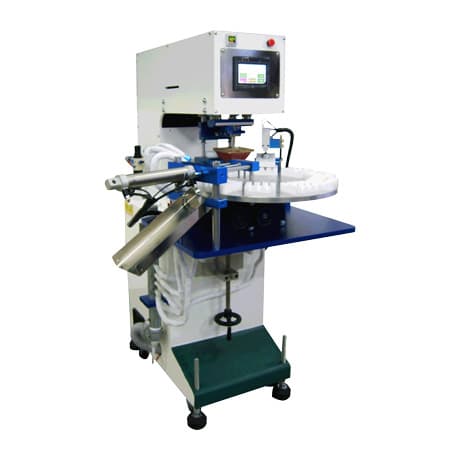

Rotating table pad printer(Auto Positioning fixture/Auto Discharge System)
FC-191ARC-1
- Features
- Dryer Equipped, Enhance evaporating and drying the ink
- Auto discharge system with Rail
Description
This rotary table pad printing machine is equipped with Auto Positioning structure. Objects could placed randomly and the positioning device will push into the correct position. Client can choose paid add additional peripheral devices like suction function, pressing material, pusher positioning, automatic ejector mechanism, industrial camera, blow dryer shelf and so on.
Rotating table pad printer(Auto Positioning fixture/Auto Discharge System)-FC-191ARC-1
Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.
■ Rotary table pad printing machine feature :
-
Precise Splitter - Precise Positioning (+-0.03mm)
-

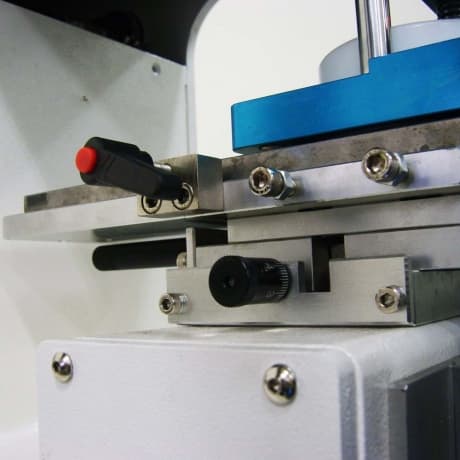

Exclusive Patented "Adjustable Ink-Scraping Device" (Patent No. M311585). Adjust Scraping Pressure Easily
-
Electronic Pressure Sensor
-
Programmable Logic Controller, 7 inches/ 65536 Color TFT Touched Panel
-
Malfunction screen display
-

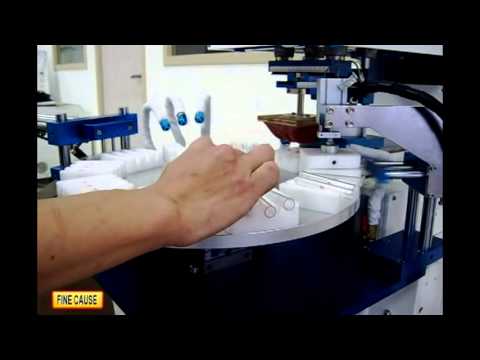

Auto Positioning structure. Objects could placed randomly and the positioning device will push into the correct position
-

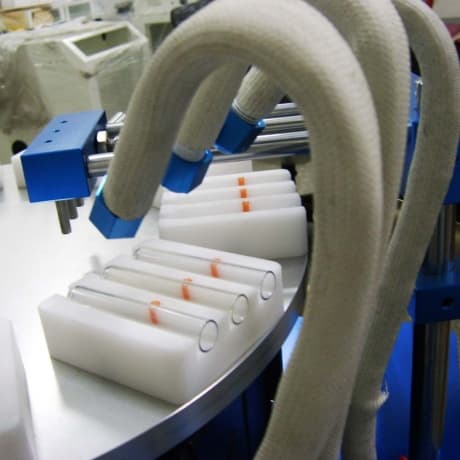

Dryer Equipped, Enhance evaporating and drying the ink
-

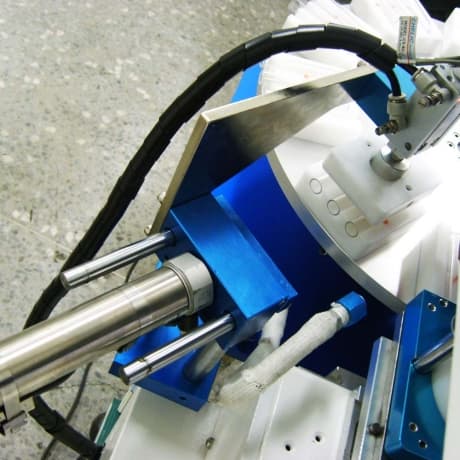

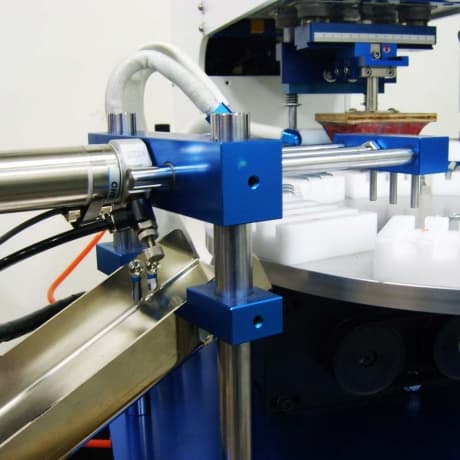

Auto discharge system with Rail
-

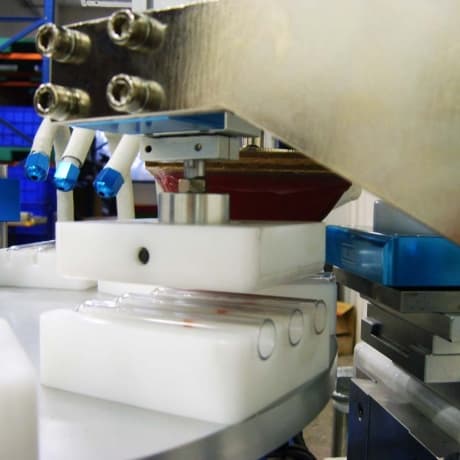

Auto Positioning fixture
Specifications
| Model | FC-191ARC-1 |
|---|---|
| Color | 1 |
| index Plate size(mm) | 400 |
| Cycles/hr | 1200~1800 Pcs |
| Machine Size (cm) | L:110 W:100 H:135 |
| Weight | 160 Kgs |
| Pressure(kg/cm2 psi) | 4~6 |
| Power (A)Ampere | 10 |
| Voltage (V) | 220V |
| Max. Printing Area(mm) | 85 |
| Max. Height of Printed Object(mm) | 180mm |
| Height -Pad Stand to Steel Plate(mm) | 100 |
| Max. Steel Plate Size (mm) | L:240 W:120 H:10 |
