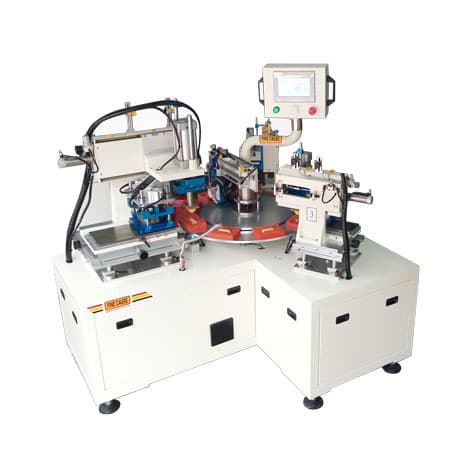

Rotary table pad printing machine by 3-color Ink Cup

Rotary table pad printing machine by 3-color Ink Cup -FC-192&211-BRC-TM



Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.

■ Rotating table pad printer feature :

• Pad printer use manual feeding, full automatic printing

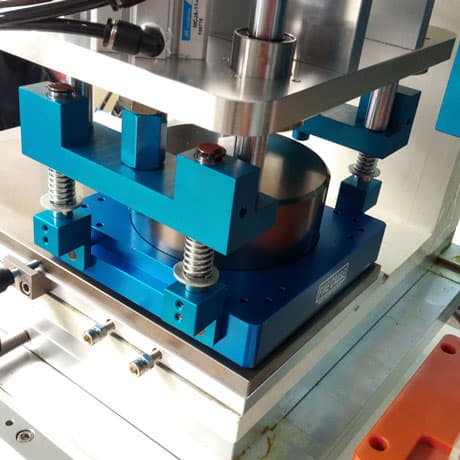

• The pad printing machine accepts various height of object because of the adjustable lift

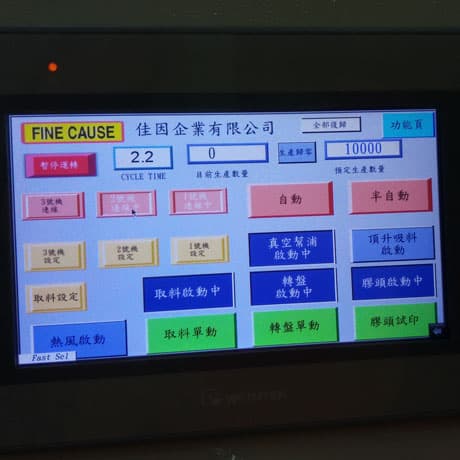

• 7.0" HMI touch panel with 65536 color TFT, built-in Chinese, English and Bahasa language.

  • Input & output full display

  • Abnormal warning display, convenient for quickly eliminate abnormalities

  • Digital pressure sensor, automatic alarm display for insufficient air pressure

  • Able to set the number of times which Pad-Print Printing is used, and it will automatically stop and display inform when the number is arrives.

• PLC Programmable Logic Controller easy to add and modify function

• Programmable Logic Controller - easy to set functions and operations

• High precision platform + camshaft indexer (9 indexes)

• Hot air blower

• Photoelectric automatic blower

• Vacuum device

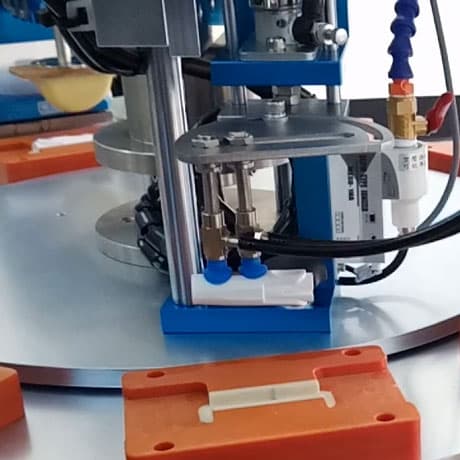

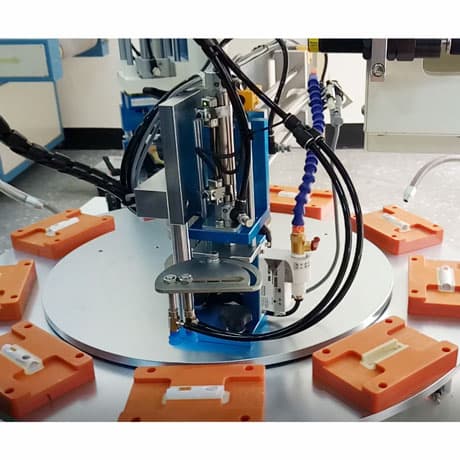

• Rotary pneumatic output robot arm (adjustable positioning according to input position)

• Material positioning fixture (single unit size)* 9 pcs.

Specifications
