Rotary Plasma Surface Treatment Machine (Flat and Curved Shapes Shared - Servo)

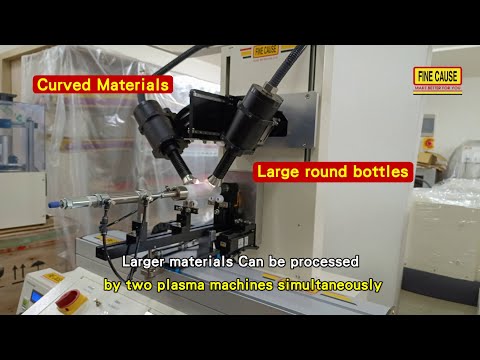

A video of the rotary plasma surface treatment machine in operation.

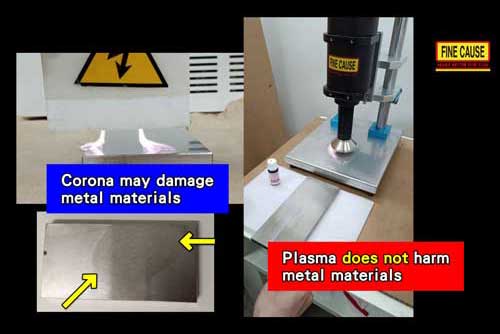

Difference between plasma machine and corona machine

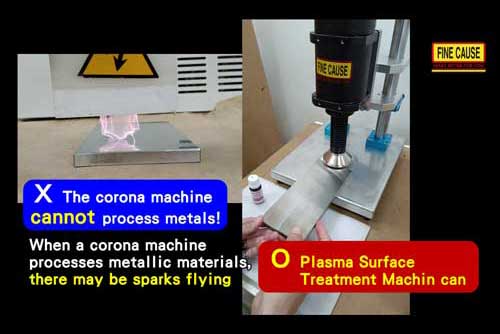

The corona machine cannot process metals!

When a corona machine processes metallic materials, there may be sparks flying, which is more dangerous and can cause damage to the metal materials.

Metallic material surface treatment requires the use of a plasma treatment machine.

Advantages of plasma treatment machine:

Plasma treater surface treatment: Suitable for various materials including metal, ceramic, glass, PVC, paper, and plastic.

Functions include:

• 1. Significantly improves the wetting performance of the surface, forming an active surface.

• 2. Remove dust and oil stains, finely clean and remove static electricity.

• 3. Improve the adhesion ability of the printing surface.

FAFP02-SLG Rotary Plasma Surface Treatment Machine (Flat and Curved Shapes Shared - Servo)

Features, main configuration, and advantages:

Servo sliding table and servo rotating mechanism

• Supports flexible settings: Precise digital settings through the HMI.

  • Cylindrical bottles: 1. Preparation angle, 2. Start processing angle, 3. End processing angle, 4. Rotating speed, 5. Rotation processing times/cycles, 6. CW and CCW rotation selection

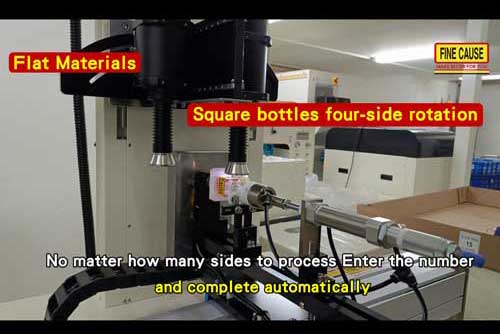

• Regular polygon bottles: 1. Preparation position, 2. Start processing position, 3. End processing position, 4. Lateral processing speed, 5. Processing count, 6. Number of sides

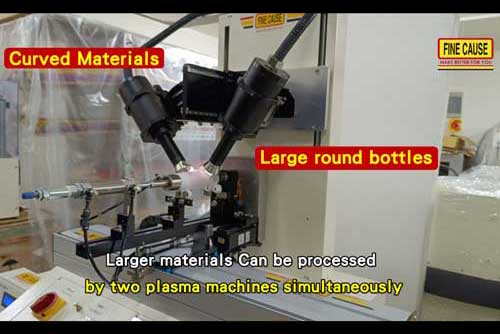

  • Can process various bottle shapes, including cylindrical bottles, rectangular bottles, and regular polygon bottles (such as square, pentagon, etc.), and can also perform single-side processing.

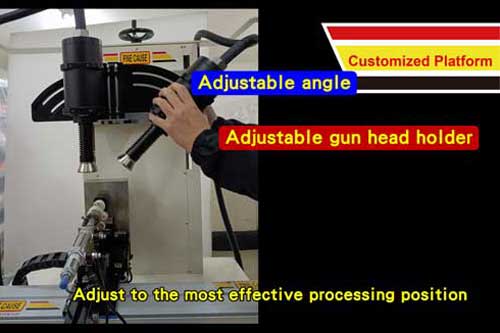

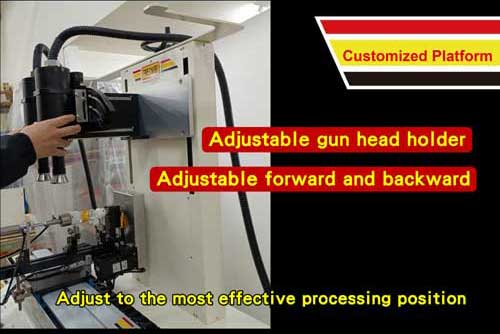

Adjustable gun head holder

• Adjustment range includes: 1. Angle, 2. Height, 3. Forward and backward position, adjusted to the most effective processing position.

Handwheel adjustment of nozzle height

• Suitable for containers of different sizes, with precise adjustment of the processing position.

Jig with bottle clamping cylinder device

• The horizontal adjustment mechanism ensures the container is securely fixed and guarantees efficient handling of the maximum surface area.

o Includes: 1. Round bottle jig, 2. Square bottle jig.

Dual-side plasma machine frame

• The machine is equipped with wheels for easy movement between production lines.

PLC system and HMI

• Supports multiple languages: Traditional Chinese, English, Indonesian, Vietnamese, and Thai.

• Equipped with a formula memory function, allowing for preset processing parameters for various materials, simplifying the operation process, and enabling quick switching between different materials with one click.

Specifications
