Plasma Processor (3-axis Platform)

The XYZ 3-axis motion platform ensures uniform treatment



FMPT-XYZ XYZ-Plasma Processor (3-axis Platform)

Features of XYZ 3-axis gantry motion platform

• Dual guide rail structure.

  • High wear resistance, long lifespan, ensuring stable operation.

• Maximum load capacity is 10kg.

  • Ideal for efficiently processing a wide range of products.

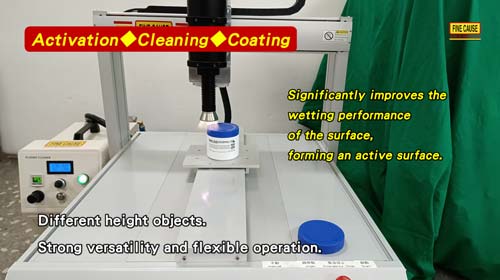

• Strong versatility and flexible operation.

  • Can be paired with multiple products, meeting various needs.

• Supports multiple motion modes.

  • Point, line, arc, curve, multi-segment line, spiral, and ellipse, enabling flexibility for different demands.

• Control method: Handheld box.

  • Simple and easy to use, convenient for operation.

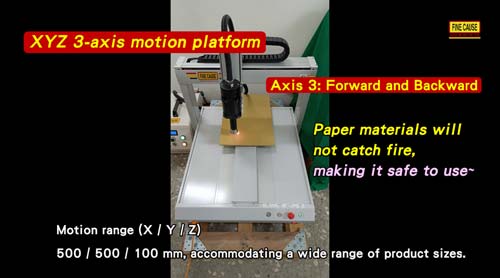

• Motion range (X/Y/Z).

  • 500/500/100 mm, accommodating a wide range of product sizes.

• Can be upgraded to a multifunctional production system.

  • Supports easy installation of automation components to achieve more capabilities.


Main effects of plasma treatment

1. Activation

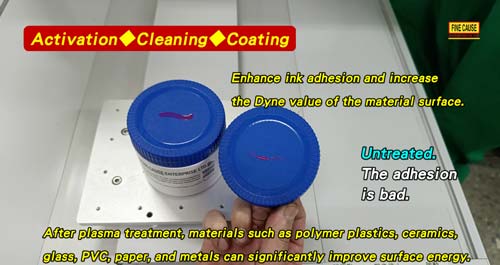

• Significantly improves the wetting performance of the surface, forming an active surface.

2. Cleaning

• Remove dust and oil stains, finely clean and remove static electricity.

3. Coating

• Improve the adhesion ability of the surface, provide a functional surface, and improve the reliability and durability of surface bonding.


For more detailed information about plasma treatment machines, please click here.

Application range

• After using atmospheric pressure plasma technology for treatment, surface energy can be improved for various materials such as polymer plastics, ceramics, glass, PVC, paper, or metals.

  • Through this treatment process, the improvement of surface tension characteristics of product materials can be more suitable for industrial coating, bonding and other treatment requirements.

• Plasma machine design

  • Compact size with a handle design for easy carrying and mobility.

  • Saves space, suitable for flexible deployment in various settings.

F1Z-1000-Plasma Surface Treatment Machine (Rotating Gun)

• Efficient activation performance:

  • Significantly improves the wetting performance of the surface, forming an active surface, which is helpful for subsequent coating and bonding.

• Outstanding cleaning effects:

  • Remove dust and oil stains, finely clean and remove static electricity, making it suitable for applications requiring high cleanliness levels.

• Enhanced coating adhesion:

  • Through surface treatment, enhances adhesion ability, increases the reliability and durability of surface bonding, suitable for industrial coating and bonding processes.

  • As a surface treatment prior to printing, it enhances the adhesion of ink.

• Multi-functional surface treatment:

  • Enhances surface energy and improves surface tension characteristics for various materials such as polymers, ceramics, glass, PVC, paper, and metals, meeting diverse industrial needs.

• Gentle processing:

  • Utilizing low-temperature plasma technology, breaks chemical bond of molecules on the surface of materials to enhance chemical reactivity without affecting substrate performance, suitable for treating heat-sensitive high polymer materials.

• Wide range of applications:

  • Commonly used for surface pre-treatment before printing, hot stamping, adhesion, and dispensing to clean the surfaces of various materials, modify surface activity, and enhance adhesion.

  • Applicable to electronic products, such as the coating pre-treatment of LCD screens, the surface treatment before screen printing of structural components such as casings and buttons, the cleaning of PCB surfaces, the treatment before adhesive bonding of lenses, the treatment before wire and cable coding, etc.

  • Treatment before pasting the lampshade, brake pad, and door sealing strip of automotive industrial vehicles.

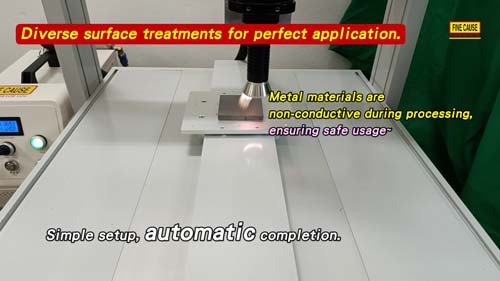

  • Cleaning treatment for metal components in the mechanical industry, treatment before mirror coating, and treatment before sealing between various industrial materials.

  • The treatment before gluing the edge sealing position in printing, packaging, and box pasting machinery.

  • In the medical device industry, the treatment before adhesive bonding between needles and plastic catheters.

• Precisely controlled 3D surface modification:

  • Utilizing low-temperature plasma flow treatment technology to achieve three-dimensional object surface modification, providing uniform and stable treatment effects.

• No need for startup time, ready to use immediately, can be started and stopped at any time.

Simple and intuitive switch and button operation.

Specifications
