1-Color Pad Printing Machine
Large Pad Printing Equipment with servo ink cup
- Features
- The pad printing machine customized 800 mm long stroke mechanism
- The machine body is made of SUS304 stainless steel.
Description
Medical-grade special pad printer, the body of the equipment is made of SUS304 stainless steel, Horizontally mobile jig maechanism (activated by motor), with Replaceable fixture, printing is accurate and fast, the left and right ovens alternate, the temperature and time are adjustable, Fast drying
FC-291CCC-BSMD-Large Pad Printing Equipment with servo ink cup
Fine Cause's pad printing machine imported to industrial I.O.T., combine smart factory App, assist you to implement production management goals through synchronous monitoring.
■ Feature :
-
7" human machine (65536 colors; resolution 800*480; TFT touch interface)
-
Programmable Logic Controller enables simple settings.
-
Horizontally mobile jig maechanism (activated by motor)
-
Customized 800 mm long stroke mechanism
-
Air dry device (can reach 100 degrees celsius)
-

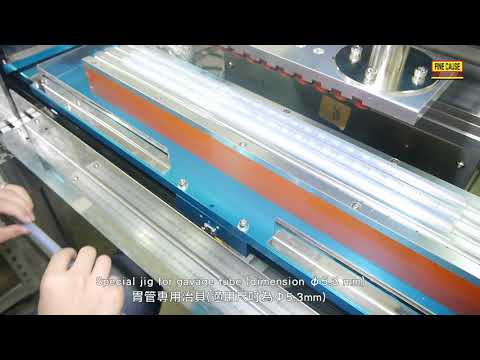

Special jig for gavage tube (dimension φ5.3 mm),Replaceable fixture.
-
Ink cup dimension (mm): 120; cliche dimension (mm): 120* 760
-
Exclusive patented ink cup mechanism (R.O.C. patent No. M311585)
-
SUS304 stainless steel machine outer casing
-
Eletricity: 220V / 10A / three-phase eletrical power
Specifications
| Machine | FC-291CCC-BSMD |
|---|---|
| Color | 1 |
| Steel Plate Size (mm) |
L:760 W:120 H:12 |
| Cycles/hr | 180~300 Pcs |
| Machine Size (cm) | L:134 W:334 H:162 |
| Weight | 500 KG |
FineCause is professional ink cups and ink plate pad printing machine, servo pad printing machine, custom pad printer manufacturer.
